Specifications
Brand Name :
Jinwang
Model Number :
TN-12-2H
Certification :
CE, ISO9001
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1 set per month
Delivery Time :
15-90 Working Days
Packaging Details :
Wooden Case Packing
Capacity :
≥12000 BPH
Label Size :
H 50-180mm L 50-300mm
Labeling Accuracy :
±1mm
Weight :
~750Kg
External Dimension :
2290×2070×2430mm(L×W×H)
Applicable bottle diameter :
H 50-180mm L 50-300mm
Description

TN-12-2H Rotary High Speed Labeling Machine

1.Introduction

TN-12-2H rotary high-speed labeling machine adopts high-speed rotary double labeling table station labeling, including the lack of labeling detection function, labeling without stopping. Stable operation, accurate positioning, high capacity.

It is suitable for single side and full circumference self-adhesive labeling of various round containers.

High iron shape, high grade, strong visitability, enhance the company's brand influence!

TN-12-2H Round Bottle Rotary High Speed Labeling Machine 12000 BPH

2.Machine Dimension

TN-12-2H Round Bottle Rotary High Speed Labeling Machine 12000 BPH

3.Technical Parameters

1 Labeling speed

≥12000 BPH

*Actual capacity varies according to product size, package material, material characteristics, etc.
2 Bottle Diameter Φ(40-90)*(80－250)mm
3 Label size H 50-180mm L 50-300mm
4 Labeling precision ±1mm *Labeling accuracy varies according to material and label material.
5 Inner diameter of label roll Φ75±2mm
6 Maximum label roll outer diameter Φ340mm
7 Power Supply ~380V 50Hz/4.5KW
8 Machine Size 2290×2070×2430mm(L×W×H)
9 Weight ~750Kg

4.Electrical Configuration

No. Name Brand
1 PLC Schneider
2 Touch Screens Schneider
3 Inverter Schneider
4 Servo System Schneider
5 Fiber Optic Amplifier Sick
6 Switching Power Supply Schneider

5.Advantage

5.1 Data: the whole line running status and data are presented in real time, which is clear at a glance, and the production data are dynamically displayed in real time, which is convenient for production management. The equipment is equipped with three-color light band, green running, blue standby, red shutdown alarm.

TN-12-2H Round Bottle Rotary High Speed Labeling Machine 12000 BPH

5.2 Dual labeling table configuration (lack of label detection function, no downtime to change labels, improve production efficiency. Automatic labeling function (automatic label switching during normal operation, no need for human intervention).

TN-12-2H Round Bottle Rotary High Speed Labeling Machine 12000 BPH

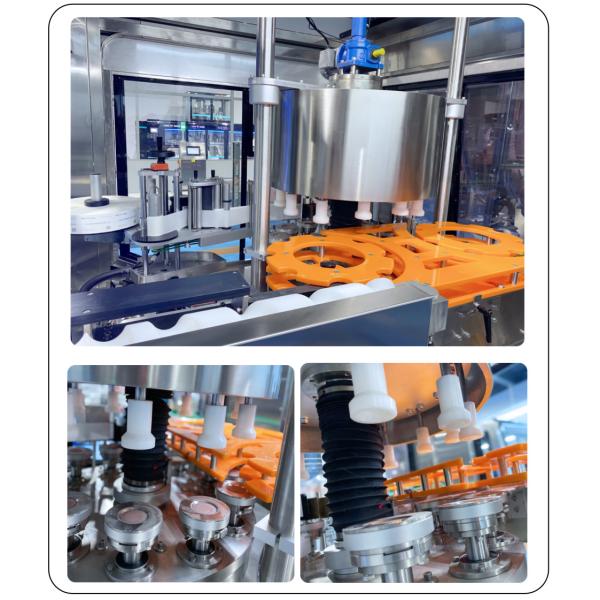

5.3 Internal cam drive: the main drive and the main components are designed as cam drive, the overall running stability of the equipment is high.

TN-12-2H Round Bottle Rotary High Speed Labeling Machine 12000 BPH

5.4 Bottle feeding screw, in and out of the bottle star wheel design quick-fit form, easy to adjust.

TN-12-2H Round Bottle Rotary High Speed Labeling Machine 12000 BPH

5.5 The whole machine electric control system adopts French Schneider configuration, integrated electric control system, more stable and reliable, safe, green, low energy consumption.

5.6 All transmission places are equipped with clutch limit protection switch, in and out of the bottle star wheel appears to jam the bottle or spindle torque overload automatic clutch and shutdown alarm, to protect the equipment from damage and enhance the service life.

5.7 The height adjustment mechanism driven by motor is directly completed in the touch screen, fast and convenient.

TN-12-2H Round Bottle Rotary High Speed Labeling Machine 12000 BPH

6.Support and Services:

Labeling Machine Technical Support & Services

Our technical support and services for the Labeling Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.

We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.

If you ever have any questions or concerns about the Labeling Machine our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.

6.Packing and Shipping:

Packaging and Shipping

The Labeling Machine will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.

7.FAQ:

Q1: What is the Brand Name of the Labeling Machine?
A1: The Brand Name of the Labeling Machine is JWIM.
Q2: What is the Model Number of the Pesticide Labeling Machine?
A2: The Model Number of the Bag Packing Machine is TN-12-2H.
Q3: Where is the Labeling Machine manufactured?
A3: The Labeling Machine is manufactured in China.
Q4: Does the Labeling Machine require special maintenance?
A4: The Labeling Machine requires regular maintenance to ensure proper operation.
Q5: What is the capacity of the Labeling Machine?
A5: The capacity of the Labeling Machine is determined by the size of the container to be filled.
