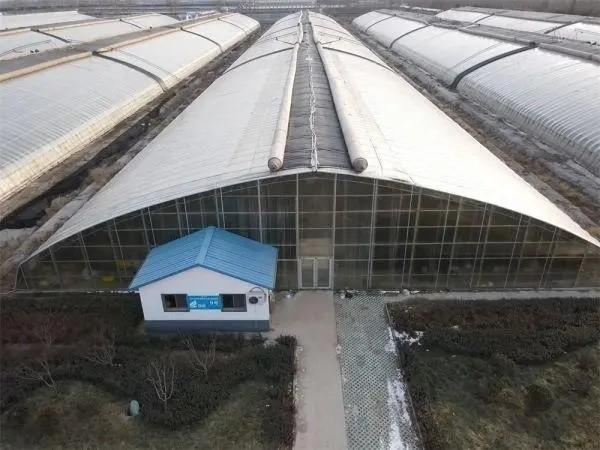

Double Arch Double Film Solar Greenhouse

Enhance your agricultural productivity with the Double Arch Double Film Solar Greenhouse from Qingzhou Juxiang Agricultural Equipment Co., Ltd. This innovative greenhouse design allows for more light penetration, increased volume capacity, and superior climate control, ensuring optimal growing conditions for your crops.

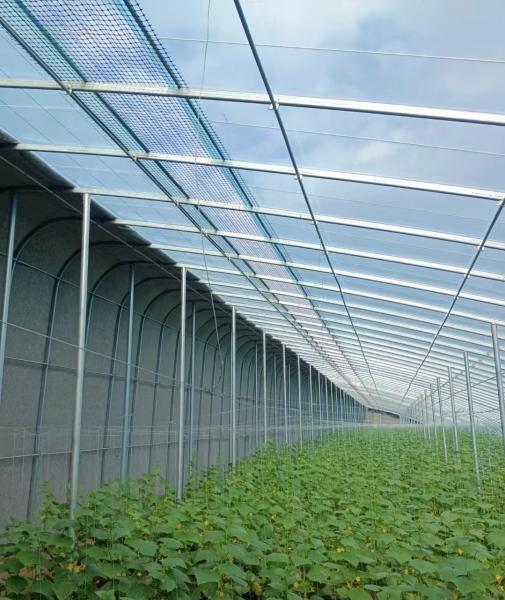

1. Double frame. The greenhouse skeleton is divided into two layers inside and outside, the outer skeleton is covered with a transparent shed film, the inner skeleton is covered with a waterproof insulation shed film and thermal insulation curtain, and the rolling machine and rolling film machine are installed between the double skeleton to facilitate thermal insulation and the lighting is good, which is conducive to winter heating.

2. Multiple layers of insulation. The greenhouse insulation layer is increased from 2 to 4 layers of the ordinary greenhouse, and the greenhouse curtain and the inner layer film cover the inner layer trellis at night, which plays the role of heat preservation and cold protection.

3. Ventilate front and rear. The greenhouse vents are arranged in front and back, the front vents are arranged in the front end of the outer skeleton, and the rear vents are arranged in the back slope of the outer skeleton, which is convenient for ventilation and cooling.

4. Mechanical and manual curtain rolling. The greenhouse straw curtain is rolled with a rolling machine, and the inner curtain film is rolled with a rolling machine. The rolling machine and the rolling machine adopt a wireless remote control system to control the rolling and releasing. At the same time, the rolling machine and the rolling film machine also have a manual rolling and releasing device.

Product Description: Double-Arch Double-Film Energy-Saving II Greenhouse

Experience superior temperature control with the Double-Arch Double-Film Energy-Saving II Greenhouse from Qingzhou Juxiang Agricultural Equipment Co., Ltd. This innovative greenhouse boasts numerous advantages:

• 1. Achieve a minimum air temperature 3-5 ºC higher than traditional energy-saving greenhouses.


• 2. Effortlessly manage snowfall with automatic snow removal, eliminating manual clearing and preventing greenhouse collapse.


• 3. Enhance light transmission without compromising thermal insulation, resolving long-standing issues in solar greenhouses.


• 4. Ensure efficient rain drainage with strategically placed tuyeres, preventing water accumulation.


• 5. Extend the lifespan of the greenhouse curtain to over 6 years, reducing costs by over 50% and saving on labor.


• 6. Enhance snow resistance by distributing pressure evenly across internal and external trellises.

Upgrade your agricultural operations with the Double-Arch Double-Film Energy-Saving II Greenhouse for unparalleled efficiency and durability.

Customization Options by Qingzhou Juxiang Agricultural Equipment Co., Ltd.

• Internal Sunshade: Install a sunshade net inside the greenhouse for smooth running, high control accuracy, and easy maintenance.


• External Sunshade: Prevent crop damage from strong light with a top sunshade net, reducing indoor temperature by 4-6 °C.


• Cooling Fan: Ensure proper moisture ventilation for optimal crop growth.


• Cooling Pad: Utilize evaporation cooling for effective temperature control.


• Drip Irrigation System: High water-saving and yield-increasing effects, with the option for combined fertilization.


• Mobile Sprinkler Irrigation: Efficient and water-saving method for irrigation.


• Fertilization System: Save fertilizer, improve water use efficiency, and enhance crop yield and quality.


• Heating System: Uniform heat dissipation and excellent insulation.


• Mobile Seedbed: Manual drive for simple operation and moisture-proof design.


• Growth Light: LED growth lights for precise plant growth control.

Enhance your greenhouse with these customizable options from Qingzhou Juxiang Agricultural Equipment Co., Ltd.

External Shading System

External Shading System

The External Shading System by Qingzhou Juxiang Agricultural Equipment Co., Ltd. is designed to provide shade and cooling during the summer months. This system effectively diffuses sunlight into the greenhouse, preventing crops from being damaged by intense light and reducing heat buildup by blocking excessive light entry. It is also UV and hail resistant, minimizing damage to the greenhouse structure.

Customizable shading rates allow for tailored light exposure based on the specific sunlight requirements of different crops, ensuring optimal growth conditions.

Inner Shading System

Company Name: Qingzhou Juxiang Agricultural Equipment Co., Ltd.

• Anti-fog and Anti-drip: The inner sunshade system creates two independent spaces in the greenhouse, effectively preventing fog and dew formation.


• Energy-saving Insulation: During winter and at night, the system retains internal heat, reducing energy consumption and operating costs.

Heating System

Our heating system, developed by Qingzhou Juxiang Agricultural Equipment Co., Ltd., eliminates the issues of uneven combustion, opaque combustion, flue gas overflow, and local burning loss commonly associated with traditional furnaces. Using positive pressure multistage circulation heat transfer technology, our system ensures complete heat exchange in every corner, providing a more comfortable and warm breeding environment. The unique dual fan forward-looking design not only saves energy but also provides a reliable backup.

Cooling System

The cooling system of our product consists of a wet curtain and a fan. The wet curtain operates on the principle of "water evaporation absorbs heat" to effectively cool the surrounding area. The fan frame is crafted using advanced automatic processing technology, ensuring high precision and durability. With an extra thick galvanized layer, the frame offers strong corrosion resistance, enhancing the overall cooling efficiency.

Company Name: Qingzhou Juxiang Agricultural Equipment Co., Ltd.

Internet of Things Greenhouse System

The Internet of Things Greenhouse System by Qingzhou Juxiang Agricultural Equipment Co., Ltd. utilizes radio frequency identification technology and wireless data communication technology to create a physical Internet for real-time global item information sharing. This innovative system integrates the power of the Internet to revolutionize greenhouse development.
