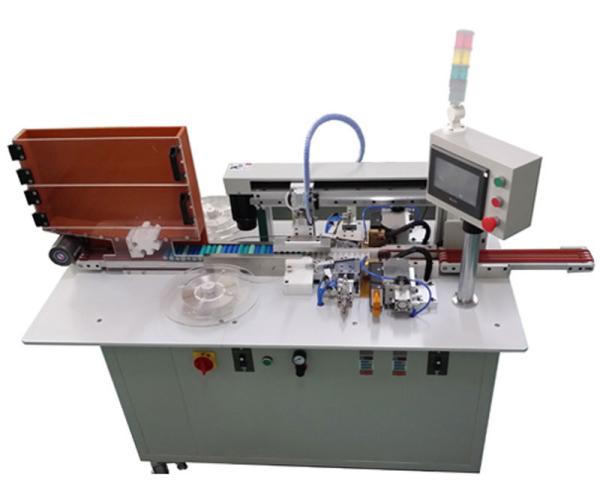

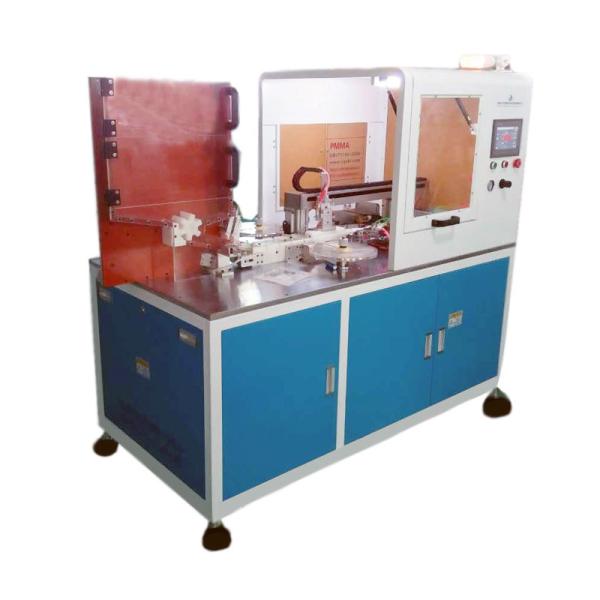

TWSL-300 18650 Mobile Power battery pack automatic welding systems, the company is based on the current majority of increasingly fierce competition in the field of lithium battery production, continue to claim control costs, improve quality and efficiency in the case of independently developed a new type of automation equipment. This equipment uses PLC programming, HMI LCD, a high degree of intelligence for 18650 cylindrical batteries to achieve batteries series-parallel take welding sheet between the battery pack combination process.

Specification

Model : TWSL-300

Name : Power bank automating welder

Power : 5KW, 220V AC input, 50HZ

Air pressure : 0.4-0.8MPA

Suitable nickel sheet width : 4MM 5MM 6MM

Suitable nickel plate thickness : 0.08MM --- 0.2MM

Productivity

1 core mobile power, 1000-1050 / hour

2 core mobile power, 680-720 group / hour

3-core mobile power, 600-650 group / hour

4-core mobile power, 400-450 group / hour

5 core mobile power, 340-360 group / hour

6-core mobile power, 300-320 group / hour

7 core and mobile power, 240-270 group / hour

8-core mobile power, 220-240 group / hour

9 core mobile power, 200-230 group / hour

10 core and mobile power, 200-220 group / hour

2 serial and 2 parallel mobile power, 500 Group / h

2 Series 3 parallel mobile power : 320 Group / h

4 serial and 2 parallel digital battery: 250 Group / h

3 serial and 2 parallel digital battery: 320 Group / h

3 Series 3 Parallel Digital battery: 120 Group / h

Features:

1 ,Standard spot welder: MC30 two main welder

2 ,Welder effect: Consistency is very good welding, solder joints uniform, beautiful, precision welding, spot welding and can be set to any of the standard procedures, can be arbitrarily extended the length of the front and rear battery spot welding nickel plate, but also realize halfway cut, without limit ;

3 ,Control devices: 7.5-inch touch screen, 3-axis 750W servo motor, 4-axis stepper motor design, double PLC programmer.

4 ,Nickel belt using a disc-shaped nickel belt, reduce waste

5 , Equipment commissioning is simple, easy to learn, exchange models are generally set three parameters.

6 ,Using the hopper feed, automatic exchange of positive and negative

7 , The device comes with failure alarm, follow the prompts to clear the fault.
