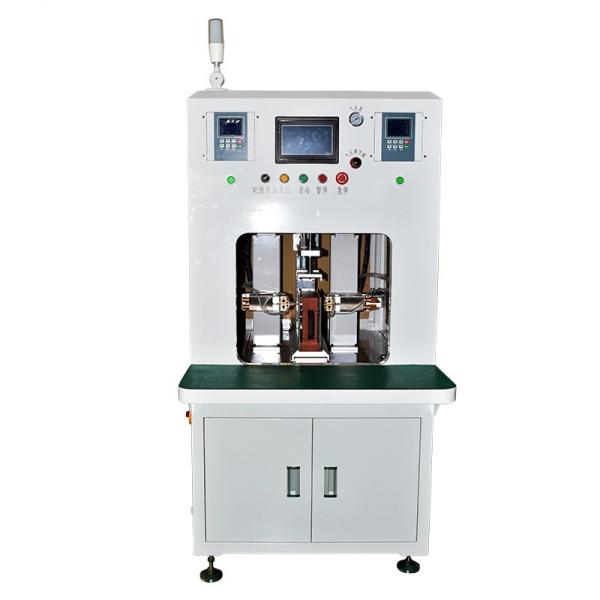

Double Side Automatic 18650 26650 32650 Cylindrical Battery Pack Spot Welder With Best Price
Double Side Automatic 18650 26650 32650 Cylindrical Battery Pack Spot Welder With Best Price
Specifications
Brand Name :
JXC
Model Number :
TWSL-700
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 13000-15000
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 set per month
Delivery Time :
5-8 work days
Packaging Details :
Wooden carton
Voltage :
220V/380V,50HZ
Warranty :
1 year with Lifelong maintenance
Size :
700*1500*920mm
Weight :
250kg
Battery type :
cylindrical lithium battery
Air pressure :
0.4-0.6Mpa
Efficiency :
2500pc/h
Working travel :
300*400mm
Description

Double Side Automatic 18650 26650 32650 Cylindrical Battery Pack Spot Welder With Best Price

Product Features:

1>Machines which automatically Weld Nickel Sheet to Battery Cell Electrode.

2> Used for battery factories automatical production in power banks, laptops and ebikes, etc.

3> Do 2000pcs welding per hour.

4> Touch screen operation, easy and fast responding.

5> 0-1 worker to operate the machine, fast and with great efficiency.

Can be connected to other machines to proceed automatically.

6> Air cooling, manual programming & CAD drawing input available.

7> Overseas sales office in New Delhi, India.

8> 12 months warranty and life-time maintenance.

Power supply: 220V, 50HZ, 3.6Kw
Use pressure: 0.3-0.8Mpa
X Module travel: 0-350MM maximum 18 cores
Y Module travel: 0-135MM maximum 7 cores
X-axis emission batteries: 18PCS within
Y-axis discharge batteries Number: Within 7 lines
Dimensions: L1300 * W750 * H1300MM
Machine weight: 150KG
Productivity: 6 & 16 string, 5 & 16 strings, strings 4 & 16,
3 & 16 series, about 2000 batteries/ hour

Power: 10KVA (max)
Input Frequency: 50/60Hz
Input voltage: 220VAC
Input gas source: 7-8 Bar (kg / cm)
Primary current: 5-30A
Primary short-circuit current: 1500A
The whole structure: Integrated structure
Welding arm structure: Telescopic swing control
Electrodes to the body distance: 100 mm (Scalable adjustable)
Cylinder diameter: 20 mm
The number of pulses: 0-9
Pulse energy level: 0-99
Automatic compensation range: + 40V - 40V
Panel digital display: 7-segment LED display
External dimensions: 445 * 224 * 343 mm
Gross weight: 42 kg

Double Side Automatic 18650 26650 32650 Cylindrical Battery Pack Spot Welder With Best PriceDouble Side Automatic 18650 26650 32650 Cylindrical Battery Pack Spot Welder With Best PriceDouble Side Automatic 18650 26650 32650 Cylindrical Battery Pack Spot Welder With Best PriceDouble Side Automatic 18650 26650 32650 Cylindrical Battery Pack Spot Welder With Best Price

Double Side Automatic 18650 26650 32650 Cylindrical Battery Pack Spot Welder With Best Price

Looking forward to establish good business relationship with you in the new future,any question,please contact me:

Tina | Sales Manager`
Cel/Wechat/whatsapp:+86-13543252590

Email: jxcequipment(@)163.com
