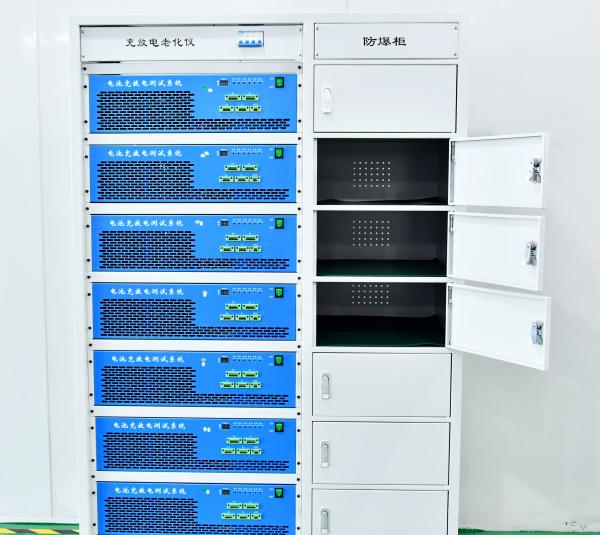

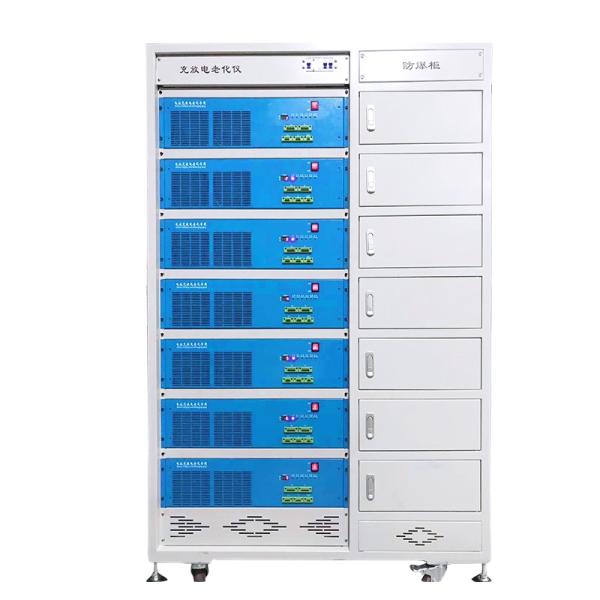

100V battery PACK tester charge and discharge aging cabinet with best price

Functional Features

The charge discharge aging system mainly includes PC software, USB hub, router, aging instrument. The core is aging instrument, aging 32 bit ARM chip was chosen as main control chip, compared to the traditional microcontroller in the execution speed greatly improved, measuring voltage and current accuracy is higher, through the RS232, network transmission data.

1. With constant current and constant voltage charging function

2. With constant current discharge function

3. Fully meet the battery charge and discharge with mouth and separation requirements, that is, 2 lines (P+ P-) and 3 lines (P+ P- C-). At the same time, the CH+ P+ P- can be used to protect the negative plate discharge by aging the positive plate charging protection.

4. By charging and discharging the battery, the charge protection and discharge protection of the battery can be detected.

5. Charge and discharge the battery, record the charge capacity and discharge capacity of the battery.

6. Anti reverse protection function, upper and lower voltage set protection, safety discharge current protection (maximum current 20A);

7. Within 10 machines, through the serial port to connect the PC computer;; more than 10 sets of equipment, you can use the network connection mode. In this way, PC computer only need to provide a network port, you can control less than 254 instruments.

8. Aging instrument software system using the classic mature C/S model

9. Based on the Windows interface, the use of MYSQ database storage test data, and can export curves.

Voltage:10-100V
Current: charge range:0-10000mA
discharge range:0-20000mA
Charge:Min10mA
Discharge power :below 1400W
Time : Patrol time :under 5s
Timer range :0-999hours /step

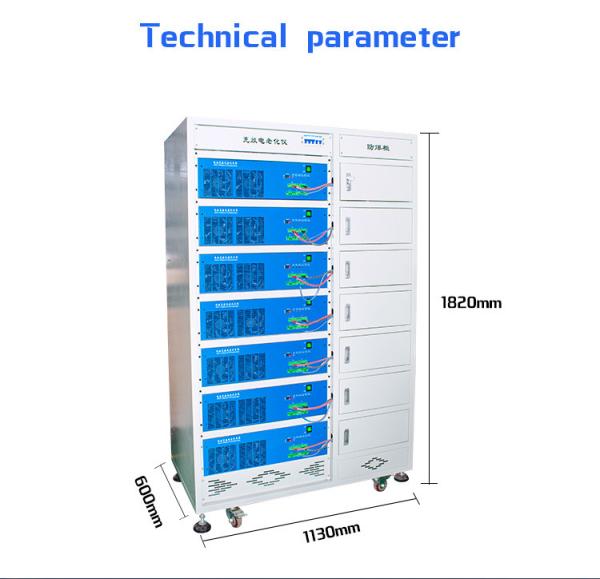

Machine Specification

Machine scope of application

The finished battery charge and discharge machine can used for test Lithium batteries,polymer batteries,lead-acid batteries ect,we have 30V/70V/100V for options

Our Company

Shenzhen Onetop Technology Co Ltd , is a manufacturer which combines R&D and marketing ,we have professional R&D team as well as proficient stuff ,and has been specializing in researching and producing high quality lithium battery machine for 10 years . Our main products ranges from 18650 battery pack assembly machine ,Power Battery PACK assembly machines ,Power Bank Assembly machine,Mobile Phone Battery assembly Machines,Battery safety test equipment,Injection molding machine,Molds, Molding materials, machine parts, etc

We keep in place with the word ,we adopt lastest technology and design ,our Onetop series battery machine stands out in the same industry area ,they are of national advanced technologycal level and have been identified by experts from Shenzhen Science & Technology and Information Bureau .Up to now ,we have obtained many inventions patents ,practical new patents ,and own independent intellectual property rights
.
With the increasing development ,We have created two workshops to manufacture battery machines and injection molding machines
Through our efforts, the Automatic Battery PACK Assembly machines are now widely used in Mobile phone,Power bank,Laptop,Electric bikes,Electric vehicle,solar street lights,Solar energy storage,Banks,LED devices,Health Equipments ect,the low-pressure injection molding machines are now widely used in PCBs, sensor products, wiring harnesses, medical electronic products, etc. In addition, OEM/ODM services can be provided to customers worldwide. Our products enjoy high quality and guarantee all-weather after-sales service, thus winning our 70% market share.we look forward to cooperation with the customers all over the world .

Our Main product

1. Automatic Battery PACK Assembly Line
2. Power Battery PACK machines
3. Power Bank Assembly Line
4. Battery safe test machine
5. Injection Molding Machine

Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days
*Customized Machine: 30-35 days

Our Service
● Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
● After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
