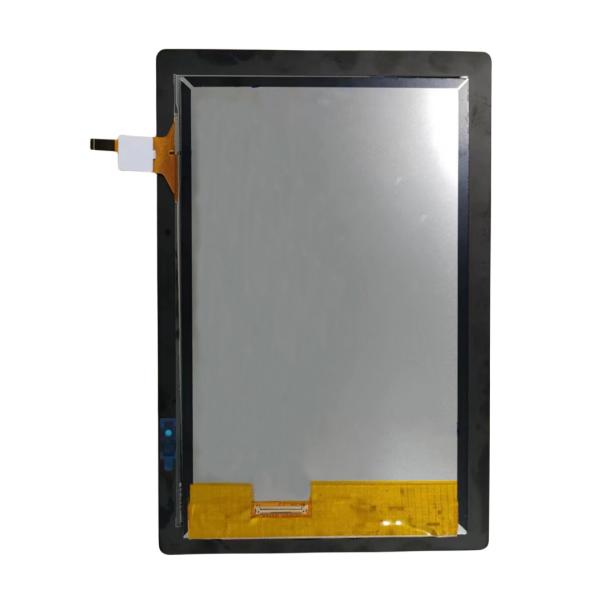

Optical Bonding 10.1 inch TFT LCD Industrial G+G Touch Panel with Ultra-Slim 4.32mm Outline
Optical Bonding 10.1 inch TFT LCD Industrial G+G Touch Panel with Ultra-Slim 4.32mm Outline
Optical Bonding 10.1 inch TFT LCD Industrial G+G Touch Panel with Ultra-Slim 4.32mm Outline
Optical Bonding 10.1 inch TFT LCD Industrial G+G Touch Panel with Ultra-Slim 4.32mm Outline
Specifications
Brand Name :
KADI
Model Number :
KD101QWU83HP-FC75-AG
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Delivery Time :
3-7work days
Packaging Details :
TBD
Size :
10.1 inch
Resolution :
1200 (H) RGB x 1920 (V)
Interface :
MIPI
Viewing Direction :
Full view
Lumiance :
525 cd/m² (Typ.)
Active Area(mm) :
168.60 (H) x 253.96 (V) x 4.32 (D)
Outline Dimension :
135.36 (H) x 216.58 (V)
Pixel Pitch :
0.1128 (H) x 0.1128 (V)
Operation Temp :
-10℃/60℃
storage temperature :
-20℃/70℃
Description

Feature:

  • One connector integrated MIPI/backlight driver/I2C.
  • Optical bonding
  • 15V backlight driver
  • -10~60℃ operating tempature option

LCM General Information

Item Specification Unit
LCD Size 10.1 inch
Number of Pixels
1200 (H) RGB x 1920 (V)
 pixels
Display Mode Normally Black -
Viewing Direction Free o’ clock
Interface
MIPI
 -
Display Colors 16.7M colors
Outline Dimension
168.60 (H) x 253.96 (V) x 4.32 (D)
 mm
Active Area 135.36 (H) x 216.58 (V) mm
Pixel Pitch 0.1128 (H) x 0.1128 (V) mm
Driver IC HX8279 -
Operation Temperature
-10~60
 ℃
Storage Temperature -20~70 ℃

Touch Panel Information

Item Specification
Touch Structure G+G
Bonding Type with LCM OCA Optical Bonding
Driver IC
FT5726-003
Interface I²C
Touch Count Max 10 Points
Surface treatment AG
Surface hardness 9H (Pencil,Loading 500g,45 deg)
I2C slave address 0x70
Origin of coordinate Down Left Corner

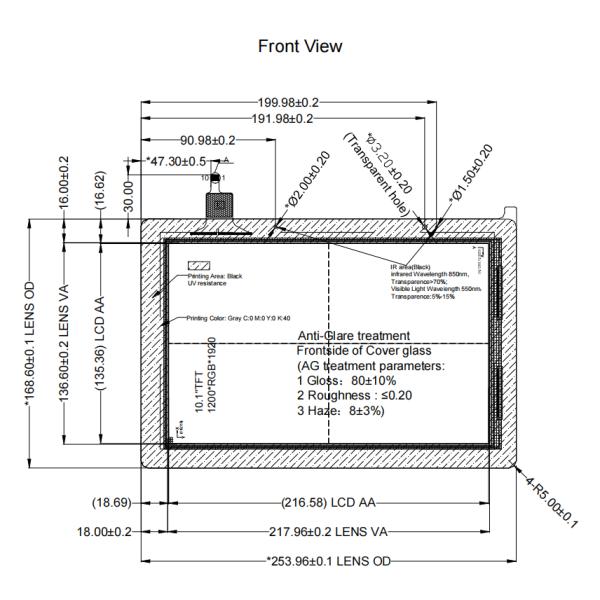

Drawing

Optical Bonding 10.1 inch TFT LCD Industrial G+G Touch Panel with Ultra-Slim 4.32mm Outline

Optical Bonding 10.1 inch TFT LCD Industrial G+G Touch Panel with Ultra-Slim 4.32mm Outline

Why choose us?

Core team from Tianma, Innolux, TFT-LCD and Touch panel field with more than 20 years of experience.

1. Focus on industrial/medical/automotive, products with long lifetime, long-term supply features.

2. Strict quality management, passed ISO9001/ IATF16949/ ISO14001/ ISO13485 certification,0.5‰ after-sales repair rate.

3. One-stop solution provider, support customize TFT-LCD/ Touch Panel with optical bonding/ Signal conver board products,we display your ideas.

Optical Bonding 10.1 inch TFT LCD Industrial G+G Touch Panel with Ultra-Slim 4.32mm Outline
