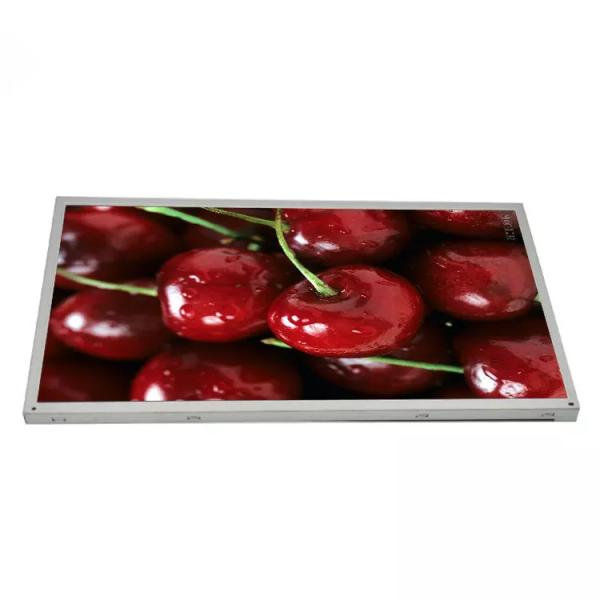

AUO 17.3 Inch Full HD 1920*1080 Panel G173HW01 V0 -Pins LVDS LCD Module For Industry
AUO 17.3 Inch Full HD 1920*1080 Panel G173HW01 V0 -Pins LVDS LCD Module For Industry
Specifications
Brand Name :
AUO
Model Number :
G173HW01 V0
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Delivery Time :
3-7work days
Packaging Details :
Natural packaging
Size :
17.3 inch
Resolution :
1920*1080
Interface :
LVDS
Display Mode :
Normally White
Viewing Direction :
80/80/60/80
Lumiance :
400 cd/m² (Typ.)
Active Area(mm) :
381.888×214.812 mm
Outline Dimension :
403×240×13mm
Operation Temp :
-0℃ ~ +70℃
Storage Temp :
-30℃ ~ +75℃
Description

AUO 17.3 inch Full HD 1920*1080 panel G173HW01 V0 30 pins LVDS LCD module for Industry

G173HW01 V0

AUO 17.3 inch 1920*1080 display for Industry application

Manufacturer AUO
Model Name G173HW01 V0
Screen Size 17.3 inch
Screen Type LCM,a-Si TFT-LCD
Pixel Number 1920(RGB)×1080 , FHD
Arrangement RGB Vertical Stripe
Active Area(mm) 381.888(H)×214.812(V) mm (H×V)
Outline(mm) 403 × 240 × 13 mm (H×V×D)
Bezel Area(mm) 385.09 × 218.01 mm (H×V)
Treatment Haze 0%,Hard coating (3H)
Luminance 400 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10)Left/Right/Up/ Down
Response 37/3 (Typ.)(Tr+Td) ms
Good View at
Work Mode TN, Normally White, Transmissive
Color Depth 16.7M , 72% (CIE1931)
Backlight WLED, 50K hours , with driver
Net Weight 1.08Kgs (Typ./Max.)
Used for Industrial Application
operating frequency 60Hz
Touchscreen Without
Signal Type LVDS (2 ch, 8-bit) , 30 pins
Voltage Supply 3.3 V (Typ.)
Max. Ratings Storage Temp.: -30 ~ 75°C
Operating Temp.: 0 ~ 70 °C
Package AUO original package;As requirement
10 pcs / box
Box Size:524x321x360 mm
