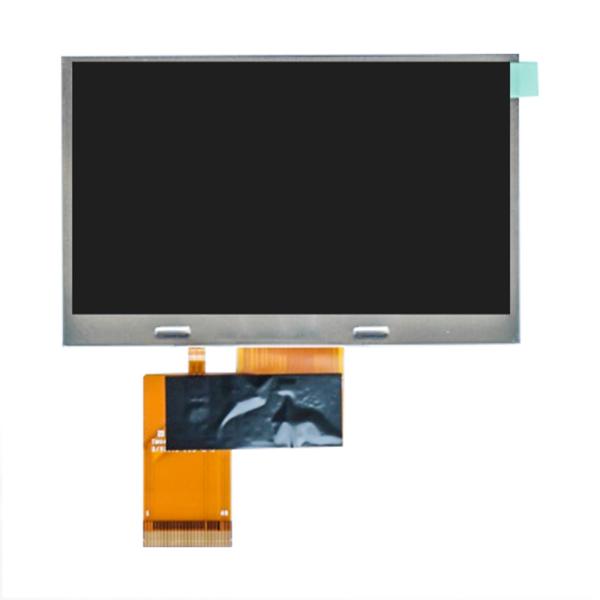

4.3 Inch 480x272 Industrial TIANMA LCD Display RGB Signal Interface

TM043NDH02-40.pdf

TIANMA 4.3 inch 480*272 display for medical monitors

TM043NDH02-40 is a 4.3-inch LCD module product with a-Si TFT-LCD technology launched by TIANMA, it is equipped with WLED backlight, no backlight driver, no touch, ST7282T2 driver IC. The service life of the light source is 30K hours, excluding backlight driver. TM043NDH02-40 adopts Parallel RGB (1 ch, 8-bit) signal interface, a total of 40 pins, connected by FPC, and the drive voltage is 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.

Actual Product Applications

With the rapid development of the medical industry, the medical level is getting higher and higher, and medical LCD medical terminals appear to enhance hospital management efficiency, reduce medical errors, reduce the labor intensity of medical staff, and improve patient satisfaction. As the core part of the medical terminal, the medical LCD screen bears the main functions and directly affects its normal operation and performance.

FAQ

• Q: Products are in stock? How long can you deliver?
• A: Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks

• Q: Can we customize the CTP? What cost will be included?
• A: Yes, We have 2 CTP bonding lines, support customize cover glass and do optical bonding.We combine touch screen technology with an LCD display module, which greatly saves your cost. One-stop service will be one of the reasons why choose us.

• Q: What is the minimum order quantity?
• A: All our products have MOQ requirements, please contact our salesman for detailed information.

• Q: What is the application of the product?
• A: The products can be widely applied to the fields of HMI, handheld terminals, household medical products, instruments and apparatus, white goods, oiling machine, auto, and AOI, etc.

• Q: What kind of packaging? The transport process will not be damaged?
• A: Our products are divided into two categories, small-medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of the material transportation.
