Specifications
Brand Name :
BOE
Model Number :
GV215FHM-N10
MOQ :
1PCS
Payment Terms :
T/T
Delivery Time :
3-7work days
Certification :
ISO9001
Place of Origin :
China
Size :
21.5 inch
Resolution :
1920*1080
Interface :
30 pins LVDS
Display Mode :
Normally Black
Viewing Direction :
89/89/89/89 (Typ.)
Lumiance :
350 cd/m² (Typ.)
Active Area(mm) :
476.64 × 268.11 mm
Outline Dimension :
485.6 × 292.2 mm (H×V×D)
Operation Temp :
-20℃ ~ +70℃
Storage Temp :
-30℃ ~ +80℃
Description

Feature:

LCM General Information

Parameter Specification Unit Remarks
Active area 476.64(H) × 268.11(V) mm
Number of pixels 1920(H) × 1080(V) pixels
Pixel pitch 0.24825(H) x 0.24825(V) mm
Pixel arrangement RGB Vertical stripe -
Display colors 16.7M colors
Display mode Normally Black -
Dimensional outline 495.6(H) × 292.2(V) × 10.7(D) typ. mm Detail refer to drawing
Possible Display Type Landscape and Portrait Enabled -
Weight 2000 Typ g
Bezel width (L/R/U/D) 7.9/7.9/10.45/10.45 mm
Surface Treatment Haze 25%, 3H -
Back-light Lower side 1-LED Light bar Type -

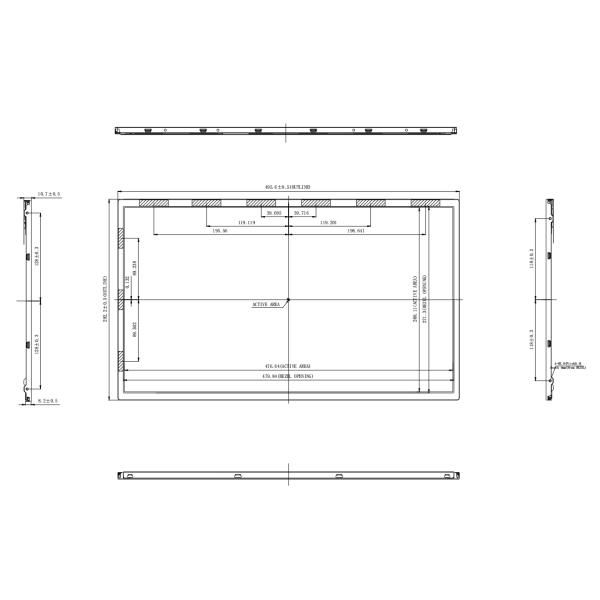

Drawing

LED Backlit TV Panel BOE LCD Display 21.5 Inch White 1920*1080 30pin LVDS

LED Backlit TV Panel BOE LCD Display 21.5 Inch White 1920*1080 30pin LVDS

Why choose us?

1. Core team from Tianma, Innolux, TFT-LCD and Touch panel field with more than 20 years of experience.

2. Focus on industrial/medical/automotive, products with long lifetime, long-term supply features.

3. Strict quality management, passed ISO9001/ IATF16949/ ISO14001/ ISO13485 certification,0.5‰ after-sales repair rate.

4. One-stop solution provider, support customize TFT-LCD/ Touch Panel with optical bonding/ Signal conver board products,we display your ideas.
