Specifications
Brand Name :
KADI Display
Model Number :
KD035CQ35ES
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Delivery Time :
3-7work days
Size :
3.5 inch
Resolution :
320*240
Interface :
RGB
Display Mode :
Normally White
Viewing Direction :
55/65/65/65
Lumiance :
800 cd/m² (Typ.)
Active Area(mm) :
70.08 x 52.56 mm
Outline Dimension :
76.84 x 63.84 x 3.26 mm
Operation Temp :
-20℃ ~ 70℃
Storage Temp :
-30℃ ~ +80℃
Description

KD035CQ35ES.pdf

KADI 3.5inch 320*240 display for medical monitors

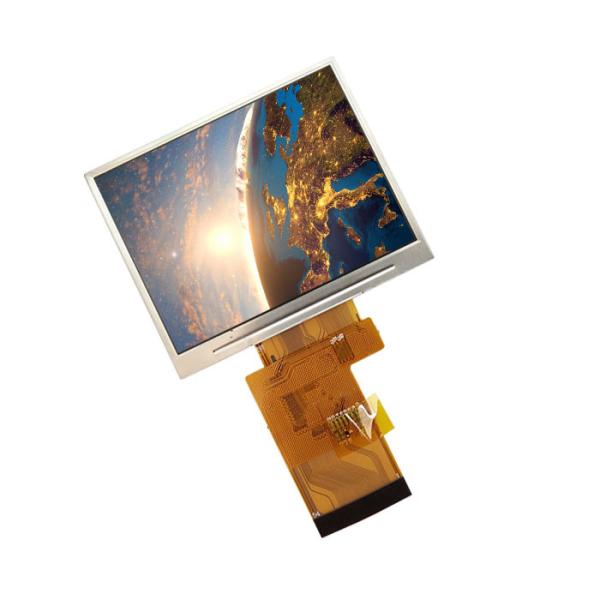

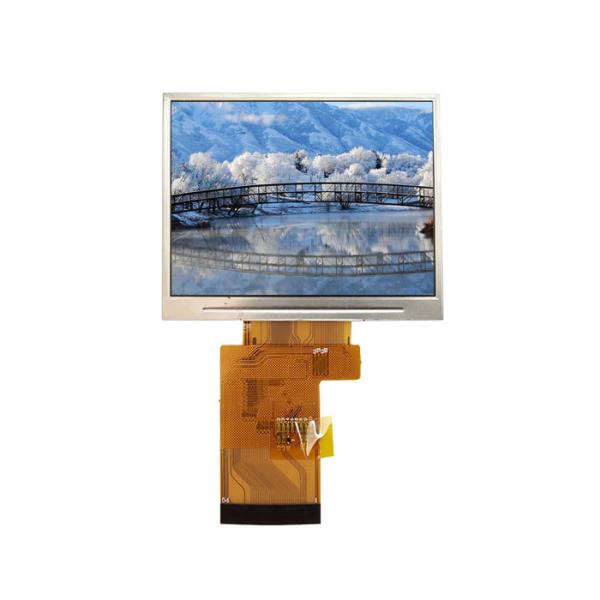

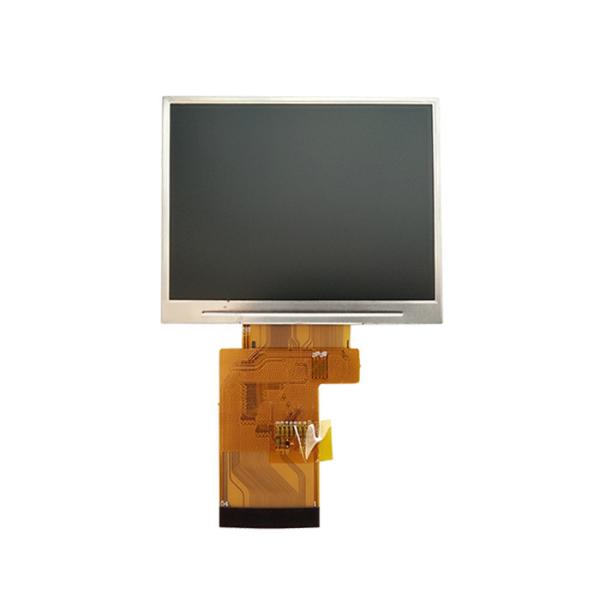

KD035CQ35ES is a 3.5-inch a-Si TFT-LCD liquid crystal module product launched by KADI. It is equipped with WLED backlight, including LED driver backlight drive, no touch. In terms of backlight, this product adopts WLED light-emitting edge light source, the service life of the light source is 25K hours, including LED driver.

Feature Spec
Characteristics Size 3.5 inch
Resolution 320(horizontal)*240(Vertical)
Interface 24bit-RGB
Connect type Connector
Color Depth 16.7M
Technology type a-Si
Pixel pitch (mm) 0.219*0.219
Pixel Configuration R.G.B.Stripe
Display Mode Normally White
Driver IC HX8238D
Viewing Direction 12 O’clock
Mechanical LCM (W x H x D) (mm) 76.84*63.84*3.26
Active Area(mm) 70.08*52.56
Weight (g) TBD
LED Numbers 6 LEDs

Note 1: Requirements on Environmental Protection: RoHs

Note 2: LCM weight tolerance: +/- 5%

Actual Product Applications

This model is recommended for industrial, car display, medical imaging and other products. This product will be mass-produced in Q2 2020, and the current production status is in mass production.

3.5 Inch 320 X 240 LCD Display With 800nits LED Backlight Driver

FAQ

  • Q: Can we customize the CTP? What cost will be included?
  • A: Yes, We have 2 CTP bonding lines, support customize cover glass and do optical bonding.We combine touch screen technology with an LCD display module, which greatly saves your cost. One-stop service will be one of the reasons why choose us.

  • Q: Products are in stock? How long can you deliver?
  • A: Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks

  • Q: How to control the quality of products?
  • A: The company has a professional quality team, and all products are 100% inspected before shipment.

  • Q: How long is the warranty and service of the product?
  • A: Generally the warranty period is one year.

  • Q: Can you provide product drawings and test reports?
  • A: According to customer needs, our company can provide product-related information and test reports.
