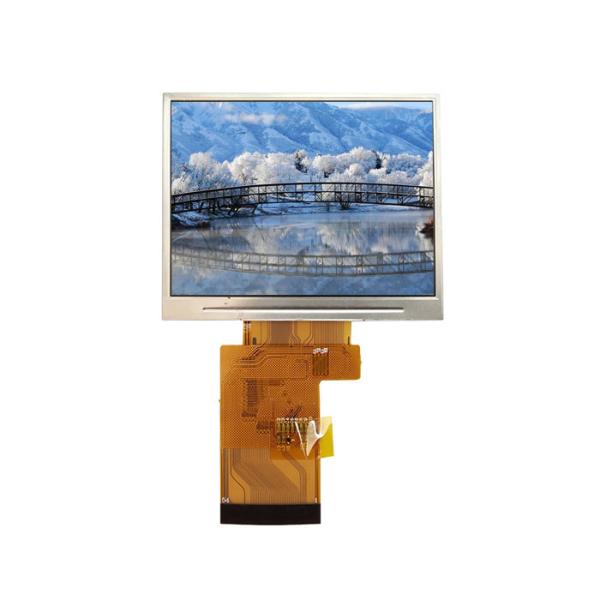

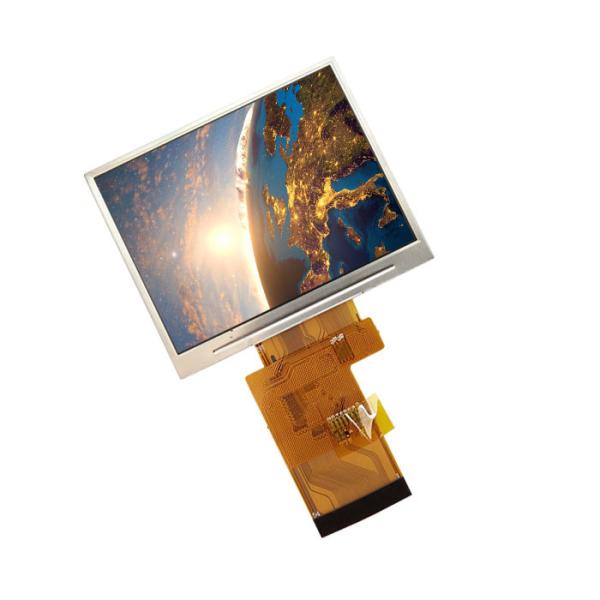

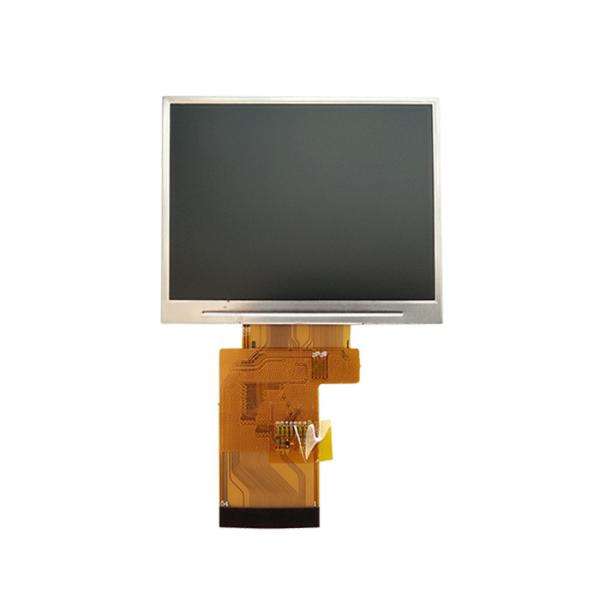

3.5 Inch 320x240 LCD Display Screen With 800 Nits For Industry
3.5 Inch 320x240 LCD Display Screen With 800 Nits For Industry
3.5 Inch 320x240 LCD Display Screen With 800 Nits For Industry
3.5 Inch 320x240 LCD Display Screen With 800 Nits For Industry
3.5 Inch 320x240 LCD Display Screen With 800 Nits For Industry
3.5 Inch 320x240 LCD Display Screen With 800 Nits For Industry
3.5 Inch 320x240 LCD Display Screen With 800 Nits For Industry
3.5 Inch 320x240 LCD Display Screen With 800 Nits For Industry
3.5 Inch 320x240 LCD Display Screen With 800 Nits For Industry
3.5 Inch 320x240 LCD Display Screen With 800 Nits For Industry
3.5 Inch 320x240 LCD Display Screen With 800 Nits For Industry
3.5 Inch 320x240 LCD Display Screen With 800 Nits For Industry
Specifications
Brand Name :
KADI Display
Model Number :
KD035GQ09ES
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Delivery Time :
3-7work days
Size :
3.5 inch
Resolution :
320*240
Interface :
RGB
Display Mode :
Normally White
Viewing Direction :
70/60/70/70
Lumiance :
800 cd/m² (Typ.)
Active Area(mm) :
70.08 x 52.56 mm
Outline Dimension :
76.84 x 63.84 x 3.27 mm
Operation Temp :
-20℃ ~ 70℃
Storage Temp :
-30℃ ~ +80℃
Description

KD035GQ09ES V1.0 SPEC.pdf

KADI 3.5inch 320*240 display for medical monitors

KD035GQ09ES is a 3.5-inch a-Si TFT-LCD liquid crystal module product launched by KADI. It is equipped with WLED backlight, including LED driver backlight drive, no touch, . In terms of backlight, this product adopts WLED light-emitting edge light source, the service life of the light source is 30K hours, including LED driver. This model is recommended for industrial, car display, medical imaging and other products. This product will be mass-produced in Q2 2020, and the current production status is in mass production.

General Specifications

Feature Spec

Characteristics

 Size 3 5 inch
Resolution 320(horizontal)*240(Vertical)
Interface

1. 8/ 9/ 16/ 18-bit 6800-series / 8080-series Parallel Interface

2. Serial Peripheral Interface (SPI) 3. 18-/6-bit RGB interface (DEN, DOTCLK,HSYNC,VSYNC,DB[17:0])

4. VSYNC interface

(system interface + VSYNC)

5. WSYNC interface

(system interface + WSYNC)
Connect type Connector
Color Depth 262K
Technology type a-Si
Pixel pitch (mm) 0 219 x 0 219
Pixel Configuration R.G.B.-Stripe
Display Mode Normally White
Driver IC SSD2119
Viewing Direction 12 O’clock
Gray Inversion Direction 6 O’clock

Mechanical

 LCM (W x H x D) (mm) 76.84*63.84*3.27
Active Area(mm) 70 08 x 52 56
Weight (g) TBD
LED Numbers 6 LEDS

Note 1: Requirements on Environmental Protection: RoHs

Note 2: LCM weight tolerance: +/- 5%

Actual Product Applications

With the rapid development of the medical industry, the medical level is getting higher and higher, and medical LCD medical terminals appear to enhance hospital management efficiency, reduce medical errors, reduce the labor intensity of medical staff, and improve patient satisfaction. As the core part of the medical terminal, the medical LCD screen bears the main functions and directly affects its normal operation and performance.

3.5 Inch 320x240 LCD Display Screen With 800 Nits For Industry

FAQ

  • Q: Can we customize the CTP? What cost will be included?
  • A: Yes, We have 2 CTP bonding lines, support customize cover glass and do optical bonding.We combine touch screen technology with an LCD display module, which greatly saves your cost. One-stop service will be one of the reasons why choose us.

  • Q: Products are in stock? How long can you deliver?
  • A: Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks

  • Q: How to control the quality of products?
  • A: The company has a professional quality team, and all products are 100% inspected before shipment.

  • Q: How long is the warranty and service of the product?
  • A: Generally the warranty period is one year.

  • Q: Can you provide product drawings and test reports?
  • A: According to customer needs, our company can provide product-related information and test reports.
