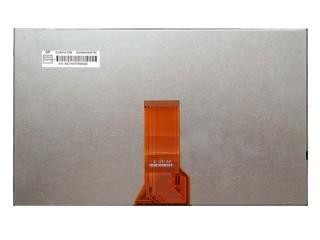

1280*720 Innolux LCD Display 9 Inch Laptop Screen JJ090IA-01G

Innolux 9 inch 1280RGB x720 display for laptop monitors

JJ090IA-01G display resolution is 1280(RGB)×720 (WXGA), width to height ratio is 16:9 (width: height), pixels are arranged in RGB vertical stripes, according to the product specifications of Version VER.5 released by Innolux on March 25, 2020. Its display area size is 198.912×111.888 (width × height) mm, its visual size is 201.912×114.86 (width × height) mm, its external size is 211.2×125.3 (width × height)×9.55(thickness) mm, and its surface treatment is Hard coating. Product net weight 230g (Max.). In terms of backlight, this product adopts 7S4P WLED side entry light source, which has a service life of 20K hours and does not include backlight drive. JJ090IA-01G adopts LVDS (1 CH, 6/8-bit) + SPI signal interface, a total of 40 pins, adopts terminal connection, drive screen voltage is 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. It operates at -30 °C to 80°C and stores at -40 °C to 90°C. Based on its wide temperature, high brightness, white LED backlight, up/down, left/right flip display, 6/8 bit gray scale optional, this model is recommended for outdoor highlighting, car display.

Actual Product Applications

With the rapid development of the medical industry, the medical level is getting higher and higher, and medical LCD medical terminals appear to enhance hospital management efficiency, reduce medical errors, reduce the labor intensity of medical staff, and improve patient satisfaction. As the core part of the medical terminal, the medical LCD screen bears the main functions and directly affects its normal operation and performance.

FAQ

• Q: Can we customize the CTP? What cost will be included?
• A: Yes, We have 2 CTP bonding lines, support customize cover glass and do optical bonding.We combine touch screen technology with an LCD display module, which greatly saves your cost. One-stop service will be one of the reasons why choose us.

• Q: Products are in stock? How long can you deliver?
• A: Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks

• Q: How to control the quality of products?
• A: The company has a professional quality team, and all products are 100% inspected before shipment.

• Q: How long is the warranty and service of the product?
• A: Generally the warranty period is one year.

• Q: Can you provide product drawings and test reports?
• A: According to customer needs, our company can provide product-related information and test reports.
