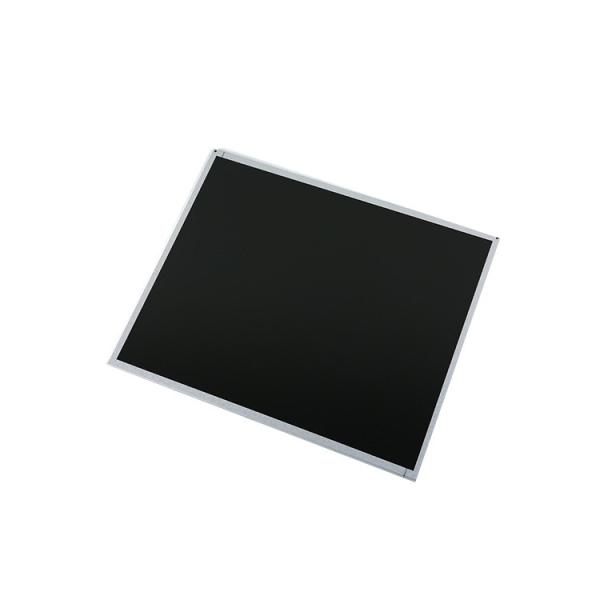

1280*1024 BOE TFT LCD Oled Laptop Screen A-SI 19.0 Inch Wled Backlight

ZV190E0M-N10

BOE 19 inch 1280*1024 LCD display for laptop application

BOE launched zV190E0M-N10 is a 19.0 inch LCD module product using A-SI TFT-LCD technology. It is equipped with WLED backlight, including LED driver backlight drive, no touch. The typical features are summarized as follows: wide color gambit, sRGB, white LED backlight, life span of more than 50,000 hours, including LED driver, terminal full installation. It operates at -20 to 70°C, stores at -20 to 75°C, and has a vibration resistance of 1.5g (14.7m /s²). According to the product specification issued by BOE on April 19, 2021, ZV190E0M-N10 has a display resolution of 1280(RGB)×1024 (SXGA), an aspect ratio of 5:4 (WIDTH: height), and pixels arranged in RGB vertical strips. Its display area size is 374.784×299.827 (width × height) mm, visual size is 378.8×303 (width × height) mm, external size is 396(width)×324(height)×13.38(thickness) mm, product net weight is 1.80Kgs (Typ.). In terms of backlighting, this product uses a WLED side entry light source with a life of 50K hours, including LED driver. Zv190e0m-n10 uses LVDS (2 CH, 8-bit) signal interface, a total of 30 pins, uses terminal connection, drive voltage is 5.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.

Actual Product Applications

With the rapid development of the medical industry, the medical level is getting higher and higher, and medical LCD medical terminals appear to enhance hospital management efficiency, reduce medical errors, reduce the labor intensity of medical staff, and improve patient satisfaction. As the core part of the medical terminal, the medical LCD screen bears the main functions and directly affects its normal operation and performance.

FAQ

• Q: Can we customize the CTP? What cost will be included?
• A: Yes, We have 2 CTP bonding lines, support customize cover glass and do optical bonding.We combine touch screen technology with an LCD display module, which greatly saves your cost. One-stop service will be one of the reasons why choose us.

• Q: Products are in stock? How long can you deliver?
• A: Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks

• Q: How to control the quality of products?
• A: The company has a professional quality team, and all products are 100% inspected before shipment.

• Q: How long is the warranty and service of the product?
• A: Generally the warranty period is one year.

• Q: Can you provide product drawings and test reports?
• A: According to customer needs, our company can provide product-related information and test reports.
