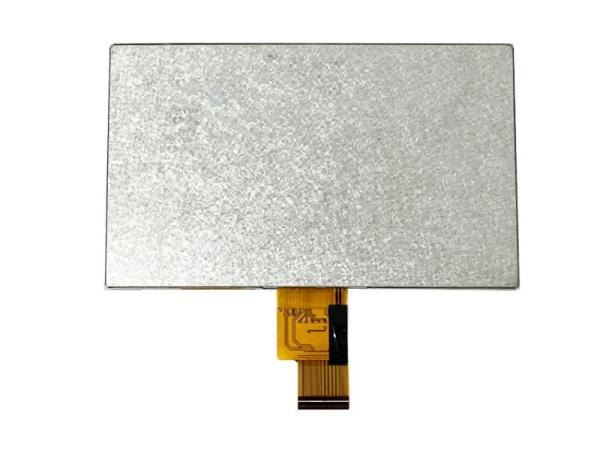

KADI A-Si IPS LCD Module LVDS Interface Lcd Display 7 Inch 1024x600 RoHs
KADI A-Si IPS LCD Module LVDS Interface Lcd Display 7 Inch 1024x600 RoHs
KADI A-Si IPS LCD Module LVDS Interface Lcd Display 7 Inch 1024x600 RoHs
KADI A-Si IPS LCD Module LVDS Interface Lcd Display 7 Inch 1024x600 RoHs
Specifications
Brand Name :
KADI
Model Number :
KD070BWS45EG V2.0
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Delivery Time :
3-7work days
Size :
7 inch
Resolution :
1024*600
Interface :
LVDS
Display Mode :
IPS
Viewing DirLVDS (1 ch, 8bit) , 45 pinsection :
ALL
Lumiance :
800cd/m² (Typ.)
Active Area(mm) :
154.21 x 85.92mm (HxV)
Outline Dimension :
165 x 100 x 5.7mm(HxV)
Operation Temp :
-20℃ ~ +70℃
Storage Temp :
-30℃ ~ +80℃
Description

7.0 Inch KADI A-Si IPS LCD Module LVDS Interface 1024*600 RoHs

KD070BWS45EG V2.0

KADI 7 inch 1024* 600 LCD display for industrial application

Feature Spec
Characteristics Size 7 inch
Resolution 1024(horizontal)*600(Vertical)
Interface LVDS
Connect type Connector
Display Colors 16.7M
Technology type a-Si
Pixel pitch (mm) 0.150*0.143
Pixel Configuration R.G.B.-Stripe
Display Mode Normally Black
LCD Driver IC EK79001HN+EK73215BCGA
Viewing Direction Full view
Mechanical LCM (W x H x D) (mm) 165.00*100.00*5.70
Active Area(mm) 154.21 x85.92
With /Without TSP Without TSP
Weight (g) TBD
LED Numbers 30 LEDs

Note 1: Requirements on Environmental Protection: RoHs

Note 2: LCM weight tolerance: +/- 5%

Actual Product Applications

With the rapid development of the medical industry, the medical level is getting higher and higher, and medical LCD medical terminals appear to enhance hospital management efficiency, reduce medical errors, reduce the labor intensity of medical staff, and improve patient satisfaction. As the core part of the medical terminal, the medical LCD screen bears the main functions and directly affects its normal operation and performance.

KADI A-Si IPS LCD Module LVDS Interface Lcd Display 7 Inch 1024x600 RoHs

FAQ

  • Q: Can we customize the CTP? What cost will be included?
  • A: Yes, We have 2 CTP bonding lines, support customize cover glass and do optical bonding.We combine touch screen technology with an LCD display module, which greatly saves your cost. One-stop service will be one of the reasons why choose us.

  • Q: Products are in stock? How long can you deliver?
  • A: Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks

  • Q: How to control the quality of products?
  • A: The company has a professional quality team, and all products are 100% inspected before shipment.

  • Q: How long is the warranty and service of the product?
  • A: Generally the warranty period is one year.

  • Q: Can you provide product drawings and test reports?
  • A: According to customer needs, our company can provide product-related information and test reports.
