BOE 10.1 inch 800*1280 Laptop LCD Display MIPI industrial LED screen

TV101WXM-NLB-.pdf

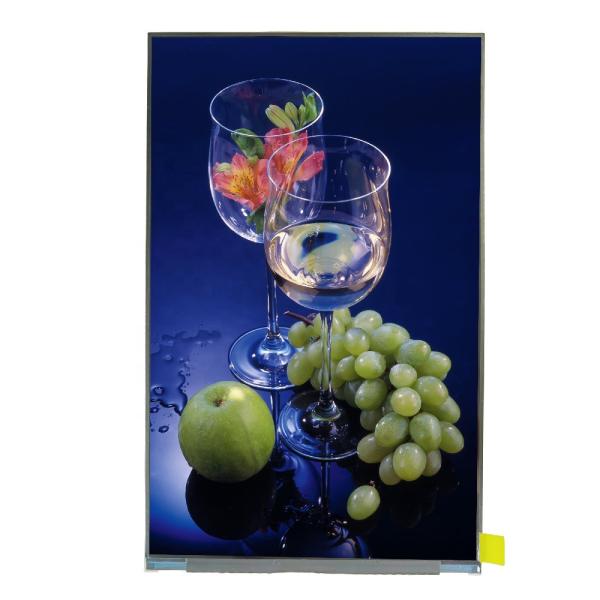

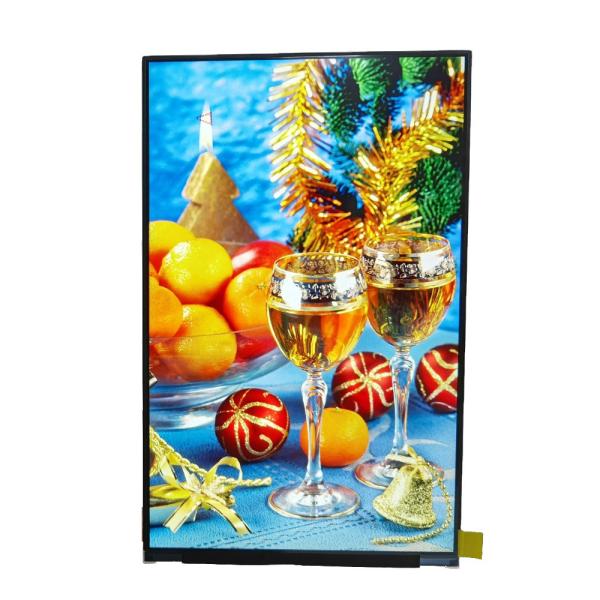

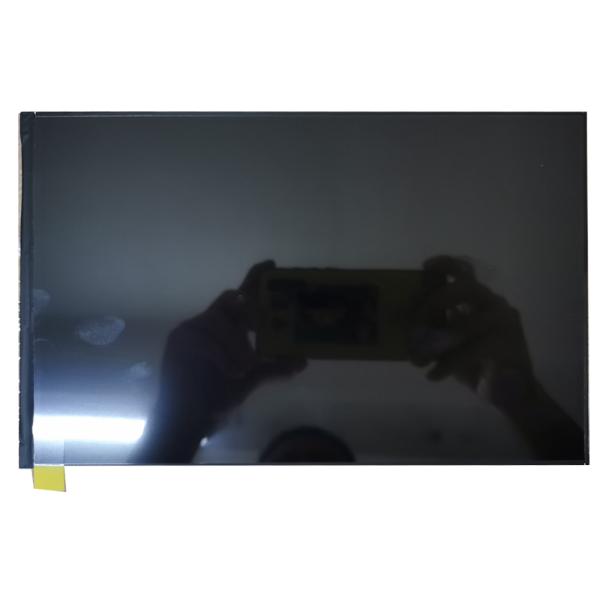

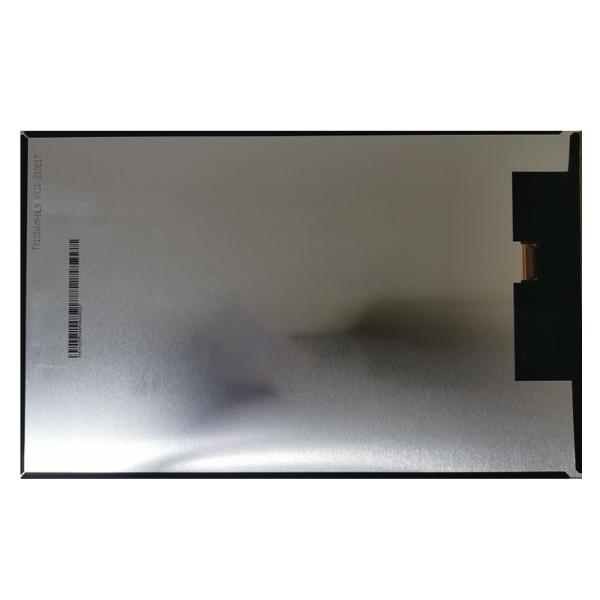

BOE 10.1 inch 800*1280 display for industrial monitors

TV101WXM-NLB is a 10.1-inch LCD module product launched by BOE with a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight driver, no touch, HX8252-A02 driver IC. In terms of backlight, this product uses a 7S4P WLED edge-type light source, excluding backlight driver. TV101WXM-NLB adopts MIPI (4 data lanes) signal interface, a total of 39 pins, which are connected by terminals, and the drive voltage is 1.8/3.3V (Typ.)(IOVCC/VDD). Its typical vertical refresh rate Fv is 60Hz.

Actual Product Applications

With the rapid development of the medical industry, the medical level is getting higher and higher, and medical LCD medical terminals appear to enhance hospital management efficiency, reduce medical errors, reduce the labor intensity of medical staff, and improve patient satisfaction. As the core part of the medical terminal, the medical LCD screen bears the main functions and directly affects its normal operation and performance.

FAQ

​

• Q: Products are in stock? How long can you deliver?
• A: Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks

• Q: What is the minimum order quantity?
• A: All our products have MOQ requirements, please contact our salesman for detailed information.

• Q: What is the application of the product?
• A: The products can be widely applied to the fields of HMI, handheld terminals, household medical products, instruments and apparatus, white goods, oiling machine, auto, and AOI, etc.

• Q: What kind of packaging? The transport process will not be damaged?
• A: Our products are divided into two categories, small-medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of the material transportation.

• Q: Payment Terms?
• A: For samples, Paypal can be accepted. But for mass production, credit card or T/T full payment before produce and delivery is needed.
