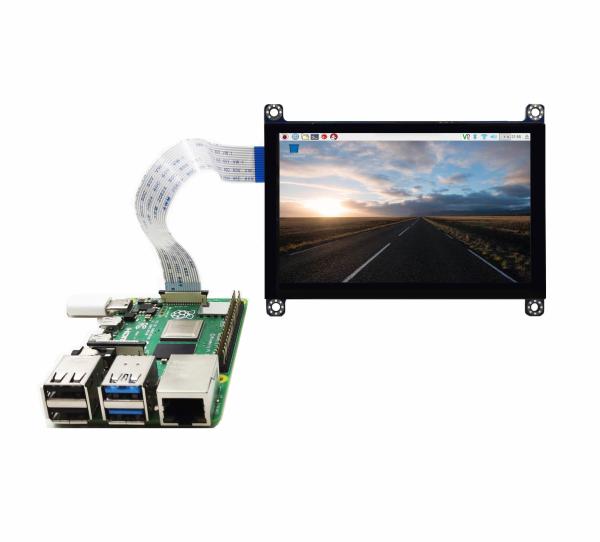

4.3 Inch DSI Raspberry LCD Display Industrial Color Monitor
4.3 Inch DSI Raspberry LCD Display Industrial Color Monitor
Specifications
Brand Name :
KADI Display
Model Number :
KDR4301-01
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Delivery Time :
3-7work days
Size :
4.3 inch
Resolution :
800*480
Interface :
MIPI
Display Mode :
TN
Viewing Direction :
12 o'clock
Lumiance :
350 cd/m² (Typ.)
Active Area(mm) :
95.04×53.86 mm
Outline Dimension :
105.5×67.2mm
Operation Temp :
-10℃ ~ 60℃
Storage Temp :
-20℃ ~ 70℃
Description

4.3 Inch DSI Raspberry LCD Display Industrial Color Monitor

KDR4301-01

4.3 inch DSI Raspberry 800*480 display for industrial monitors

Item Symbol MIN Typ MAX Unit
Supply Voltage VDD -0.5 - 3.96 V
Direct Current Id 90 110 130 mA
Operating Temperature TOPR -30 - 70 ℃
Storage Temperature TSTG -20 - 60 ℃
Life time 25000 Hrs

Actual Product Applications

With the rapid development of the medical industry, the medical level is getting higher and higher, and medical LCD medical terminals appear to enhance hospital management efficiency, reduce medical errors, reduce the labor intensity of medical staff, and improve patient satisfaction. As the core part of the medical terminal, the medical LCD screen bears the main functions and directly affects its normal operation and performance.

4.3 Inch DSI Raspberry LCD Display Industrial Color Monitor

FAQ

  • Q: Can we customize the CTP? What cost will be included?
  • A: Yes, We have 2 CTP bonding lines, support customize cover glass and do optical bonding.We combine touch screen technology with an LCD display module, which greatly saves your cost. One-stop service will be one of the reasons why choose us.

  • Q: Products are in stock? How long can you deliver?
  • A: Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks

  • Q: How to control the quality of products?
  • A: The company has a professional quality team, and all products are 100% inspected before shipment.

  • Q: How long is the warranty and service of the product?
  • A: Generally the warranty period is one year.

  • Q: Can you provide product drawings and test reports?
  • A: According to customer needs, our company can provide product-related information and test reports.
