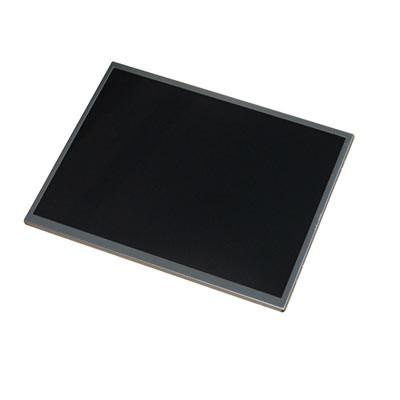

Industrial INNOLUX LCD Flat Panel Monitor 1024x768 12.1 Inch Hard Coating

G121XCE-L02

INNOLUX 12.1 inch 1024*768 display

G121xce-l02 is a 12.1 inch LIQUID crystal module of Innolux optoelectronics Co., LTD. (Innolux). It adopts A-Si TFT-LCD technology. It is equipped with WLED backlight, including LED driver backlight drive, no touch. G121xce-l02 displays a resolution of 1024(RGB)×768 (XGA), a width to height ratio of 4:3 (width: height), and the pixels are arranged in RGB vertical stripes, according to the product specification for Ver3.2 released by Innolux on April 11, 2019. Its display area size is 245.76×184.32 (width × height) mm, visual size is 249.0×187.5 (width × height) mm, and its external size is 260.5×204 (width × height)×8.9(thickness) mm. The surface treatment is fog surface, Hard coating (3H), Product net weight 490/510g (Typ./Max.). For backlighting, this product uses a WLED side entry light source with a life of 30K hours, including LED driver. G121xce-l02 uses LVDS (1 CH, 6/8-bit) signal interface, a total of 20 pins, uses terminal connection, drive screen voltage is 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. It operates at -30 °C to 70°C, stores at -40 °C to 80°C, and has a vibration resistance of 1.5g (14.7m /s²).

Actual Product Applications

This model is recommended for industrial use due to its wide temperature, white LED backlight, including LED driver, terminal mounting, up/down, left/right flip display, 6/8 bit grey scale optional, and fog surface.

FAQ

• Q: Can we customize the CTP? What cost will be included?
• A: Yes, We have 2 CTP bonding lines, support customize cover glass and do optical bonding.We combine touch screen technology with an LCD display module, which greatly saves your cost. One-stop service will be one of the reasons why choose us.

• Q: Products are in stock? How long can you deliver?
• A: Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks

• Q: How to control the quality of products?
• A: The company has a professional quality team, and all products are 100% inspected before shipment.

• Q: How long is the warranty and service of the product?
• A: Generally the warranty period is one year.

• Q: Can you provide product drawings and test reports?
• A: According to customer needs, our company can provide product-related information and test reports.
