INNOLUX 480x272 TFT Touch Patient Monitor Display Screen 4.3 Inch

AT043TN24 V.7

INNOLUX 4.3 inch 480*272 display for industrial application

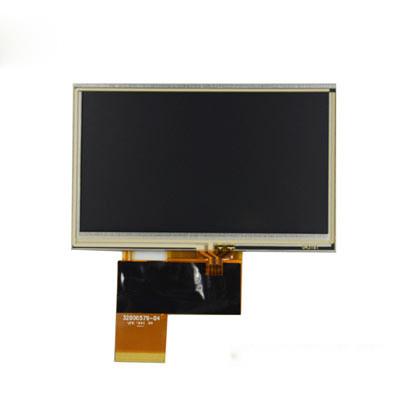

AT043TN24 V.7 is a 4.3-inch LCD module based on A-Si TFT-LCD technology from Innolux. It is equipped with WLED backlight, no backlight drive, 4-wire resistance touch screen. AT043TN24 V.7 displays a resolution of 480(RGB)×272 (WQVGA), a 16:9 aspect ratio (width: height), and the pixels are arranged in RGB vertical stripes, according to the product specification for Final Ver04 released by Innolux on November 9, 2017. Its display area size is 95.04×53.856 (width × height) mm, visual size is 98.7×57.5 (width × height) mm, appearance size is 105.5×67.2 (width × height) mm, surface treatment is fog surface, product net weight 59.0g (Typ.). Backlight This product uses 8S1P WLED side entry light source, the service life of light source is 20K hours, without backlight drive. AT043TN24 V.7 adopts Parallel RGB (1 CH, 8-bit) signal interface, a total of 40 pins, FPC connection, drive screen voltage is 3.3V (Typ.). It operates at -20 °C to 70°C and stores at -30 °C to 80°C. Due to its touch screen, white LED backlight, fog surface, 3 in 1 FPC and other features, this model is recommended for use in car display, portable navigator, MP3 PMP.

Actual Product Applications

With the rapid development of the medical industry, the medical level is getting higher and higher, and medical LCD medical terminals appear to enhance hospital management efficiency, reduce medical errors, reduce the labor intensity of medical staff, and improve patient satisfaction. As the core part of the medical terminal, the medical LCD screen bears the main functions and directly affects its normal operation and performance.

FAQ

• Q: Can we customize the CTP? What cost will be included?
• A: Yes, We have 2 CTP bonding lines, support customize cover glass and do optical bonding.We combine touch screen technology with an LCD display module, which greatly saves your cost. One-stop service will be one of the reasons why choose us.

• Q: Products are in stock? How long can you deliver?
• A: Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks

• Q: How to control the quality of products?
• A: The company has a professional quality team, and all products are 100% inspected before shipment.

• Q: How long is the warranty and service of the product?
• A: Generally the warranty period is one year.

• Q: Can you provide product drawings and test reports?
• A: According to customer needs, our company can provide product-related information and test reports.
