Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Specifications
Speed Range :
/
Insulation Resistance :
2kMΩ
Current Range :
/
Current Resolution :
/
Time Resolution :
/
Place of Origin :
China
Brand Name :
kaemeasu
Model Number :
KM-IR10A
Display Type :
Digital Only
Measuring Range :
2000MΩ
Testing Voltage :
AC750V
Accuracy Class :
Class 1
Operating Temperature :
0℃~40℃
Dimensions :
175*110*70mm
Certificate :
CE RoHS Fcc
Power Supply :
5#Battery LR6(1.5V)*8 pcs
Packing :
Box
Price :
CN¥267.20/pieces
Description
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V





Customization Service


1. Send us logo or design file, we'll make effect picture for confirmation.

2. Sample production and confirmation.

3. Sample delivery and confirmation.

4. Mass production.

5. Finished product delivery.
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Product Description

Insulation Resistance Tester(KM-IR10A)

High accuracy insulation resistance testers can be used on a wide range of electrical equipment, from motors and generators to transformers and switch gear.
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Max display
1999
AC750V measurement
√
Low voltage display
√
Alarm function
Red light on
Overload protection
√
Unit symbol display
√
Auto power off
√
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
PRODUCT CONFIGURATION
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
AUTO Measurement
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V

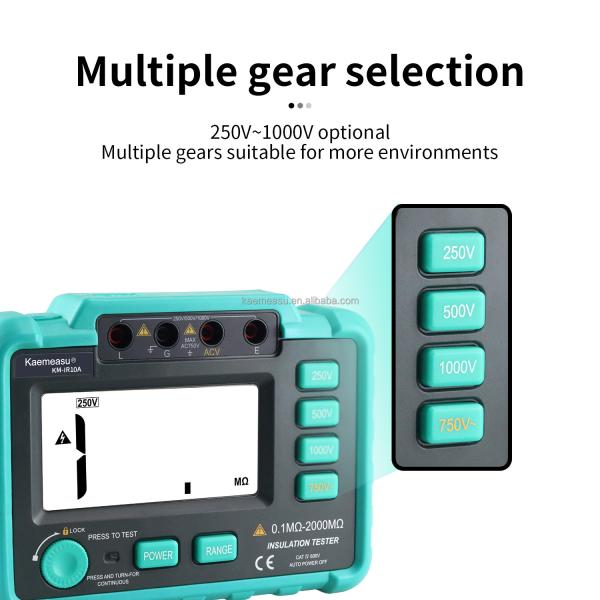

Multiple Gear Selection
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
LCD Backlight Screen
No
Item
Data
1
Output voltage
250V/500V/1000V
2
Short circuit current
＜1.6mA

3

Test current
250V(R=250kΩ) 1mA
500V(R=500kΩ) 1mA
1000V(R=1MΩ) 1mA


4


RANGE:
insulation resistance
250V : 0.1MΩ—20MΩ
500V : 0.1MΩ—50MΩ
1000V : 0.1MΩ—100MΩ

250V : 20MΩ—500MΩ
500V : 50MΩ—1000MΩ
1000V：100MΩ—2000MΩ
5
Median resistance
250V/500V : 2 MΩ
1000V: 5MΩ
6
Voltage measurement
AC750V
7
Hole plug position
Insulation resistance: L.E AC750V: ACV G
8
Over range display
Highest count display '1'
9
Power supply
5#Battery LR6（1.5V）×8 pcs
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Packing and Logistics
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Digital Insulation Resistance Tester with Overload Protection and Measuring Range up to 2000MΩ Class 1 250V 500V 1000V
Packing Information
Product Size/Weight
175*110*70mm/528g
Packing Size/Weight
170*70*205mm/927g
Carton Information
16 pcs/carton-43*34*36cm-15kg
