Part Number:D38999/20WF35PLB

Product Description:

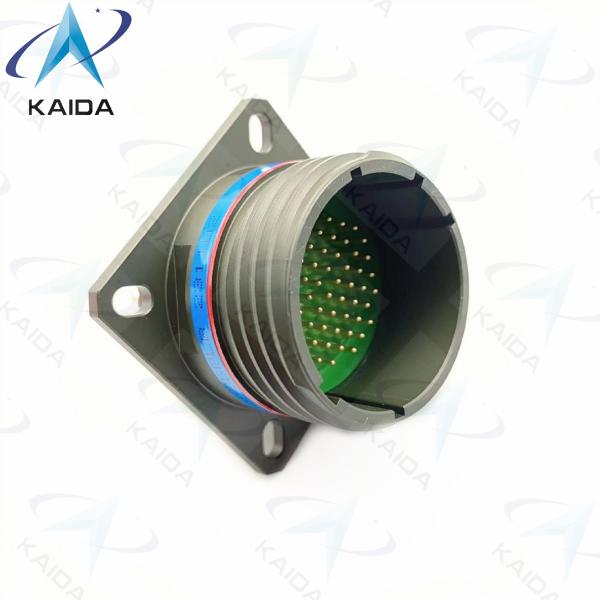

MIL-DTL-38999 Series Ⅲ is a reliable and robust military-grade connector designed to meet the rigorous requirements of the military, aircraft and aerospace industry. It is designed with an olive green cadmium finish, providing superior corrosion and corrosion resistance. The MIL-DTL-38999 Series Ⅲ features a total of 66 contacts, with a gold contact finish and 19 shell size for a reliable connection. The contact material is constructed of copper alloy for superior conductivity and durability, and it is rated for operating temperatures ranging from -55°C to +125°C. MIL-DTL-38999 Series Ⅲ is an ideal choice for applications requiring reliable and secure connection.

Features:

• Product Name: MIL-DTL-38999 Series Ⅲ
• Shell Size: 19
• Contact Type: Long PCB Tail
• Operating Temperature: -55°C To +125°C
• Connector Type: Receptacle
• Current Rating: 7 A

Technical Parameters:

Applications:

The KAIDA D38999/20WF35PLB Military-Detail-38999 Series Ⅲ connectors are designed for use in military and aerospace applications. With a voltage rating of 500V, the contact finish is gold and the shell size is 19. These connectors feature a long PCB tail contact type and a threaded coupling type. They are ideal for use in harsh and extreme environments where resistance to vibration, shock, and extreme temperatures is critical. The KAIDA D38999/20WF35PLB series is a reliable and cost-effective solution that is suitable for a range of applications, including aircraft, helicopters, ships, and land-based vehicles.

Customization:

Support and Services:

MIL-DTL-38999 Series Ⅲ offers technical support and service for its products. Technical support includes product information, design and development advice, troubleshooting, and product replacement. Service includes repair and maintenance, as well as product customization and modification.

Packing and Shipping:

MIL-DTL-38999 Series Ⅲ product packaging and shipping:

The product shall be packaged in accordance with MIL-STD-2073-1C. The components shall be protected from corrosion, shock, vibration, and other environmental damage during transit.

The product shall be shipped in a double-walled corrugated cardboard box or equivalent, with cushioning material between the box and the product. The box shall be sealed with a minimum of two layers of pressure sensitive tape.

The shipping container shall be clearly labeled with the following information:

• Product name
• Part number
• Quantity
• Destination address
• Shipping date

FAQ:

Q1: What is the brand name of MIL-DTL-38999 Series Ⅲ?
A1: The brand name of MIL-DTL-38999 Series Ⅲ is KAIDA.

Q2: What is the model number of MIL-DTL-38999 Series Ⅲ?
A2: The model number of MIL-DTL-38999 Series Ⅲ is D38999/20WF35PLB.

Q3: Where is MIL-DTL-38999 Series Ⅲ made?
A3: MIL-DTL-38999 Series Ⅲ is made in China.

Q4: What are the features of MIL-DTL-38999 Series Ⅲ?
A4: MIL-DTL-38999 Series Ⅲ features amazing durability, high temperature resistance, and robustness.

Q5: What is MIL-DTL-38999 Series Ⅲ used for?
A5: MIL-DTL-38999 Series Ⅲ is mainly used for military and aerospace applications.

D38999 Series 3 Datasheet.pdf
