Part Number:D38999/23YD19PN

Product Description:

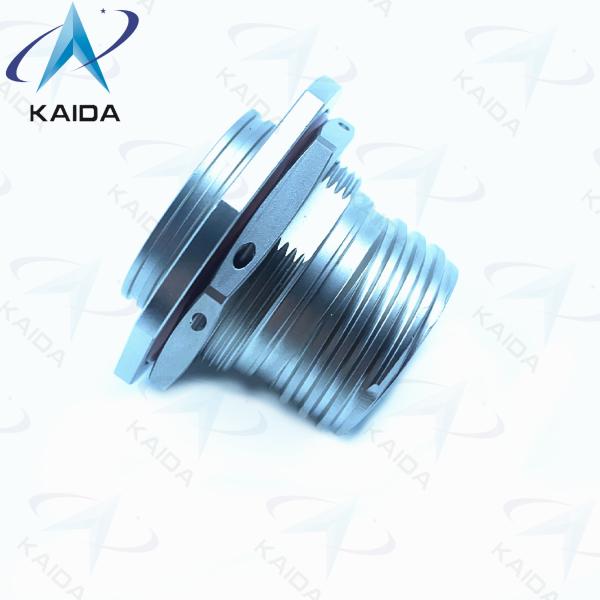

MIL-DTL-38999 Series Ⅲ is a military-grade detailed connector designed for harsh environment applications. The shell finish is stainless steel passivated which provides superior corrosion resistance. The voltage rating of these connectors is up to 500V, and the contact finish is gold which ensures a reliable connection for the demanding applications. The coupling type is threaded, and the connector type is hermetic jam nut receptacle for secure connection in extreme temperatures and environmental conditions.

Features:

• Product Name: MIL-DTL-38999 Series Ⅲ
• Coupling Type: Jam Nut Receptacle
• Shell Size: 15
• Contact Material: Copper Alloy
• Shell Finish: Stainless Steel Passivated
• Contact Finish: Gold

Technical Parameters:

Applications:

MIL-DTL-38999 Series Ⅲ is a military-grade Jam Nut Receptacle, designed and manufactured by KAIDA with model number D38999/23YD19PN. It features 19 contacts, a 500V voltage rating, a gold contact finish, a 15 shell size, and copper alloy contact material. MIL-DTL-38999 Series Ⅲ is designed to be used in demanding military and aerospace applications, offering superior performance and reliability. With its rugged construction and superior electrical and environmental performance, MIL-DTL-38999 Series Ⅲ is the ideal choice for applications that require maximum durability and reliability. It is designed to meet the most stringent requirements for military and aerospace applications, and is available in a variety of configurations to meet your specific needs.

Customization:

• Brand Name: KAIDA
• Model Number: D38999/23YD19PN
• Place of Origin: China
• Connector Type: Hermetic Jam Nut Receptacle
• Number of Contacts: 19
• Contact Type: Crimp
• Voltage Rating: 500V
• Shell Size: 15

Support and Services:

MIL-DTL-38999 Series Ⅲ offers a full range of technical support and service, including engineering design assistance, drawings, product troubleshooting, and technical assistance. Our team of engineers and technicians are available to help you with any questions you may have.

We also offer complete product testing and certification services, including environmental testing, shock and vibration testing, electrical safety testing, and more. Our quality assurance procedures ensure that your MIL-DTL-38999 Series Ⅲ products are up to the highest standards of quality and reliability.

Our team is committed to providing the best possible customer service, whether you need help with a specific application or just have a general question about MIL-DTL-38999 Series Ⅲ products. We are here to help you find the perfect solution for your needs.

Packing and Shipping:

MIL-DTL-38999 Series III packaging and shipping requirements are as follows:

• The product must be packaged in accordance with MIL-STD-2073-1D
• The product must be protected from environmental hazards, including static electricity, shock, and vibration
• The product must be labeled to identify its contents and the applicable MIL-DTL-38999 Series Ⅲ specifications
• The product must be shipped in accordance with MIL-STD-129P

D38999 Series 3 Datasheet.pdf
