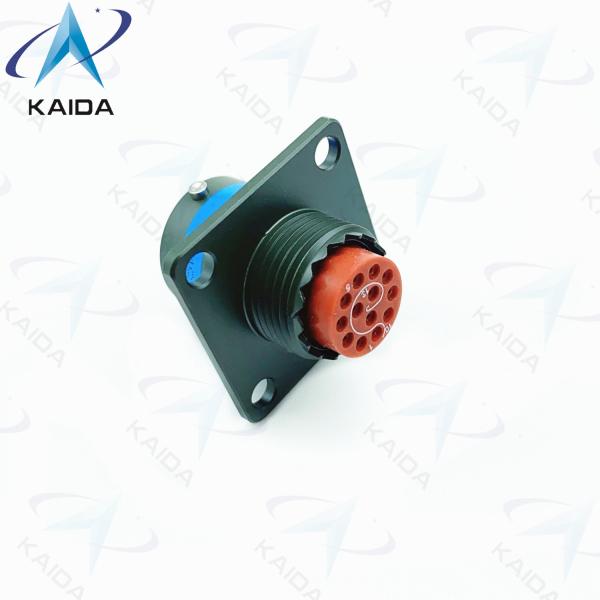

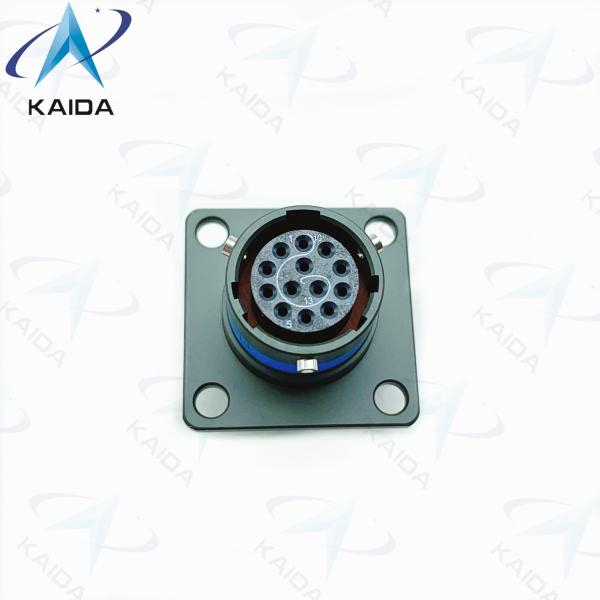

Crimp Wall Mount Receptacle with 500 V Voltage Rating for MIL-DTL-38999 Series Ⅱ.13 Female Pins.MS27497T10B35S.

Part Number:MS27497T10B35S

Product Description:

MIL-DTL-38999 Series Ⅱ is a high performance, reliable and cost-effective crimp wall mount receptacle. It is designed to meet the strict requirements of military and aerospace applications with its 13 contacts, 500 V voltage rating, and gold plated contact termination. The JY27497T10B35S is the ideal solution for those who need a reliable, cost-effective and efficient connector. With its superior durability, high performance and corrosion resistance, this connector is the perfect choice for any military or aerospace application.

Features:

• Product Name: MIL-DTL-38999 Series Ⅱ
• Operating Temperature: -55 To 125 °C
• Contact Material: Copper Alloy
• Insulator Material: Thermoplastic
• Contact Plating: Gold
• Gender: Crimp Wall Mount Receptacle

Technical Parameters:

Applications:

KAIDA's MIL-DTL-38999 Series Ⅱ receptacle, Model Number MS27497T10B35S, is a reliable and durable product manufactured in China. It is designed with a current rating of 7.5 A, an operating temperature range of -55 To 125 °C, and 13 contacts with a gold plating. The MIL-DTL-38999 Series Ⅱ receptacle is suitable for many applications, such as aerospace, military, and industrial markets. It is designed to meet the stringent requirements of MIL-DTL-38999 Series Ⅱ specification. The product features a robust construction and is resistant to harsh environmental elements, making it an ideal choice for any application. With its excellent performance and durability, KAIDA's MIL-DTL-38999 Series Ⅱ receptacle is the perfect choice for any demanding environment.

Customization:

KAIDA's MIL-DTL-38999 Series Ⅱ MS27497T10B35S Crimp Wall Mount Receptacle is a reliable and durable contact connector made of copper alloy with a 7.5 A current rating and an operating temperature of -55 To 125 °C. The shell material is aluminum alloy with a size of 10, and the color is olive green cadmium.

Support and Services:

MIL-DTL-38999 Series Ⅱ offers technical support and service to ensure optimal performance and long-term reliability of these connectors.

Technical support includes a knowledgeable customer service team that provides product selection advice, troubleshooting assistance and installation support. The services provided by our team are designed to help you maximize the benefits of using MIL-DTL-38999 Series Ⅱ.

In addition to technical support, we also provide repair and maintenance services for MIL-DTL-38999 Series Ⅱ. Our experienced technicians are available to provide on-site repair and maintenance services to ensure that your connector is in good working condition.

Packing and Shipping:

MIL-DTL-38999 Series Ⅱ packaging and shipping includes the following steps:

• Product is wrapped in anti-static material.
• Product is placed in a static-free box.
• The box is secured with a shock-resistant cushion.
• The box is then placed in an outer shipping container.
• The outer container is air- or water-tight.
• The outer container is then sealed with a tamper-proof seal.
• The outer container is labeled with shipping information.

FAQ:

Q: What is MIL-DTL-38999 Series Ⅱ?

A: MIL-DTL-38999 Series Ⅱ is a type of electrical connector designed to meet military specification MIL-DTL-38999. It is commonly used in applications such as aviation, military, and industrial.

Q: What is the brand name of MIL-DTL-38999 Series Ⅱ?

A: Our MIL-DTL-38999 Series Ⅱ is branded KAIDA and its model number is MS27497T10B35S.

Q: Where is MIL-DTL-38999 Series Ⅱ manufactured?

A: Our MIL-DTL-38999 Series Ⅱ is manufactured in China.

Q: What are the features of MIL-DTL-38999 Series Ⅱ?

A: MIL-DTL-38999 Series Ⅱ features a robust construction and superior performance. It has a high-temperature rating, a high-voltage rating, and is resistant to shock, vibration, salt spray and corrosion.

Q: What are the applications of MIL-DTL-38999 Series Ⅱ?

A: MIL-DTL-38999 Series Ⅱ is suitable for a wide variety of applications, including aviation, military, and industrial.
