Specifications
Brand Name :
Kailaili
Model Number :
DJ-100
Certification :
CE, ISO
Place of Origin :
Zhejiang Provice, China(Mainland)
MOQ :
1 Set
Price :
$997~1000 per pcs
Supply Ability :
50000sets per year
Delivery Time :
20~30 work days
Packaging Details :
Export wooden packing
Size :
3120*620*680mm
Package :
Plywood case
Refrigerating capacity :
18.8kw
Cooling surface :
100 square meters
Fan number :
4 pcs
Air direction :
Side outlet
Fan Diameter: :
500mm
Fin distance :
9mm
Moter Power :
4*400w
Air pressure :
167 Pa
Payment Terms :
T/T
Description

Please contact us by below ways:
Sales Engineer: Ms Michelle

Mobile Phone: +86-18457540188

Email: michelle-kailaili@outlook.com

Wechat/Skype: +8618457540188



Product features:

DJType is used for more than a cold storage temperature is -35 DEG C, cooling capacity range 2.25~200KW.
1. Kailaili Air Cooler sheet metal pasrt series all use hydraulic or hydraulic punch one-time punched,good appearance,strength structure.
2. Sheet metal parts are crimped aluminum,spay plate,stainless steel plate can be choosed.
3. Use strong insulating U tubular heater pipe,short defrosting time,high efficiency,also can according customer's request to choose the water defrosting or hot freon defrosting.
4. Coil pipe use the thickness cooper tube, improve the service life, aluminum fin use hign efficiency aluminum sheet, through the pipe expansion and impinges on the cooper tube, the effect of heat transfer increase to the top.
5. Using hign efficiency fan, big air volume, far range, low noise, low power consumption, long service life, hign reliability.
6. Product all through the holding pressure filling nitrogen before product leave the factory

Kailaili Refrigeration System is widely used in food, supermarkets, hotels, aquatic products, pharmaceutical, biological, chemical, industrial and mining enterprises and other industries. It can be customized according to customer requirements and library features, the constant pursuit of excellence, has the ability to meet the special requirements of customers, to win customer satisfaction.

If you have any quick freezing cold room project, please send us detailed information, including: cold room sizes, designed freezing room temperature, usage, load capacity and building drawing...
Our experienced engineer will give you a full, scientific and most economical solution.
If you have any further questions or requests, please feel free to contact us.
OEM and customizing service welcomed.


DJ Techniacal parameter:

ModelRef capacity(kw)Cooling area (㎡)Fin spacing(mm)Fan motorDefrost heater
QtyDia(mm)Air volume (m³)Pressure(pa)Power(w)voltage(v)Coil(kw)Catchment(kw)Power supply
DJ-2.5/102.510923502*230090150w380v/50hz11220v/50hz
DJ-3/1531523502*230090150w21
DJ-4/2042024002*3200100200w2.41.2
DJ-5.1/305.13024002*3200100200w2.41.2
DJ-7.8/407.84025002*6000167550w61.5
DJ-9.8/559.85525002*6000167550w7.51.5
DJ-12.8/7012.87035003*6000167550w81.6
DJ-15.7/8515.78535003*6000167550w8.51.7
DJ-18.8/10018.810045004*6000167550w102
DJ-21.6/11521.611545004*6000167550w112.2
DJ-23.9/14023.914026002*100002501.5kw161.6
DJ-29/1702917036003*100002501.5kw171.7
DJ-35.9/21035.921036003*100002501.5kw22
DJ-50.9/25050.925046004*100002501.5kw2.22.2
DJ-61/3006130046004*100002501.5kw2.22.2

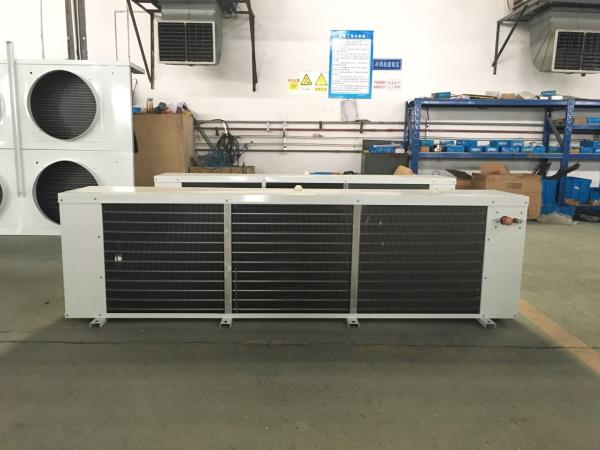

Photo shows:
Low Temperature  Air Unit Cooler Ceiling mounted evaporator coil
Low Temperature  Air Unit Cooler Ceiling mounted evaporator coil


Low Temperature  Air Unit Cooler Ceiling mounted evaporator coil
Low Temperature  Air Unit Cooler Ceiling mounted evaporator coil

Low Temperature  Air Unit Cooler Ceiling mounted evaporator coil
Low Temperature  Air Unit Cooler Ceiling mounted evaporator coil

FAQ:
Q1: Are you a factory or a trading company?
A1: We are a factory.
Q2: Where is your factory located?
A2: Our factory is located in Shengzhou City, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100 km from airport to our factory.
Q3: Can we visit your factory before place an order?
A3: We sincerely welcome you and your team to visit our factory to check our products. We will arrange hotel and pick you up at the airport / train station.
Q4: Do you charge sample cost?
A4: Sample charge is required, but we will deduct it from your first order, but the order amount would be reached the specified level of our company.
Q5: What is the payment terms?
A5: We accept T/T, L/C, D/P.
Q6: How many days for delivery?
A6: It all depends on your quantity, usually 15~40 days.
Q7: How many colors for powder painting?
A7: We have blue, Bitzer colour, Black and grey for your choice.
Q8: What is the packiing method?
A8: Each product will be put in a wooden case on pallet.
Q9: How about the warranty?
A9: We will offer one year warranty and life-time service of our products.
