Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils
Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils
Specifications
Brand Name :
Kailaili
Model Number :
FV-300
Certification :
CE, ISO9001:2000
Place of Origin :
Zhejiang, China
MOQ :
1 pcs
Price :
$1090~1147 per pcs
Supply Ability :
1000 pcs per month
Delivery Time :
30 days after payment
Packaging Details :
Wooden Box
Capacity :
35HP
Package :
Wooden Box
Fan Qty :
3 pcs
Overall Size :
2476*990*940
Description
Product Description
V type air cooled condenser

1. MOQ:1PCS
2. Payment: 30%TT in advance,70% see the B/L copy
3: Delivery time: within one month after receive the payment.
4. Port of loading: Ningbo port.

Product feature:

1: Cover an small area and saving space.
2: Top outlet air flow,fan is equipped with one to four motors.uniform heat dissipation,can be matched in hermetic and semi-hermetic condensing unit
3: Applicable to a wide range of cooling capacity.
FV Type outlet on the condenser Technical parameter:
Model Heat exchange (KW) Surface (㎡) Fan motor Interface pipe dia cooper pipe arrangement
Qty Dia (mm) Air volume (m³) Power(w) Voltage (v) Rotation speed (rpm) Air inlet (mm) Liquid outlet (mm)
FNV-100 29.5 100 2 500 5800*2 380 380 1380 28 19 3*12
FNV-120 36.9 120 2 500 5800*2 380 380 1380 28 19 4*12
FNV-160 41.4 160 2 500 5800*2 380 380 1380 28 19 4*12
FNV-180 47.5 180 2 500 6500*2 600 380 1380 28 19 4*14
FNV-200 52.5 200 2 600 7800*2 750 380 1380 32 25 4*16
FNV-220 58.5 220 2 600 7800*2 750 380 1380 32 25 4*16
FNV-240 64.1 240 2 600 7800*2 750 380 1380 32 25 4*16
FNV-260 70.5 260 3 550 6500*3 600 380 1380 32 25 4*16
FNV-280 76 280 3 550 6500*3 600 380 1380 32 25 4*16
FNV-300 82.5 300 3 600 7800*3 750 380 1380 38 28 4*16
FNV-320 88.5 320 3 600 7800*3 750 380 1380 38 28 4*16
FNV-360 97.5 360 3 600 7800*3 750 380 1380 38 28 4*16
FNV-400 108 400 3 630 10000*3 800 380 1380 50 32 4*18
FNV-450 121.5 450 3 630 10000*3 800 380 1380 50 32 4*18

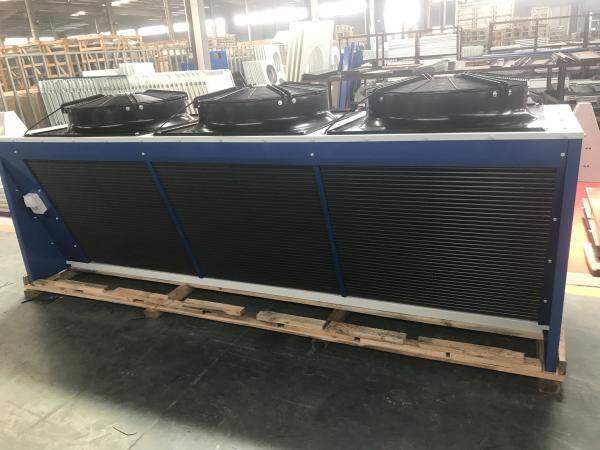

Photo shows:

Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils

Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils

Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils

Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils



Kailaili Refrigeration System is widely used in food, supermarkets, hotels, aquatic products, pharmaceutical, biological, chemical, industrial and mining enterprises and other industries. It can be customized according to customer requirements and library features, the constant pursuit of excellence, has the ability to meet the special requirements of customers, to win customer satisfaction.


Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils

Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils

Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils

Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils

Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils

Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils

If you have any quick freezing cold room project, please send us detailed information, including: cold room sizes, designed freezing room temperature, usage, load capacity and building drawing...

Our experienced engineer will give you a full, scientific and most economical solution.

If you have any further questions or requests, please feel free to contact us.

OEM and customizing service welcomed.
