Product features:
Defrost methods: Water defrosting
1. Kailaili Air Cooler sheet metal pasrt series all use hydraulic or hydraulic punch one-time punched,good appearance,strength structure.
2. Sheet metal parts are crimped aluminum,spay plate,stainless steel plate can be choosed.
3. Use strong insulating U tubular heater pipe,short defrosting time,high efficiency,also can according customer's request to choose the water defrosting or hot freon defrosting.
4. Coil pipe use the thickness cooper tube, improve the service life, aluminum fin use hign efficiency aluminum sheet, through the pipe expansion and impinges on the cooper tube, the effect of heat transfer increase to the top.
5. Using hign efficiency fan, big air volume, far range, low noise, low power consumption, long service life, hign reliability.
6. Product all through the holding pressure filling nitrogen before product leave the factory
Kailaili Refrigeration System is widely used in food, supermarkets, hotels, aquatic products, pharmaceutical, biological, chemical, industrial and mining enterprises and other industries. It can be customized according to customer requirements and library features, the constant pursuit of excellence, has the ability to meet the special requirements of customers, to win customer satisfaction.
Techniacal parameter:
Model | Ref capacity(kw) | Cooling area (㎡) | Space of fins(mm) | Fan motor | Heating pipe | ||||||
Qty | Dia(mm) | Air volume (m³/h) | Air Pressure(pa) | Power(w) | voltage(v) | Coil(kw) | Voltage (v) | ||||
LL-410 | 82 | 420 | 4.5 | 3 | 650 | 3*13000 | 320 | 2.2 | 380 | 12 | 220v/50hz |
LD-310 | 62 | 310 | 6 | 3 | 650 | 3*13000 | 320 | 2.2 | 380 | 24 | 220v/50hz |
LJ-210 | 42 | 210 | 9 | 3 | 650 | 3*13000 | 320 | 2.2 | 380 | 24 | 220v/50hz |
LS-160 | 32 | 160 | 12 | 3 | 650 | 3*13000 | 320 | 2.2 | 380 | 24 | 220v/50hz |
LL-470 | 94 | 500 | 4.5 | 3 | 650 | 3*13000 | 320 | 2.2 | 380 | 18 | 220v/50hz |
LD-360 | 72 | 360 | 6 | 3 | 650 | 3*13000 | 320 | 2.2 | 380 | 24 | 220v/50hz |
LJ-250 | 50 | 250 | 9 | 3 | 650 | 3*13000 | 320 | 2.2 | 380 | 24 | 220v/50hz |
LS-180 | 36 | 180 | 12 | 3 | 650 | 3*13000 | 320 | 2.2 | 380 | 24 | 220v/50hz |
LL-550 | 110 | 550 | 4.5 | 3 | 700 | 3*15000 | 320 | 3 | 380 | 18 | 220v/50hz |
LD-400 | 80 | 400 | 6 | 3 | 700 | 3*15000 | 320 | 3 | 380 | 24 | 220v/50hz |
LJ-300 | 60 | 300 | 9 | 3 | 700 | 3*15000 | 320 | 3 | 380 | 24 | 220v/50hz |
LS-200 | 40 | 200 | 12 | 3 | 700 | 3*15000 | 320 | 3 | 380 | 24 | 220v/50hz |
LL-660 | 132 | 660 | 4.5 | 3 | 700 | 3*15000 | 320 | 3 | 380 | 21 | 220v/50hz |
LD-500 | 100 | 500 | 6 | 3 | 700 | 3*15000 | 320 | 3 | 380 | 26 | 220v/50hz |
LJ-330 | 66 | 330 | 9 | 3 | 700 | 3*15000 | 320 | 3 | 380 | 26 | 220v/50hz |
LS-250 | 50 | 250 | 12 | 3 | 700 | 3*15000 | 320 | 3 | 380 | 26 | 220v/50hz |
LL-800 | 160 | 800 | 4.5 | 4 | 650 | 4*13000 | 320 | 2.2 | 380 | 21 | 220v/50hz |
LD-600 | 120 | 600 | 6 | 4 | 650 | 4*13000 | 320 | 2.2 | 380 | 26 | 220v/50hz |
LJ-400 | 80 | 400 | 9 | 4 | 650 | 4*13000 | 320 | 2.2 | 380 | 26 | 220v/50hz |

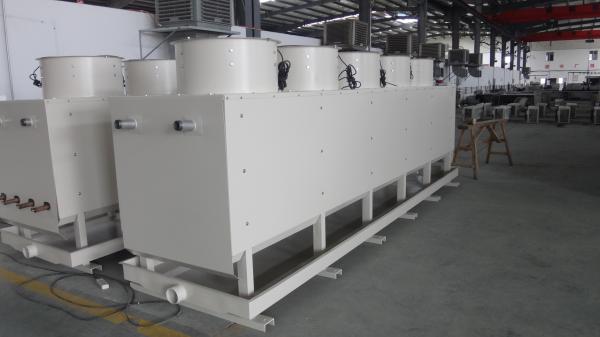

Photo shows:
Mobile Phone: +86-18457540188
Email/Skype: michelle-kailaili@outlook.com
Whatsapp: +8618457540188
Add:No.138,PudongAvenue,EconomicDevelopment Zone,Shengzhou City,Zhejiang Province, China.
If you have any quick freezing cold room project, please send us detailed information, including: cold room sizes, designed freezing room temperature, usage, load capacity and building drawing...
Our experienced engineer will give you a full, scientific and most economical solution.
If you have any further questions or requests, please feel free to contact us.
OEM and customizing service welcomed.
