Specifications
Brand Name :
Kailaili
Model Number :
DL-40
Certification :
CE, ISO
Place of Origin :
Zhejiang Provice, China(Mainland)
MOQ :
1 Set
Price :
$258~272 per pcs
Supply Ability :
50000sets per year
Delivery Time :
20~30 work days
Packaging Details :
Export wooden packing
Size :
1520*370mm
Package :
Wooden Box
Refrigerating capacity :
8.2kw
Cooling surface :
40 square meters
Fan number :
2 pcs
Air direction :
Side outlet
Fan Dia :
Dia 400mm
Fin distance :
4.5mm
Payment Terms :
T/T
Description

Please contact us by below ways:
Sales Engineer: Ms Michelle

Mobile Phone: +86-18457540188

Email: michelle-kailaili@outlook.com

Wechat/Skype: +8618457540188




Product features:

DL Type is used for more than a cold storage temperature is -5 DEG C, cooling capacity range 2.25~200KW.
1. Kailaili Air Cooler sheet metal pasrt series all use hydraulic or hydraulic punch one-time punched,good appearance,strength structure.
2. Sheet metal parts are crimped aluminum,spay plate,stainless steel plate can be choosed.
3. Use strong insulating U tubular heater pipe,short defrosting time,high efficiency,also can according customer's request to choose the water defrosting or hot freon defrosting.
4. Coil pipe use the thickness cooper tube, improve the service life, aluminum fin use hign efficiency aluminum sheet, through the pipe expansion and impinges on the cooper tube, the effect of heat transfer increase to the top.
5. Using hign efficiency fan, big air volume, far range, low noise, low power consumption, long service life, hign reliability.
6. Product all through the holding pressure filling nitrogen before product leave the factory


Kailaili Refrigeration System is widely used in food, supermarkets, hotels, aquatic products, pharmaceutical, biological, chemical, industrial and mining enterprises and other industries. It can be customized according to customer requirements and library features, the constant pursuit of excellence, has the ability to meet the special requirements of customers, to win customer satisfaction.
DL Techniacal parameter:

Model Ref capacity(kw) Cooling area (㎡) Fin spacing(mm) Fan motor Defrost heater
Qty Dia(mm) Air volume (m³) Pressure(pa) Power(w) voltage(v) Coil(kw) Catchment(kw) Power supply
DL-4.2/20 4.2 20 4.5 2 350 2*2300 90 150w 380v/50hz 1 1 220v/50hz
DL-5.2/25 5.2 25 2 350 2*2300 90 150w 2 1
DL-8.2/40 8.2 40 2 400 2*3200 100 200w 2.4 1.2
DL-11.5/55 11.5 55 2 400 2*3200 100 200w 2.4 1.2
DL-16.7/80 16.7 80 2 500 2*6000 167 550w 3 1.5
DL-21.9/105 21.9 105 2 500 2*6000 167 550w 3 1.5
DL-25.8/125 25.8 125 3 500 3*6000 167 550w 3.2 1.6
DL-33.6/160 33.6 160 3 500 3*6000 167 550w 3.4 1.7
DL-38.7/185 38.7 185 4 500 4*6000 167 550w 4 2
DL-44/210 44 210 4 500 4*6000 167 550w 4.4 2.2
DL-52.9/260 52.9 260 2 600 2*10000 250 1.5kw 9.6 1.6
DL-67.2/340 67.2 340 3 600 3*10000 250 1.5kw 10.2 1.7
DL-83.4/410 83.4 400 3 600 3*10000 250 1.5kw 12 2
DL-92.4/470 92.2 460 4 600 4*10000 250 1.5kw 13.2 2.2
DL-112/550 112 550 4 600 4*10000 250 1.5kw 13.1 2.2

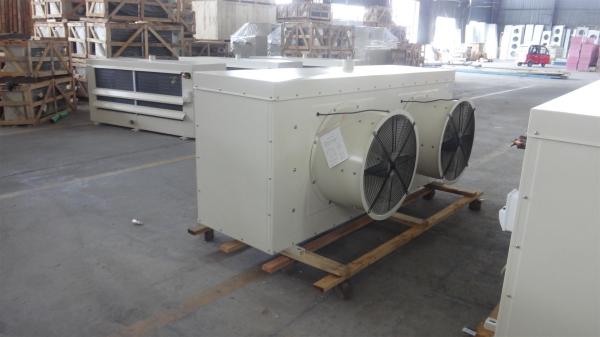

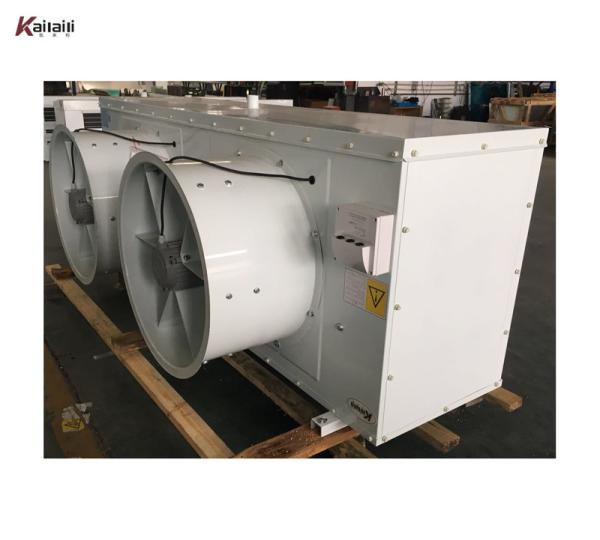

Photo shows:


Factory Price!!! Air  Unit Cooler/ Ceiling mounted side outlet evaporator (with electric defrosting)
Factory Price!!! Air  Unit Cooler/ Ceiling mounted side outlet evaporator (with electric defrosting)


Factory Price!!! Air  Unit Cooler/ Ceiling mounted side outlet evaporator (with electric defrosting)
Factory Price!!! Air  Unit Cooler/ Ceiling mounted side outlet evaporator (with electric defrosting)



Factory Price!!! Air  Unit Cooler/ Ceiling mounted side outlet evaporator (with electric defrosting)
Factory Price!!! Air  Unit Cooler/ Ceiling mounted side outlet evaporator (with electric defrosting)

FAQ:
Q1: Are you a factory or a trading company?
A1: We are a factory.
Q2: Where is your factory located?
A2: Our factory is located in Shengzhou City, zhejiang province,near hangzhou and Ningbo, about one and half an hour to hangzhou and Ningbo.
Q3: Can we visit your factory before place an order?
A3: We sincerely welcome you and your team to visit our factory to check our products. We will arrange hotel and pick you up at the airport / train station.
Q4: Do you charge sample cost?
A4: Sample charge is required, but we will deduct it from your first order, but the order amount would be reached the specified level of our company.
Q5: What is the payment terms?
A5: We accept T/T, L/C.
Q6: How many days for delivery?
A6: It all depends on your quantity, usually 15~40 days.
Q7: How many colors for powder painting?
A7: We have blue, Bitzer colour, Black and grey for your choice.
Q8: What is the packiing method?
A8: Each product will be packaged in standard export wooden case .
Q9: How about the warranty?
A9: We will offer one year warranty and life-time service of our products.
