Specifications
Brand Name :
KAIXIN
Model Number :
KX-Alloy MO400
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
200KG
Price :
To negotiate
Payment Terms :
T/T, L/C
Supply Ability :
50~80 TONS per MONTH
Delivery Time :
45~60days
Packaging Details :
Wooden Box, size as per guests' request
Shape :
Wire,Strip,Rod,Tube,Plate
Alloy Type :
Corrosion Resistant Alloy
Raw Materials :
Ni: ≥63%; Cu:28.0-34.0%
Executive Standard :
ASTM B164，ASTM B165，ASTM B127，ASTM B564
Delivery status :
Sosoloid
Application :
Marine and Chemical Industry
Features :
Corrosion resistance, high strength and non-magnetic
Size :
Negotiable
Description

KX NO4400 Sheet Welding Wire Strip Round Bar Light Rod Process Performance On Monel Alloy

Product Description and Application

NO4400 is also known as UNS N04400,NCu30, W.N,2.4360, Alloy400, NW4400, NCU30-LC

NO4400 alloy has excellent corrosion resistance to fluorine gas, hydrochloric acid, hydrofluoric acid and their compounds. At the same time, it is more resistant to corrosion in the sea than copper-based alloys. Monel400 is resistant to corrosion in hydrochloric acid with a concentration of less than 85%. Monel400 is one of the main raw materials in hydrochloric acid. Monel400 alloy is not only corrosion-resistant, but also less porous corrosion, intergranular corrosion and so on. The corrosion rate is lower than 0.025mm/a. Monel400 in the air continuous operation temperature is generally around 600℃ and the corrosion rate is less than 0.026mm/a. in high temperature vapor.

Ammonia: Because of the high nickel composition of Monel400 alloy, it can withstand the corrosion of aqueous ammonia and ammonolysis standard below 585℃,which can manufacture all kinds of parts with complex shapes and has been widely used in aerospace, nuclear energy, petroleum industry and extrusion mold in the above temperature range.

Process Performance and Requirements

  • Product Fusion Process

Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)

  • Product Chemical Composition

Alloy % Ni Cu Fe C Mn Si S
NO4400 Min 63 28 - - - - -
Max - 34 2.5 0.3 2 0.5 0.024

  • Product Physical Property

Density 8.83g/cm3
Fusing Temperature 1300℃~1390℃

  • Product Mechanical Property

Alloy State Monel 400
Tensile Strength (Rm N/mm2) 480
Yield Strength RP0.2N/mm2 170
Extension A5% 35

  • Productive Process

NO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire Strip

  • Professional Customization

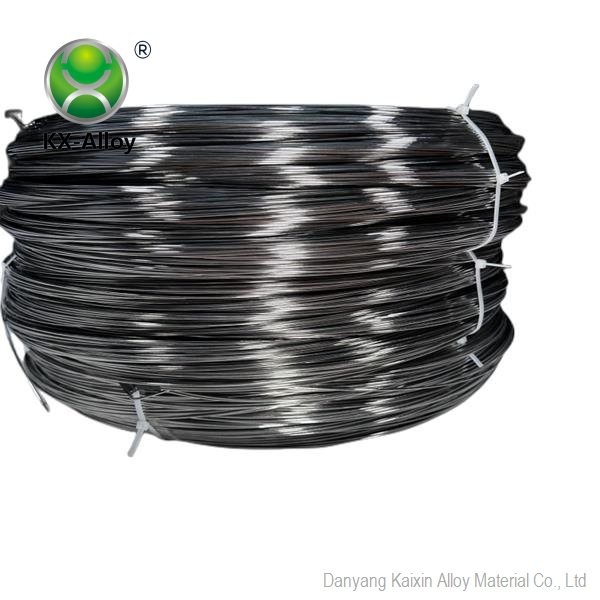

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)
Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm
Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm

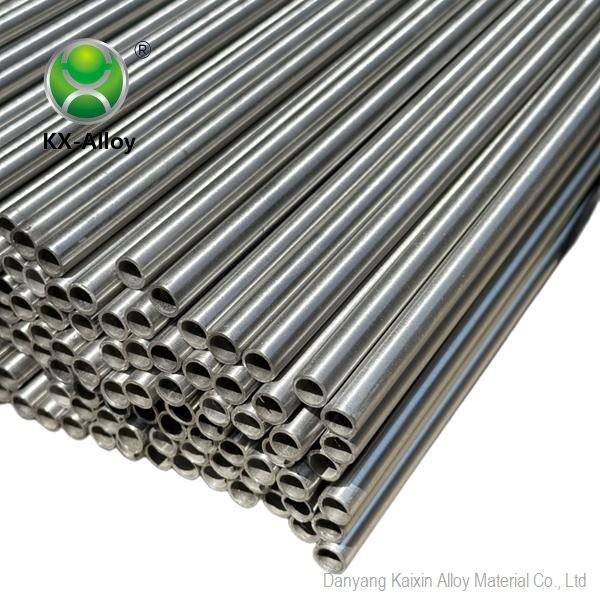

Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm

NO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire Strip

NO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire StripNO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire StripNO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire StripNO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire Strip

NO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire Strip
