N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
Specifications
Brand Name :
KAIXIN
Model Number :
KX-Alloy52
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
200KG
Price :
To negotiate
Payment Terms :
T/T, L/C
Supply Ability :
50~80TONS per MONTH
Delivery Time :
45~60days
Packaging Details :
Wooden Box, size as per guests's request
Shape :
Wire,Strip,Rod,Tube,Plate
Alloy Type :
Nickel-iron Alloy
Raw Materials :
NI50.5%,Fe Rem
Executive standard :
ASTM
Delivery State :
Soft State
Application :
For automobile industry
Features :
There is a certain linear expansion coefficient within the given temperature range
Size :
Negotiable
Description

KX Alloy 52 Corrosion Resistant Alloy Light Rod On Expansion Alloy

Product Description and Application

Alloy 52 is also known as Alloy 52,Glass sealing 52,Pernifer 50,52H(E),N14052.
Alloy 52 Fe-Ni constant expansion alloy is a series of constant expansion alloys that can match soft glasses and ceramics with different expansion coefficients in a given temperature range by adjusting nickel content. The expansion coefficient and Curie point increase with the increase of nickel content. This alloys is widely used as sealing structural materials in electric vacuum industry.

Process Performance and Requirements

  • Product Fusion Process


Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)

  • Product Chemical Composition

Alloy Grade C P S Mn Si Al Co Ni Fe
Alloy52 ≤0.05 0.020 0.020 0.60 0.30 ---- --- 51.5～ 52.5 Rem

  • Product Physical Property

Density 8.3g/cm3
Melting Point 1430℃

  • Product Mechanical Property


Wire Tensile Strength

State Code State Tensile Strength/MPa
R Soft <590
I Hard >820


Strip Tensile Strength

State Code State Tensile Strength/MPa
R Soft <570
I Hard >700

  • Product Average Coefficient of Linear Expansion
Alloy Grade Sample Heat Treatment Institution Average Linear Expansion Coefficient α/(10-6/ K)
20～300 oC 20～400 oC 20～450 oC
Alloy 52 It is heated to 850±20 oC in hydrogen atmosphere, Keeps warm for 1 hour and cooled to less than 200 oC at a speed of no more than 5 oC/ min 9.8～ 11.0 9.81～ 11.0 -------

  • Productive Process


N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod

  • Professional Customization

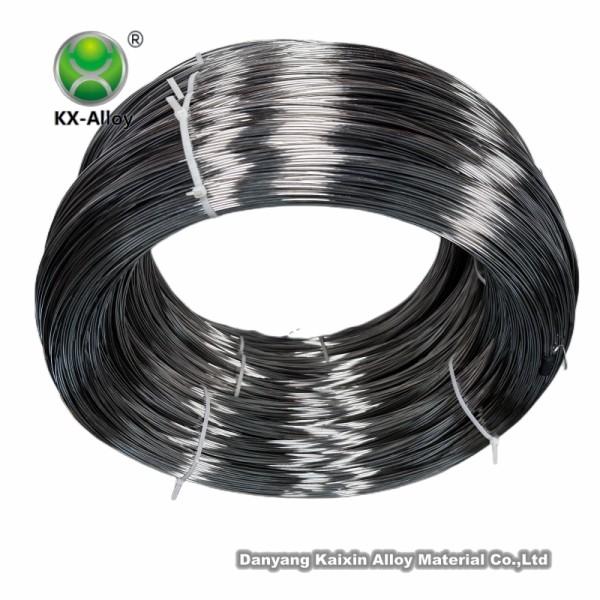

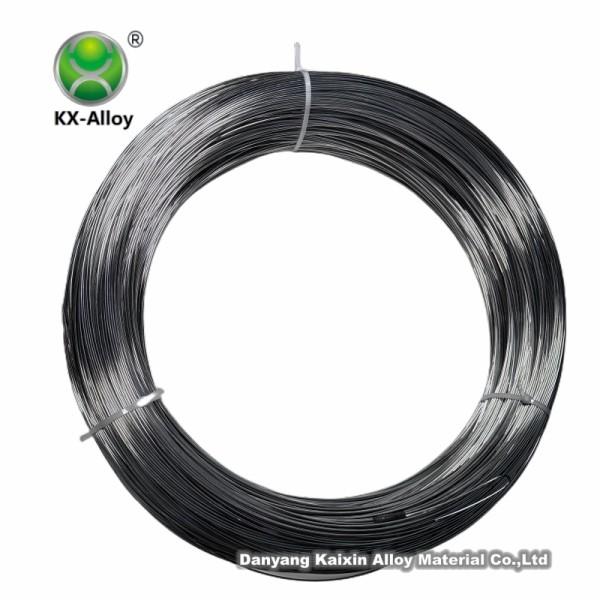

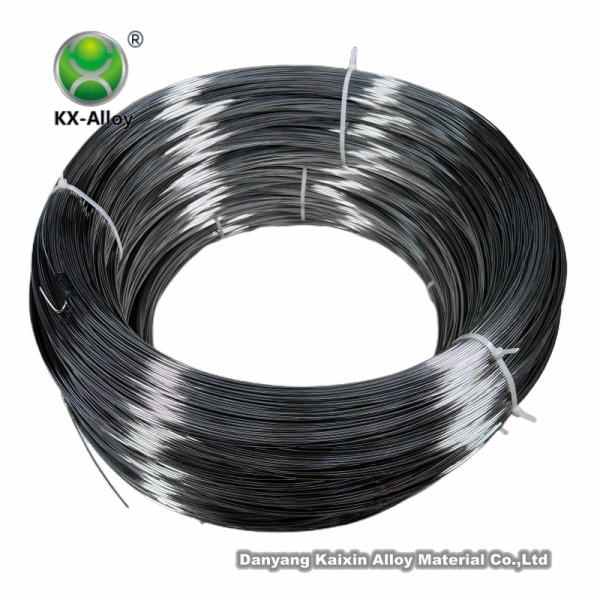

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)

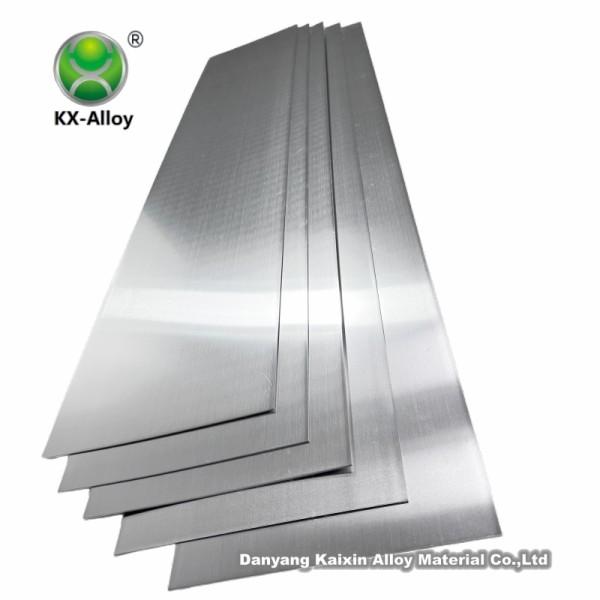

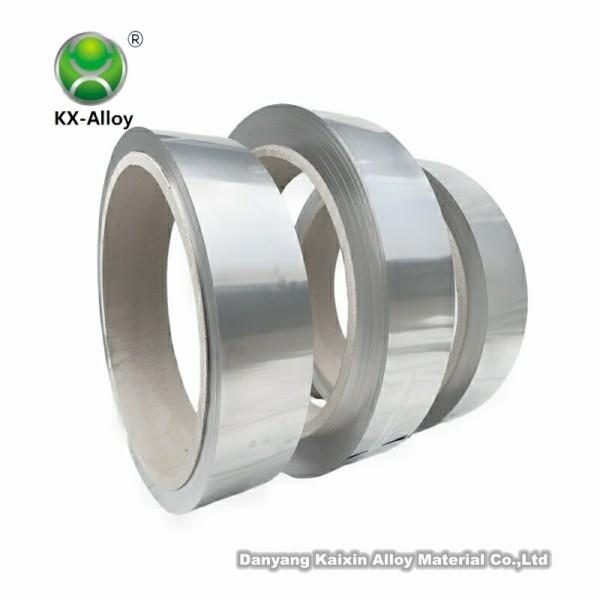

Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)

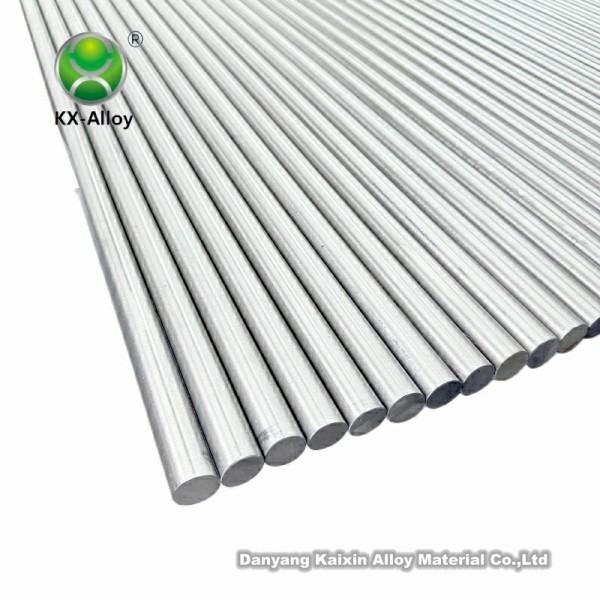

Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm
Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm

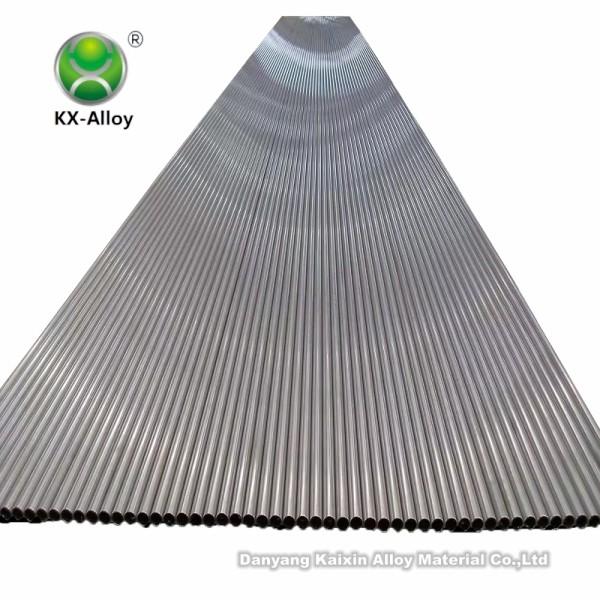

Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm


N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light RodN14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light RodN14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light RodN14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light RodN14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light RodN14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light RodN14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
