Specifications
Brand Name :
KAIXIN
Model Number :
KX-Alloy605
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
200KG
Price :
To negotiate
Payment Terms :
T/T, L/C
Supply Ability :
50~80TONS per MONTH
Delivery Time :
45~60days
Packaging Details :
Wooden Box, size as per guests request
Shape :
Wire, Strip, Rod, Tube, Plate
Alloy Type :
Nickel-based Deformed Superalloy
Raw Materials :
NI9-11%,CR19-21%,W14-16%,MO Rem
Executive Standard :
ASTM
Delivery State :
Sosoloid
Application :
Manufacture engine guide blade, turbine outer ring, outer wall, swirler, sealing plate and etc parts
Features :
Excellent stability and high strength
Size :
Negotiable
Description

KX GH5605 Uns Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy

Product Description and Application

GH5605 is also known as L605,UNSR30605,GH605

GH5605 is a Co-Cr-Ni based solid solution enhanced deformation superalloy, its use temperature is below 1000℃. Cobalt-based superalloy GH5605 is a cobalt base alloy strengthened by solution of 20%Cr and 15%W(percent mass). It has medium durability and creep strength below 815℃, excellent oxidation resistance below 1 090℃, and satisfactory process properties such as forming and welding. It is a key material for aero engine, rocket engine, naval ship and industrial gas turbine. Its development and production status is one of the symbols on the metal materials development level in a country. It is used for manufacturing the high temperature parts of aero engine guide blade, turbine outer ring, outer wall, swirler and sealing plate.

Process Performance and Requirements

  • Product Fusion Process

Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)

  • Product Chemical Composition

Composition Fe C Si Mn P S Cr Ni W More
Min - 0.05 - 1 - - 19 9 14 Co:Rem
Max 3 0.15 0.4 2 0.04 0.03 21 11 16

  • Product Physical Property

Density p=9.13g/cm3
Melting Temperature Range 1330℃-1410℃

  • Product Mechanical Property

Variety Tensile Property in the Room Temperature

Hardness

HV

 815℃ Durability Grain Size/Grade Other properties
MPa MPa MPa MPa t/h %
Middle Plate,Sheet,Strip ≧890 370-550 ≧35 ≤290 165 ≧24 ≧10 ≧2.5(1) Bend

Cold Hard Strip

Grade A

 ≧1500 ≧1300 ≧5 410-480 --- ---- --- ≧9 Bend

Cold Hard Strip

Grade B

 ≧1700 ≧1500 ≧3 485-560 --- --- --- ≧10 Bend
Bar ≧860 ≧340 ≧35 ≤ 282 165 ≧ 23 ≧10 ≧2(0) ---
Ring ≧860 ≧310 ≧30 ≤ 248 165 ≧ 24 ≧10 ≧2(0) ---

  • Productive Process

GH5605 UNS High Temp Alloys Wire / Strip / Rod / Tube / Plate

  • Professional Customization

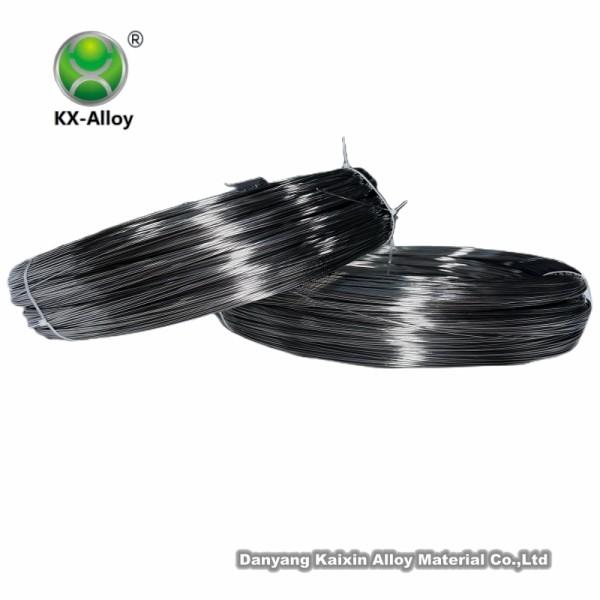

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)

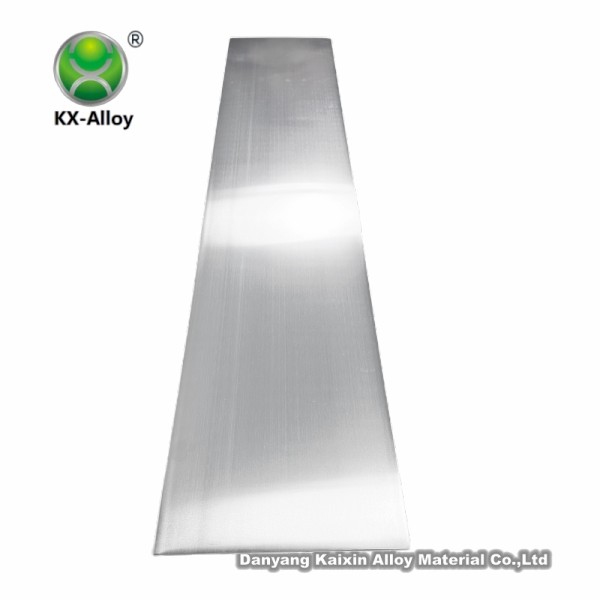

Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm
Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm
Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm
