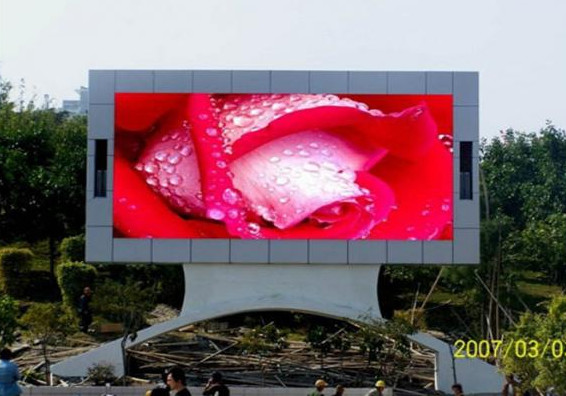

SMD DIP RGB 3IN1 Full Color LED Display , Fixed Module Installation Digital Video Display Devices

Specifications

Brand Name :

kaixin

Model Number :

LM-SP10

Certification :

UL CE ROHS ISO ETL SGS SAA Fcc EMC

Place of Origin :

China

MOQ :

1 Square Meter

Price :

Negotiation

Payment Terms :

Western Union, MoneyGram, T/T VISA

Supply Ability :

5,000 square meters per month

Packaging Details :

Packaging Details : Wooden box or Flight case Module Screen : 160mmx160mm Chip Brand : Nicha Epistar Cree Life Span : >100,000 hours Brightness : ≥7000cd/sqm Display Function : Video Waterproof Grade : IP65 Power Supply : AC 110/220V Working Voltage : 40A

Description

SMD DIP RGB 3IN1 Full Color LED Display , Fixed Module Installation Digital Video Display Devices

Advantage of Factory
1. 53000 square meters manufacturing base , More than 1200 employees ;
2. Standardized management and production :
3. 20000 pcs modules per day and 65000 square meters display screen per month
4. With integrated R&D, manufacturing and service system , from LED application solutions to after-sale service
5. Certification : ISO 9001-2008,3C, CE, UL etc.
6. Accept OEM and ODM
7. Quick delivery time : 10 days after receiving payment .

Advantage of Products
1. Steady performance and low death rate of light
2. Own designing team for new products development
3. Independent design of PCB board circuit : tidy electronic line and Uniform color

Product Description:

P10 Full Color Outdoor Module
Item	Unit	Parameter
Pixel Pitch	mm	10
Pixel Density	dots/sqm	10,000
Resolution of Module	dots	16×16
Module Size	mm	160×160
HUB		75A
Led Package	DIP Oval 346 lamp
Pixel Configuration	1R1G1B
Chip Brand of LEDs	Epistar
Module Weight	kgs/pc	0.5
Brightness (White Balance)	nits(cd/sq.m)	7,000
Red Wavelength	nm	620-625
Green Wavelength	nm	520-525
Blue Wavelength	nm	470-475
Scan Mode	1/4 Scan
View Distance	M	5~100
Best View Distance	M	12.5~33
Viewing Angle-Horizontal	deg.	110
Viewing Angle-Vertical	deg.	60
Module Maximum Power	W	33.4
Max. Power Consumption	W/sq.m	1,302
Avg. Power Consumption	W/sq.m	390
Working Voltage	40A 5V
Power Supply	AC 110/220V
Waterproof Grade	IP65
Refresh Rate	Hz/S	3,000
Frame Rate	Hz/S	≥ 60
Gray Scale	4096 grades gray
Display Color	256256256
Display Function	Text,news,advertising,flash,animation
Input Signal	RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI
Luminance Degradation	Less than 5% after 1000 hours Ageing test
Defective Dot Rate		<0.0001
Life Span	hours	100,000
MTBF	hours	>10,000
Storage Temperature	°C	45
Working Temperature	°C	60
Working Humidity	10%-90%RH
Control System	Synchronization or Asynchronization
Quality Certificate	ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008
Warrenty	5 Years
Working Environment	Outdoor
Other Fertures	LED&ICs in Departed PCB

What is the life time for a LED screen?
The life time for the LED screen is basically over 100,000 hours, but it depends how the client is taking care of his LED screen and how it is used. When a LED Screens´ life time gets to 100,000 hours, it means that the brightness of the LED lamps of the LED screen is about 50% off as compared to the original brightness depending on several factors that will enlarge a LED screen´s life time or reach 100,000 hours.What is the led chip packing?
546 oval lamp/346 oval lamp/SMD 3528/8X8 Array module
How to protect power supply?
Electrical peaks can put more force on the electrical components which will decrease life time .
it is wise to install a protection (voltage stabilizer) that can control the peaks.
How to main the led screen?
The soldering of the LED chips can dry out and break which require changing often components such as LED modules and receiving card .
What is the return policy?
If the module died exceed 1%,we can send you the new one.
