P3.91 P4.81 P5.2 500 X 500mm Outdoor Screen Hire High Definition

Specifications

Brand Name :

kaixin

Model Number :

LM-R3.91

Certification :

UL CE ROHS ISO ETL SGS SAA Fcc EMC

Place of Origin :

China

MOQ :

1 Square Meter

Price :

Negotiation

Payment Terms :

Western Union, MoneyGram, T/T VISA

Supply Ability :

5,000 square meters per month

Packaging Details :

Packaging Details : Wooden box or Flight case Pixels : P3.91 SMD2121 Brightness : 1800cd/square meter Pixel Density : 65536 pixels/sqm Module size : 250mm*250mm Drive type : 1/8 scanning Power Supply : Meanwell Working Voltage : AC 110V~220V±10% Weight of

Description

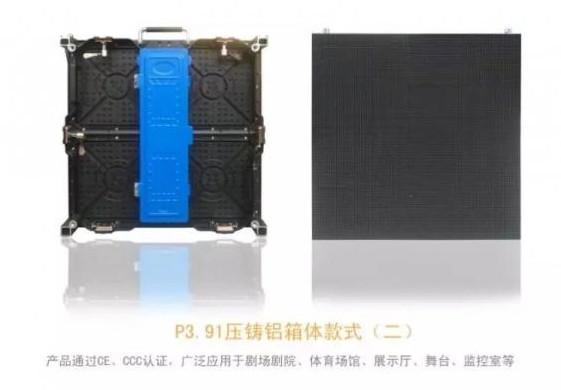

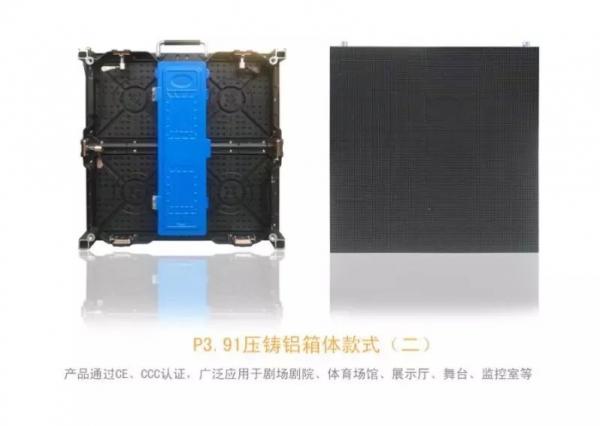

led display rental led aluminum panel p3.91 p4.81 p5.2 500 x 500mm aluminum cabinet

Product Features:

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

Indoor Die casting Aluminum 500mm Rental LED Displays
Module	Pitch/mm	P3.91	P4.8	P5.2	P6.25
	Module size/mm	250x250	250x250	250x250	250x250
	Density of pixel/(dots/m2)	65536	43264	43402	40,000
	Pixel composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B
	Led encapsulation	SMD2121	SMD2121	SMD3528	SMD3528
	Resolution of module	64X64	52x52	48x48	40x40
Main	Optimum viewing distance	3-10m	4-15m	5-18m	6-20m
	View angle / °	140H,120V	140H,120V	140H,120V	140H,120V
	Max power consumption/W/M2	1,100	1,100	1,000	1,000
	Size of cabinet/mm	500X500	500x500	500x500	500x500
	Resolution of cabinet	128X128	104x104	96x96	80x80
	Weight of cabinet/kg	9	9	9	9
	Driving method	1/16 scan constant current	1/13 scan constant current	1/12 scan constant current	1/4scan constant current
	Refresh rate Hz/S	≥1500	≥1500	≥1500	≥1500
	Luminance of white balance	≥1500 nits	≥1500 nits	≥2000 nits	≥2000 nits
	Operation of Environmental Temperature/°C	below 30 to above 50
	Working vlotage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	256 levels of each color(manually),100 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	linsn(sending card,receiving cards and Hubs)
	Average of non-failure life	>50,00h
	Life span	>100,000h
	Defect dot rate	<0.0001
