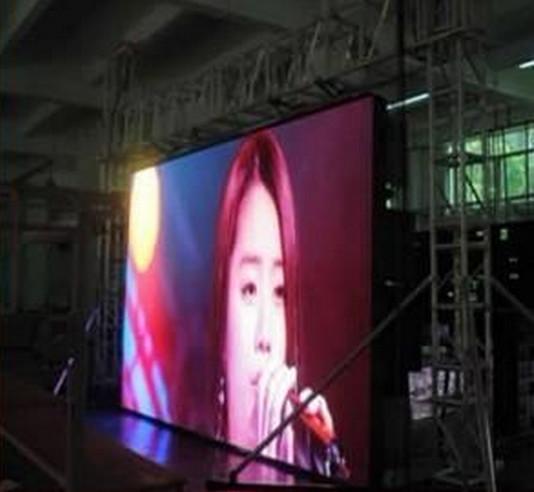

Waterproof Full Color Rental Led Billboard Advertising Led Display Constant Static

Specifications

Brand Name :

kaixin

Model Number :

LM-P6.25

Certification :

UL CE ROHS ISO ETL SGS SAA Fcc EMC

Place of Origin :

China

MOQ :

1 Square Meter

Price :

Negotiation

Payment Terms :

Western Union, MoneyGram, T/T VISA

Supply Ability :

5,000 square meters per month

Packaging Details :

Packaging Details : Wooden box or Flight case Pixel Pitch : 6.25mm Brightness : ≥6800 cd/㎡ Weight : 7Kg/cabinet Led chip : Nicha / Nationstar / Epistar / Cree / Osram scan : Constant Static Dot Density : 25600 Pixel /m2 Tube Chip Color : Full Color Video R

Description

	Lightweight The aluminum die-casting technology makes the single cabinet as light as 8.3KG.
	Ultra thin The thinnest point of the cabinet is only 72mm, making it easily to be fitted in small room.
	Easy to install No need of other tools. It takes 15 minutes for 2workers to finished 20 sqm installation.
	High IP The IP65 insures the reliable operation in severe environment.
	Easy to maintain No need to disassemble the whole screen for maintenance. Each component can be detach individually for that purpose.
	Noiseless The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
	Ghost canceling Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
	High refresh rate Over 2880Hz refresh rate to ensure the picture wrinkle-less, lineless and stable.
	Low brightness and high gray scale 14Bit-16Bit gray scale to bring excellent performance when brightness reduced to 20%.

This series products are widely applied to stage show, concert, TV station, Brand presentation, stadium display screen and so on.

Items	Parameter
Pixel Pitch	PH6.25mm(Outdoor)
Module Resolution(W*H)	80(W)80(H)
Pixel Configuration	1R1G1B(in 3 n 1)
LED Encapsulation	Black SMD 3528
Pixel Density	25600 Pixel /m2
Driving Method	1/5 Scan
Refresh Frequency	≥2880Hz
Driver IC	Special constant current IC with high refresh rate & hight grey scale
Grey Scale	14Bit(depending on the system and IC configuration)
Cabinet Size	500*500mm
White balance Brighthess	≥5000cd/ m2
Color Temperature	8000K±500( adjustable)
Viewing Angle	Horizontal 140° Vetical 120°
Optimal Viewing Distance	＞6m
Working Voltage	AC 220V/110V ±10%
Module voltage	DC4.2V
Max Power Consumption /per module	200W/PCS
Avg.Power Consumption /per module	100W/PCS
Lifetime	50000 hours
Operating Temperature	–10℃ ～ 65℃
Net weight	8.3Kg/pcs
