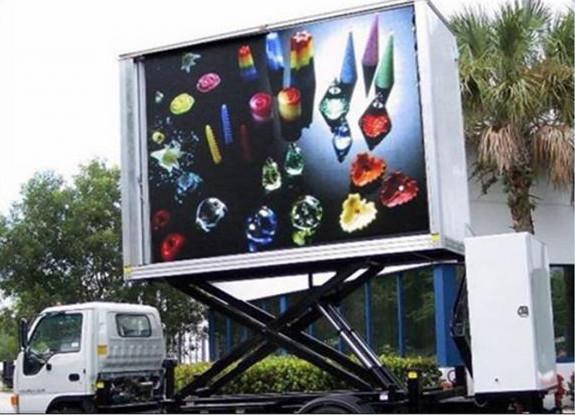

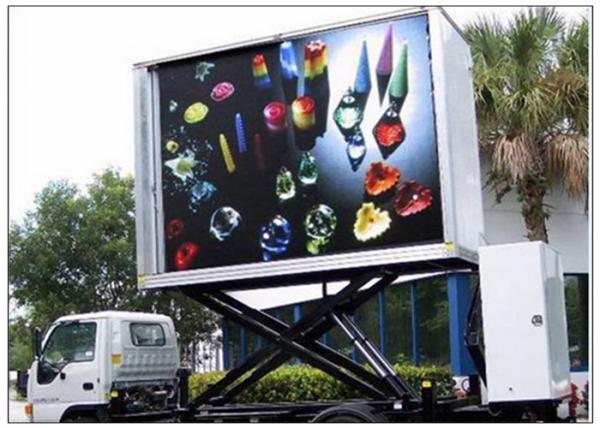

3 Sides Electronic Full Color Outdoor Message Boards , DIP346 LED Sdvertising Truck

Specifications

Brand Name :

kaixin

Model Number :

LM-M6

Certification :

UL CE ROHS ISO ETL SGS SAA Fcc EMC

Place of Origin :

China

MOQ :

1 Square Meter

Price :

Negotiation

Payment Terms :

Western Union, MoneyGram, T/T VISA

Supply Ability :

5,000 square meter per month

Packaging Details :

Packaging Details : Wooden box or Flight case Cable connection : anti-loose data cable Pixel Resolution : 10000pixels/sqm IP grade : IP65 waterproof Main IC : MBI5020/MBI5024 Taiwan Brightness : 8000nits power supply : MeanWell(TW) /G-energy Life time : ≥1

Description

3 sides full color DIP346 outdoor p10 mobile truck LED display advertisement billboard tv / mobile billboard truck P8 P6

Product Description:

1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology

developing trend

2) Good heat emission, waterproof and stable performance
3) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV

broadcasting signal
4) High resolution and definition of screen image, clear and non-flash screen image
5) Supports video and radio frequency input, special structure can be freely assembled
6) The Sports Perimeter Display is most commonly used for advertising on the perimeter/boundary of

football ground, cricket ground, baseball ground, etc

Technical specification:

Parameter	Unit	Value
Brightness	nits	8000
Viewing angle-Horizontal	deg.	120(+60 / -60)
Viewing angle-Vertical	deg.	60(+30 / -30)
Cabinet Weight	kg	59
Cabinet Width	mm	1280
Cabinet Height	mm	1024
Cabinet Depth	mm	150
Inqress Protection(Front/Rear)	IP	IP65 / IP43
Pixel pitch	mm	16
Pixel matrix per cabinet		80 * 64
Recommended minimum viewing distance	meter	16
Colours		281 trillion
Gray scale	Levels	65536 levels per colour
Digital processing	bit	16
Display refresh rate	Hertz	≥2000
Input voltage	VAC	110 / 240
Input power frequency	Hertz	50 / 60
Input power(max/avg)	Watts per sq.m	500 / 200

Outdoor LED Display series :
1. Automatic brightness control,super processing ability,strong colour restoration.
2. Support various interfaces and signal sources.
3. Advanced digital control technology, excellent effect.
4. High brightness,even in direct,full-on sunlight to ensure you attract more audience to get short ROI of your full color outdoor led display screen's investment.
5. Antiseptic and durable, can be used outdoor in all weather.
LED module has easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system.
With full aluminum alloy structure for light weight and waterproof advantages, HJY outdoor LED display is an perfect external multimedia LED display system designed for changeable and adverse outdoor environment.

Indoor LED Display series :
The indoor LED display uses high-quality LED, which has high efficiency luminescence,decreased attenuation of brightness,high stability and reliability. Super uniformity in color. Low-budget, high pixel density,more vivid and stable pictures(No Flickering). The ultra-slim and ultra-light weight structure of indoor full color LED display,increased design opportunities and lower transportation costs. SMD technology takes super wide viewing angle for the LED display; better color performance,higher contrast ratio and higher refresh rate. The super thin rental indoor LED display features low weight, special rigging system for simplified service,hassle-free mounting, easy configuration and maintenance,and several other enhancements that are unmatched in the industry.
