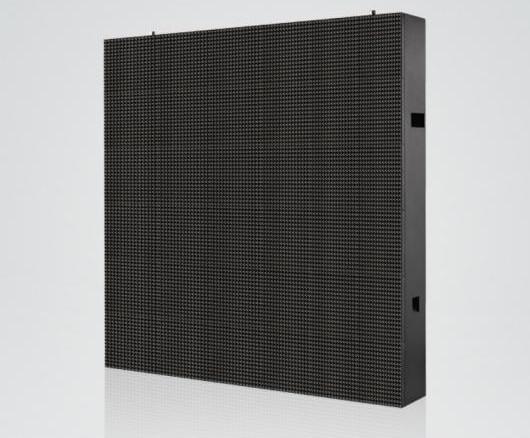

Outdoor Cabinet DIP RGB Diy Led Screen PH10 P12 P16 P20 Full Color Video High Brightness

Specifications

Brand Name :

kaixin

Model Number :

LM- P12

Certification :

UL CE ROHS ISO ETL SGS SAA Fcc EMC

Place of Origin :

China

MOQ :

1 Square Meter

Price :

Negotiation

Payment Terms :

Western Union, MoneyGram, T/T VISA

Supply Ability :

5,000 square meters per month

Packaging Details :

Packaging Details : Wooden box or Flight case Pixel Pitch : DIP346 Protection Level : waterproof IP65 Brightness : >8000cd Viewing angle : 140°/120° Pixel Resolution : 10000 pixel/㎡ Refresh rate : ＞1920Hz Lifetime : 50000hours Operating Temperature : –10℃~

Description

Outdoor Cabinet DIP RGB DIY LED Display PH10 P12 P16 P20 full color video high brightness 8500nits street billboard sign

Product features

1. High quality LED chip and high anti-static electricity capacity.

2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.

3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.

4. Ultra high brightness,low attenuation,high reliability and weather ability.

5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.

6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping, multi-route redundancy backup-supporting,and dot-by-dot-calibration.

Application scopes

Widely applied to traffic information distribution of station,quay and qirport,conference,shoppingmall,brand presentantion,TVstation,stageshow,concert and so on.

Items	Parameter
Pixel Pitch	PH10	PH12	PH16	PH20

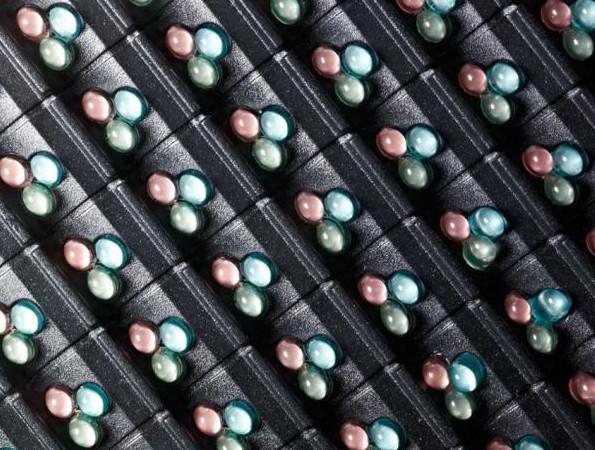

LED Encapsulation	DIP346	DIP346	DIP346	DIP346
Module Resolution(W*H)	16(W)*16(H)	16(W)*16(H)	16(W)*8(H)	16(W)*8(H)
Pixel Density	10000 pixel/㎡	6944 pixel/㎡	3906 pixel/㎡	2500 pixel/㎡
Driving Method	4 Scan	4 Scan	Static scanning	Static scanning
Refresh Frequency	＞1920Hz
Driver IC	Special constant current IC with hight refresh rate & hight grey scale
Grey Scale	14Bit(depending on zhe system and IC configuration)
Cabinet Size	160*160	192*192	256*128	320*160
White balance Brightness Driving Method	5500cd/㎡	5500cd/㎡	7000cd/㎡	7000cd/㎡
Color Temperature	8000K±500(adjustable)
Viewing Angle	Horizontal 100°Vertical 50°
Optimal Viewing Distance	> 10m	> 12m	> 16m	> 20m
Module voltage	DC4.2V
Max Power Consumption/per module	12W/PCs	16W/PCs	16W/PCs	23W/PCs
Avg.Power Consumption/per module	6W/PCs	8W/PCs	8W/PCs	11W/PCs
Lifetime	50000 hours
Operating Temperature	–10℃ ～ 65℃
Net weight	0.6Kg/pcs	0.68Kg/pcs	0.54Kg/pcs	0.6Kg/pcs
