960mm x 960mm Outdoor Advertising Signs with 1 / 4 Scan Constant Current Driving

Specifications

Brand Name :

kaixin

Model Number :

LM-P10 DIP RGB

Certification :

UL CE ROHS ISO ETL SGS SAA Fcc EMC

Place of Origin :

China

MOQ :

1 Square Meter

Price :

Negotiation

Payment Terms :

Western Union, MoneyGram, T/T VISA

Supply Ability :

5,000 square meters per month

Packaging Details :

Packaging Details : Wooden box or Flight case Cabinet : 960x960mm, 1280x960mm, 960x800mm etc Brightness : 7000~10000 nits, indoor, outdoor use Resolution : 10000dots/m2 Tube Chip Color : RGB Full Color Video Maintenance : Front side and rear door Power con

Description

960mm x 960mm Outdoor Advertising Signs with 1 / 4 Scan Constant Current Driving

Product Description:

1. Using DIP technology make the screen have a excellent effect when it plays .

2. The cabinet become more firmed , and corrosion-resistant .

3 synchronization through the screen body color and brightness adjustment, screen body presents a delicate and vivid color performance;

4. high contrast, high refresh rate, making the LE display render the image without any delay, smear phenomenon;

5. compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.;

6. Flightcase professional packaging protection, of the screen body control equipment has played a good protection;

7. Unique waterproof case designed to meet the IP65 protection standard, and can be directly installed in outdoor use.

Applications:

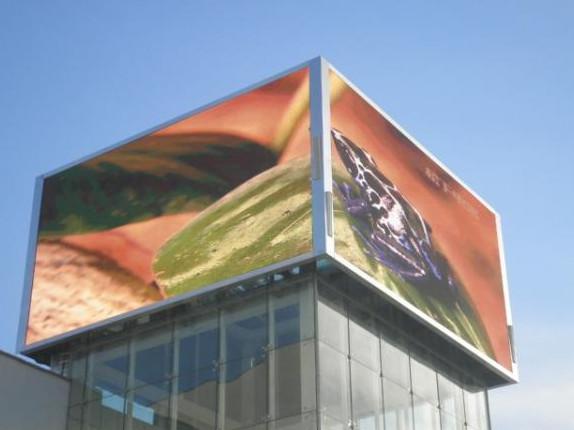

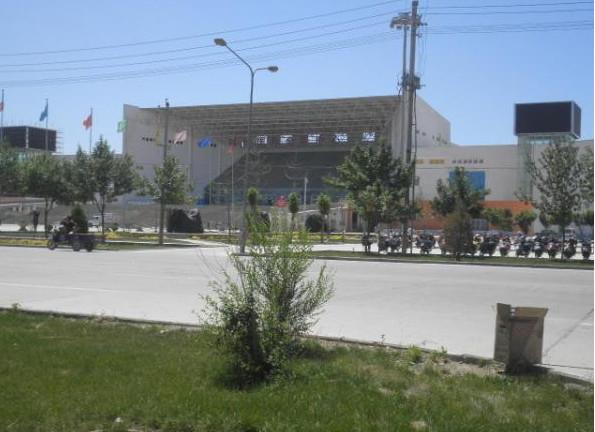

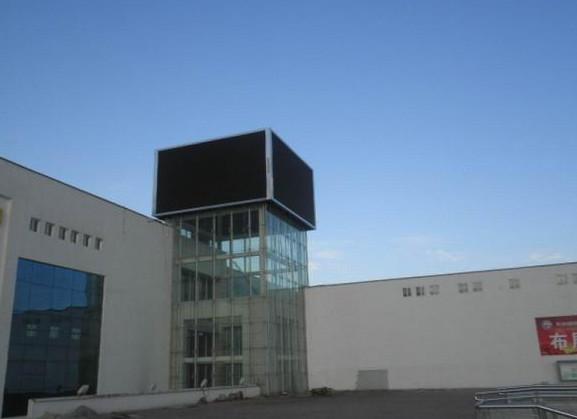

Mainly for outdoor advertising,information publishing,journalism and communication

in some places,such as cultural square,traffic arteries,stations,terminals,information

centers,entertainment venues,shopping centers,commercial city and etc.

Technical Specification:

Technical Parameter	P10 Full Color
The optimum viewing distance	10m
The optimum viewing angle(Horizontal / Vertical )	120 / 90
Maximum power consumption	900w/m2
Standard cabinet	960 *960mm
Resolution of cabinet	96 * 96
Weight of cabinet	50kg / m2
Driving method	1/4 scan constant current driving
Frame frequency	≥60hz/s
Refresh rate	≥ 200hz
Luminance of white balance	≥6500 CD/m2
Working environment temperature	-30°C~55°C(-30 ~+65 optional)
Working voltage	220±10% or 110±10%
Grey scale/color	Displaying colors1.07 billion(synchronized)
Brightness adjustment	256 levels of each color (R,G, B) can be adjusted manually, and 8 levels of each color can be adjusted automatically.
Input signal	RF, S-Video, RGB, RGBHV, YUV, YC, Composition, etc.
Control system	PCTV non-linear editing card + DVI display card + main controller card + optic fiber transmission(optional)
Average no failure time	>5000 hours
Life-span	>100000 hours
Malfunction dot rate	<0.0001
