P1.6 Indoor HD LED Video Walls , SMD1010 Large Screen Display Solutions with 14bit Gray Grade

Specifications

Brand Name :

kaixin

Model Number :

LM-HD1.6

Certification :

UL CE ROHS ISO ETL SGS SAA Fcc EMC

Place of Origin :

China

MOQ :

1 Unit or 1 PCS or 1 set

Price :

Negotiation

Payment Terms :

Western Union, MoneyGram, T/T VISA

Supply Ability :

50,000 units per month

Packaging Details :

Packaging Details : Wooden box or Flight case Function : display video/text/picture/photo Pixels : p1.6/p1.9/p2.5/p3.75/p4/p4.8mm Refresh Rate(Hz) : ≥ 1500 Color temperature : 6500K-11000K Brightness(cd/m2) : 1800 LED Chip Color : Video Full Color LED styp

Description

P1.6 Indoor HD LED Video Walls , SMD1010 Large Screen Display Solutions with 14bit Gray Grade

Product Detail Description:
1. HD1.6 has exceptional display quality even when brightness is reduced to 20%.The so-called seamless, thinnest, super-thin and barely seamless marketing can never change the fact that there are still gaps between cabinets, while Leeman fast-connector makes the real seamless splicing possible.
2. 6:9 design. Cabinets 16:9 resolution is specialized for command center. Perfect replacement for LCD display. Die cast aluminum cabinet, guarantee you a flat and seamless screen. Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation.
3. Modular design. Efficient and low cost installment and maintenance. Patented cooling system, fanless, non-noise, energy-saving and eco-friendly.High reliability. Redundant N+1 power system, dual signal hot backup. Auto-switch and warn malfunction.
4. Vertical/horizontal: 160°/160°, broadcast-level color gamut, CT and brightness adjustable,more appropriate for long-time watching.

Technical Specification:

1) Module Parameter

Item	Specification Parameter
Pixel Pitch,Resolution rate,size	1.6mm,8090dots,128.56144.63*10mm
Pixel color, Pixel LED	1R1G1B, SMD1010
Working voltage,Module Power	DC4.2V,16W
Driving way	30 scanning

2)Cabinet Parameter

Item	Specification Parameter
Material,Cabinet Weight(kg/Cabinet)	Die cast aluminum ,6kg/Cabinet
Resolution rate,size,Module quantity	240180Dots,385.7289.377mm,32
Density	387230
White balance ,Color temperature	300CD,6500K-11000K
view angel,Non-Flatness,Module interval	H:140°;V:140°,≤0.3mm,≤0.3mm
Maximal power,Average power	1010W,350W
Working temperature,Protection grade	-10℃ - +40℃,Front/Back:IP30/IP30
Frame frequency,Refresh frequency,Gray grade	60Hz,2400Hz,14bit

Application places

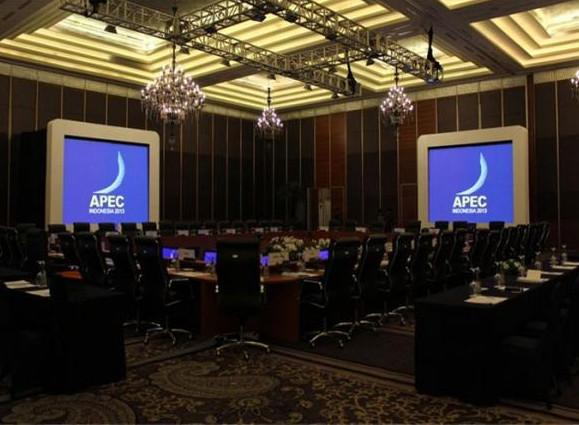

Ideal for auditorium, conference room, banquet hall and exhibition presentations, traffic, studio, command and monitor system
