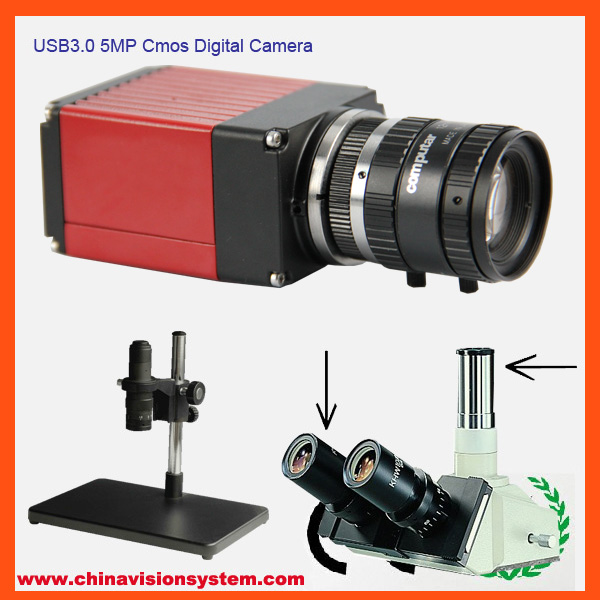

5Megapixles USB3.0 Microscope Camera
5Megapixles USB3.0 Microscope Camera
5Megapixles USB3.0 Microscope Camera
5Megapixles USB3.0 Microscope Camera
Specifications
Place of Origin :
China
Brand Name :
Chinavisionsystem or OEM
Model Number :
DS-UM501
MOQ :
1pcs
Packaging Details :
Carton
Delivery Time :
3DAYS
Payment Terms :
TT or Paypal
Supply Ability :
20000pcs
Description

5Megapixles USB3.0 Microscope Camera

Model No.: DS-UM501

5Megapixles USB3.0 Microscope Camera 5Megapixles USB3.0 Microscope Camera

Introduction:

Our USB3.0 digital camera is specifically applied to high-speed image acquisition applications USB3.0 output is with speed up to 400MB/s. Camera use high-speed image sensor and housing size is only 59.7 x45x35mm. This Camera is with stable and reliable transmission characteristics, high-resolution, high-definition, low noise, excellent color reproduction, image processing functions is built-in the camera, which can reduce the CPU load effectively.


Our USB cameras support TWAIN and DirectShow software interface and compatible with Windows XP, Win7 (32/64 bit) operating system. We also supply SDK for development.


This Camera is suitable for industrial inspection, microscopy imaging, high-speed image acquisition, medical, research, teaching, public security and other fields.

Product Features:
USB3.0 interface with 64MB, fast image transmission and stability
Camera built-in image processing, it can save CPU resources in high-speed video.

Very convenient to use by our software measurement, second development

Support TWAIN and DirectShow interface
Come free with MicroMS Kalinu measurement software
Support for high-speed low-resolution preview, full-resolution photos,ROI Function
Compact; shell with USB line fixed column, more reliable connection
Unique RUBBER dustproof structure

Specification:

Model Number

DS-UM501

Sensor Size

1/2.5" CMOS Color

Effective Resolution

2592Hx1944V £¨5MP£©

Preview and

Frame rate

2592x1944

14 fps

1920x1080£¨ROI£©

30 fps

1024x768£¨ROI£©

45 fps

1280x960

36 fps

640x480

55 fps

Any ROI

Up to ROI

AD Switch

8/10/12bit

Pixel Size

2.2¦Ìmx2.2¦Ìm

Image Data Format

Raw8/Raw10/Raw12

Sensitivity

1.76V/Lux-sec(550nm)

S/N Ratio

38.5dB

Dynamic Range

67.7dB

Clear

1100-1200 Line

Scanning

Line

Shutter Type

ROLLING SHUTTER

Exposure time

0.036~300ms

White balance

Manual White Balance / White Balance / Regional White Balance

Exposure Control

Auto / Manual, Regional exposure

Control

Image Size, Image Photographing, Exposure time, Gamma, Contrast, Brightness, RGB Gain, Saturation

Operate System

Windows XP; Win7 32 and 64 Bits

Software Interface

TWAIN£¬DirectShow

Output

USB3.0 5Gbps

Working indicator

Led Indicator

Working Temperature

0~50

Lens Mount

C/CS

Camera Size

59.7x45x35mm

Weight

115g

Update

Support Remote Update

Notes:

ROI Function means cut part of the whole resolution as a window, such function can get faster framerates, but the view of region will be smaller than whole resolution.
