Portable Digital Microscope KLN-MSV500

Description:

Welcomet to visit kalinu technology website, we are the professional manufacturer of digital microscope and microscope camera. The model KLN-MSV500 is the newest model as portable video microscope with LCD screen. The magnification is much larger than KLN-MSV330. The optical magnification is near 200x without any digital zoom. There is built-in 4x digital zoom, so the max magnification is near 800x.

The KLN-MSV500 portable microscope is an exciting new product which has a 5 megapixel sensor and detachable interchangeable Auxiliary Focus Caps. It is a true portable microscope, allowing you to observe micro-object and record every detail and providing you an experience you never had. It can magnify up to 200x magnification with a resolution of up to 2560x1920. With such magnification and resolution, you will not miss any important details.

The KLN-MSV500 includes convenient shutter key and adjustable interchangeable brightness 4 x white LED and 4 x UV LED as illumination, which allows you take image, record video and adjust LED brightness easily. Even more, your iScope-MSV500 Portable microscope camera comes with professional iScope Pro software that allows you to carry out calibrating and measuring on the captured images.

Features:

1.200x optical magnification, while MSV330 is just 17x optical magnification

2.Real 5megapixels sensor camera.

3.3.5 inch TFT LCD Screen

4.Support SD card to storage, max 32 GB

5.long standby lion battery.

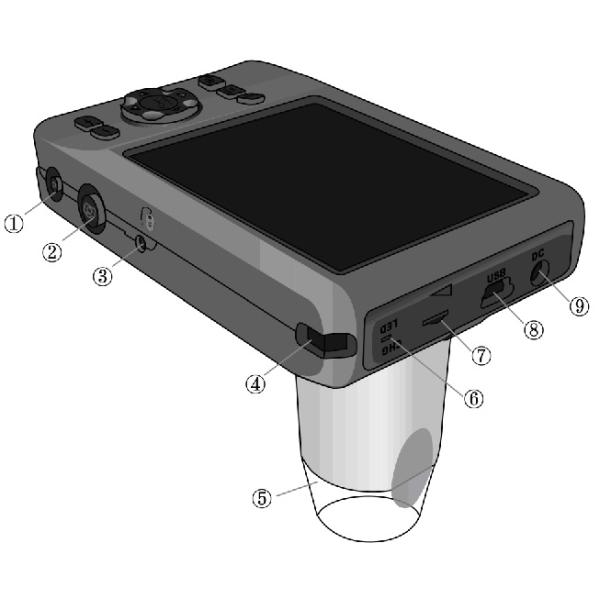

Instruction of buttons:

1.Power Switch: Press this key to turn on or off the camera:

1 second for power on, or 2seconds for power off.

2.Shutter Key:

In shooting mode, press this key to capture an image

In video mode, press this key to start or end recording video

In video playback mode, press this key to start or pause the video playback.

3.Extending Shutter Connector: Connect with the wired controller of extending shutter, which has 3 keys, and then press individually these keys to perform the same function as Shutter Key/Mode switching/LED switching.

4.Strap Hole: For holding camera strap.

5.Auxiliary Focus Cap: Assists you in performing the microscope at a fixed magnification.

6.Charging LED: Under Charging---RED LED is on. Finished Charging---BLUE LED is on.

7.Illumination Adjustment Wheel: For adjusting the illumination brightness.

8.USB Connector: You can transfer images or videos when connecting to PC through an USB cable.

9.DC 5V Charging Connector: Connects with AC adapter for charging Li-ON Battery.

10.LCD Monitor: For displaying image or video.

11.Focus&Magnification Adjustment Wheel: For adjusting optical focus and magnification.

12.LED Illumination: Providing light source for the camera.

13.SD Card Slot: For inserting SD card in the camera.

14.LED Illumination Switching: Press this key to switch different types of LED illumination: UV LED or white LED.

15.Menu/Del: It is a dual-functions key, which is “Del” key in playback mode to rotate/ protect/delete file; or as “Menu” key in other modes to enter setup operations.

16.Mode Switching: Press this key to switch among modes of Shooting/Video/Playback

17.Multi-Selector: For navigating through the camera menus or moving cursor left/right/up/down at zoom in or out of image.

18.OK/Scale: It is a dual-functions key, which is “OK” key in menu operation; or as “Scale” key for scale display in shooting mode.

19.Zoom-Out: Press this key to zoom out the image or video.

20.Zoom-In: Press this key to zoom in the image or video.

Product Specifications:

Package Contents

The KLN-MSV500 portable digital microscope camera package includes items:
