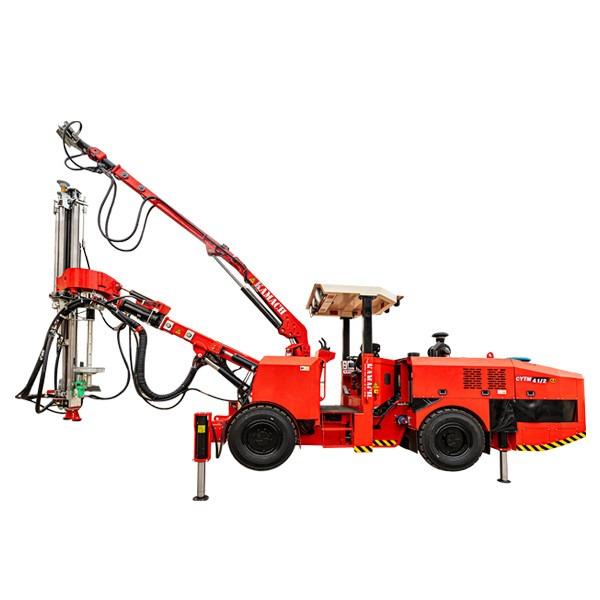

CYTM 41/2 Two Boom Hydraulic Rock Bolting Rig Jumbo 14kW for tunneling
CYTM 41/2 Two Boom Hydraulic Rock Bolting Rig Jumbo 14kW for tunneling
CYTM 41/2 Two Boom Hydraulic Rock Bolting Rig Jumbo 14kW for tunneling
CYTM 41/2 Two Boom Hydraulic Rock Bolting Rig Jumbo 14kW for tunneling
CYTM 41/2 Two Boom Hydraulic Rock Bolting Rig Jumbo 14kW for tunneling
CYTM 41/2 Two Boom Hydraulic Rock Bolting Rig Jumbo 14kW for tunneling
CYTM 41/2 Two Boom Hydraulic Rock Bolting Rig Jumbo 14kW for tunneling
CYTM 41/2 Two Boom Hydraulic Rock Bolting Rig Jumbo 14kW for tunneling
Specifications
Brand Name :
kamach
Model Number :
CYTM 41/2
Certification :
CE,EAC
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
T/T 30% advance payment
Supply Ability :
1 Unit 8 months
Delivery Time :
8-10 months
Dimension :
11500*2360*3140 mm
Ground clearance :
280 mm
Weight :
16000±500 kg
Rock drill :
RC1200
Impact power :
14kW
Percussion pressure range :
180bar（max）
Impact frequency :
100Hz
Slewing speed :
430 r/min
Rod type :
B28
Hole diameter :
⌀32- ⌀43
Shank type :
R32
Drifter :
RC1200
Drilling depth :
2000 mm
Working pressure :
≤10Mpa
Description

One of the most attractive features of the hydraulic drilling jumbo for tunneling is its double-boom design, making

it suitable for a large drilling cross section area. The tunneling jumbo has two drive methods, single-power and dual

power, giving it a wider range of efficiency and power options. Equipped with a hydraulic drilling system, the

underground tunneling machinery is extremely reliable and durable, making it the preferred choice by many companies

involved in the construction and drilling of mines, tunnels and more.
