WJ-8 Lightweight Underground Wheel Loader High Capacity LHD Load Haul Dump Machine
WJ-8 Lightweight Underground Wheel Loader High Capacity LHD Load Haul Dump Machine
WJ-8 Lightweight Underground Wheel Loader High Capacity LHD Load Haul Dump Machine
WJ-8 Lightweight Underground Wheel Loader High Capacity LHD Load Haul Dump Machine
Specifications
Brand Name :
kamach
Model Number :
WJ-8
Certification :
CE,EAC
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
T/T 30% advance payment
Supply Ability :
1 Unit 8 months
Delivery Time :
8-10 months
Description

KAMACH WJ-8 underground wheel loader is a high-capacity Load-Haul-Dump (LHD) featuring excellent safety, productivity and reliability. It has a unique fast and efficient way to fill the bucket, compact lightweight design and high capacity. For excellent reliability WJ-8 has integrated KAMACH Intelligent Control system for easy operation and fast maintenance.

Capacity
Loading Volume 8 m³
Loading capacity 20 Ton
Maximum traction force 433 kN

Motion time
Boom raising 7.2 sec
Boom lowering 4.0 sec
Dumping 2.8 sec

Weight
Complete weight 58 500 kgs
Total weight 79 500 kgs
Grade ability 25 % full load, 3 km/h

Travelling speed
Travelling speed full load F/R on flat ground
1st gear 4.2 km/h
2nd gear 8.6 km/h
3rd gear 14.1 km/h
4th gear 24.5 km/h

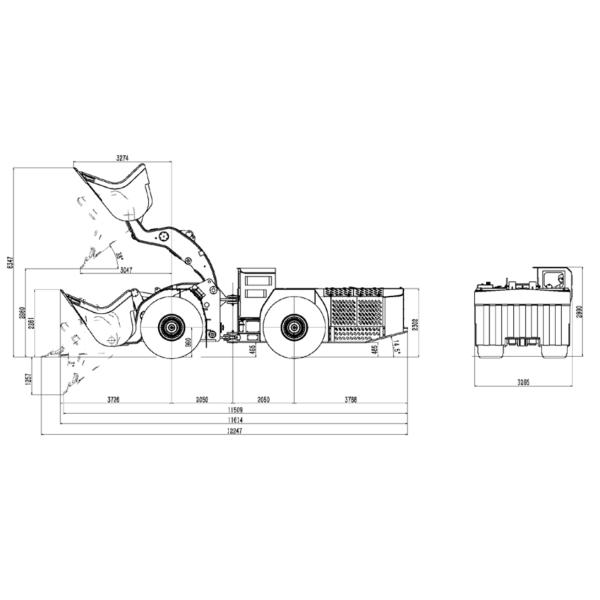

Machine Size
Length 11 614 mm
Width of bucket 3 200 mm
Width of main frame on wheels 3 265 mm
Height 2 860±250 mm
Off load height 4 554±250 mm

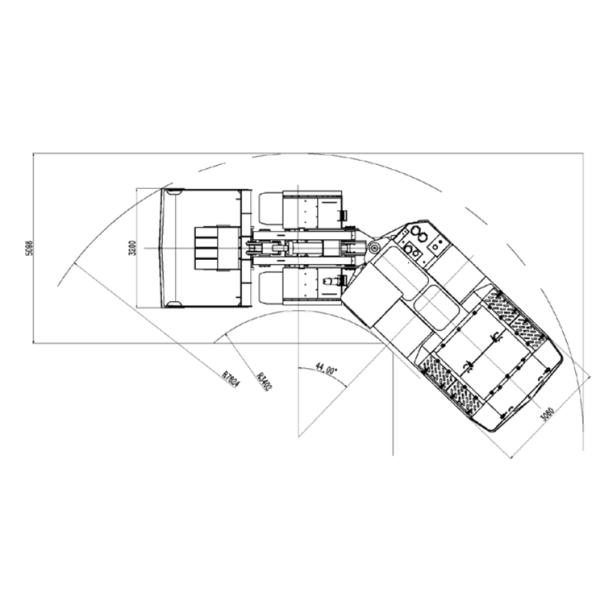

Turning radius (External) 3402 mm
Turning radius (Internal) 7624 mm
Turning angle 44 °

Engine
Brand Scania
Model DC16-076A
Cooling method Water-cooled
Controlling method CAN-BUS
Power 368 kW | 1900 rpm
Maximum torque output 2324 Nm |1500 rpm
Electric system working voltage 24 V
Emission standard Tire 3

Drive line
Transmission
Brand DANA SPICER
Model 15.7 LMTE32427 integrated
Drive axles
Brand OMCI
Model ARG396TN with manual-HYD. lock
Axle options KESSLER+CO D111 with limited SPIN
Tire size 35/65-R33
Tire type Smooth cut-resistance mining tires

Brakes
SAHR, spring brake hydraulic release, fully enclosed multiple wet discs at each wheel end, Forced cooling
