Specifications

Model Number :

51115,51116,51117

MOQ :

1PCS

Price :

FOB

Packaging Details :

Carton Box

Delivery Time :

within one day

Payment Terms :

T/T In advance

Supply Ability :

5000PCS

Description

Specifications

Cylindrical roller thrust bearing can be divided into single row cylindrical roller bearing and double row cylindrical roller bearing according to the rows of rollers. The axial can support heavy loads and shock loads.

The single row cylindrical roller bearing can withstand axial loads in one direction and limited axial displacement in one direction, and the double row cylindrical roller bearing can withstand axial loads in two direction and limited axial displacement in two direction.

Bearing type		boundary dimensions						load rating KN		limiting speed r/min		weight Kg
New type	Old type	d mm	d1 mm	D mm	D1 mm	H mm	r min	dynamic load rating C KN	static load rating Co KN	Grease	Oil	weight Kg
81215M	9125	75	77	110	110	27	1	125	440	850	1200	0.98
81115M	9115	75	77	100	100	19	1	75.5	266			0.46
81716M	9716	80	80.2	150	150	26	1.5	238	1056	1400	1900	2.06
82716M	59716	80	90.2	135	134	62	0.6	311	1256	1000	1500	3.28
81117M	9117	85	85.2	110	110	19	1	76.5	310	1000	1500	0.52
81217M	9217	85	88	125	125	31	1	153	550	800	1100	1.44
81118M	9118	90	90.2	120	120	22	0	104	415	900	1300	0.8
81718M	9718	90	90.2	160	160	26	1.5	250	1210	1300	1800	2.25
81720M	9720	100	100.2	190	190	39	1.5	451	2090	1000	1400	5.11
81120M	9220		100.2	135	135	25	1	152	544			1.19
81220M	9220		103	150	150	38	1.1	214	830	800	1100	2.58
89320M	9549320		103	170	170	42	1.5	327	1520	760	1100	4.49
81722M	9722	110	110.2	200	200	39	2.1	459	2194	990	1300	5.43
81222M	9222	110	113	160	160	38	1.1	244	827			2.78

bearing type		boundary dimensions						load rating KN		limiting speed r/min		weight Kg
New type	Old type	d mm	d1 mm	D mm	D1 mm	H mm	r min	dynamic load rating C KN	static load rating Co KN	Grease	Oil	weight Kg
81124M	9124	120	120.2	155	155	25	1	146	680	950	1400	1.36
81224M	9224	120	123	170	Product tags ball bearing sx06c89c3v2 ntn , thrust ball bearing 51107 , thrust ball bearing 51104 Send your message to this supplier Message* Email* Phone or WhatsApp* Name Company Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Send Now Submission successful! thrust ball bearings 51115,51116,51117 Ask Latest Price Product Detail Model Number : 51115,51116,51117 MOQ : 1PCS Price : FOB Packaging Details : Carton Box Delivery Time : within one day Payment Terms : T/T In advance Contact Supplier YiWu Triumph Bearing Co.,Limited Site Member 8 Years shanghai, shanghai Since 2003 Business Type : Manufacturer, Distributor/Wholesaler, Agent, Trading Company Main Products : Cylindrical Roller Bearing, Needle Roller Bearing, Spherical Roller Bearing Total Annual : 10 million-20 million Employee Number : 50~100 Certification Level : Site Member Discover similar products thrust ball bearings 51124,51126,51130 Contact Now thrust ball bearings 51406,51326,51324 Contact Now thrust ball bearings 51110,51111,51112 Contact Now thrust ball bearings 51209,51210,51211 Contact Now China Neutral , Good Quality Thrust Ball Bearings 51220 Contact Now thrust ball bearings 51406,51326,51324 Contact Now China Neutral , Good Quality Thrust Ball Bearings 51220 Contact Now TIMKEN Thrust ball bearing 51140M Contact Now Angular contact thrust ball bearings, double direction, super-precision 234420 Contact Now NTN Thrust Ball Bearing 51212 , 51109 Contact Now View More Find Similar Products By Category: Supplier Homepage Products Thrust Ball Bearing MachineU China Products Machinery Contact Supplier Message* Email* Phone or WhatsApp* Name Company Submit Requirement Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Submitted successfully! Your request message has been successfully sent to the supplier. Please keep in touch and they will contact you as soon as possible. OK China Hot Products: A \| B \| C \| D \| E \| F \| G \| H \| I \| J \| K \| L \| M \| N \| O \| P \| Q \| R \| S \| T \| U \| V \| W \| X \| Y \| Z \| 0~9 Copyright © 2009-2025 Machineu.com. All rights reserved. Copyright © 2009-2025 Machineu.com. All rights reserved.

Specifications

ball bearing sx06c89c3v2 ntn

thrust ball bearing 51107

thrust ball bearing 51104

thrust ball bearings 51115,51116,51117

YiWu Triumph Bearing Co.,Limited

thrust ball bearings 51124,51126,51130

thrust ball bearings 51406,51326,51324

thrust ball bearings 51110,51111,51112

thrust ball bearings 51209,51210,51211

China Neutral , Good Quality Thrust Ball Bearings 51220

thrust ball bearings 51406,51326,51324

China Neutral , Good Quality Thrust Ball Bearings 51220

TIMKEN Thrust ball bearing 51140M

Angular contact thrust ball bearings, double direction, super-precision 234420

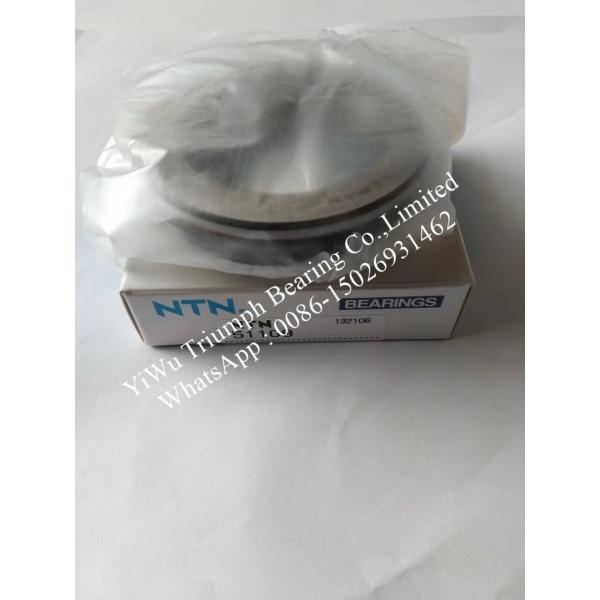

NTN Thrust Ball Bearing 51212 , 51109
