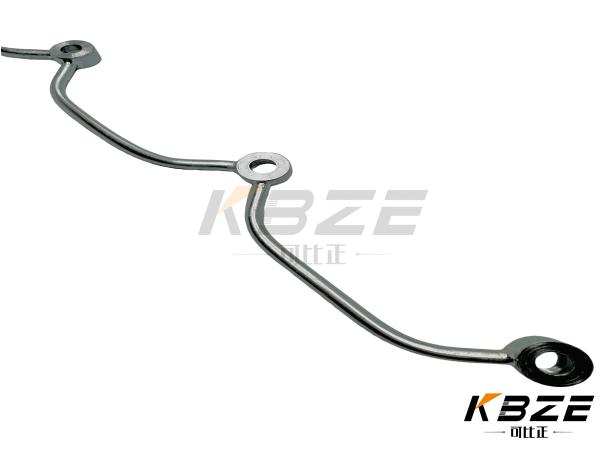

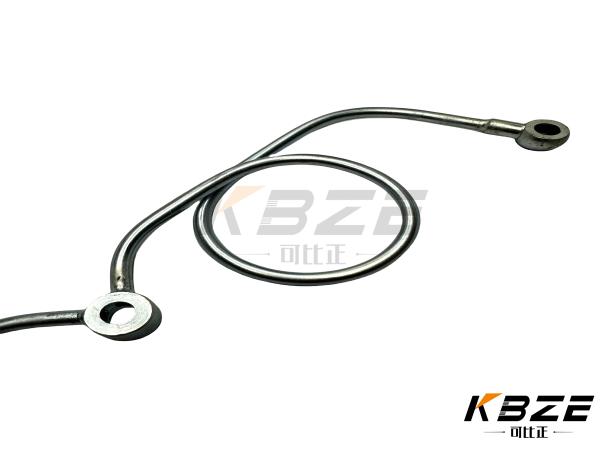

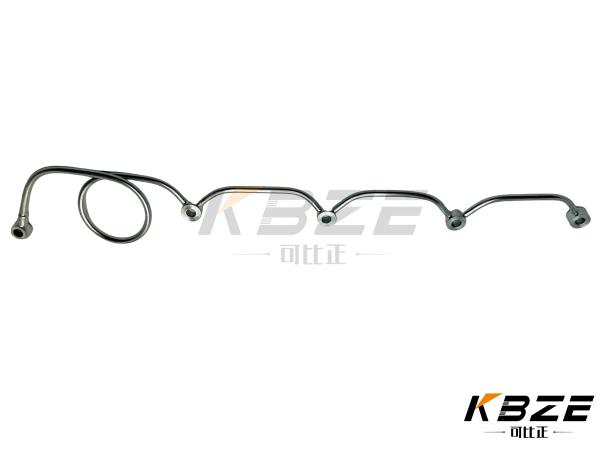

HITACHI EX100 EX120 EX150 5-15411042-0 ISUZU 4BD1 ENGINE NOZZLE LEAK OFF PIPE
HITACHI EX100 EX120 EX150 5-15411042-0 ISUZU 4BD1 ENGINE NOZZLE LEAK OFF PIPE
HITACHI EX100 EX120 EX150 5-15411042-0 ISUZU 4BD1 ENGINE NOZZLE LEAK OFF PIPE
HITACHI EX100 EX120 EX150 5-15411042-0 ISUZU 4BD1 ENGINE NOZZLE LEAK OFF PIPE
HITACHI EX100 EX120 EX150 5-15411042-0 ISUZU 4BD1 ENGINE NOZZLE LEAK OFF PIPE
HITACHI EX100 EX120 EX150 5-15411042-0 ISUZU 4BD1 ENGINE NOZZLE LEAK OFF PIPE
HITACHI EX100 EX120 EX150 5-15411042-0 ISUZU 4BD1 ENGINE NOZZLE LEAK OFF PIPE
HITACHI EX100 EX120 EX150 5-15411042-0 ISUZU 4BD1 ENGINE NOZZLE LEAK OFF PIPE
Specifications
Brand Name :
KBZE
Model Number :
5-15411042-0
Certification :
ISO9001
Place of Origin :
MADE IN CHINA
MOQ :
Acceptable Trial Order
Price :
DIRECTLY FACTORY PRICE
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50000 SET/WEEK
Delivery Time :
3-5DAYS AFTER RECEIVED PAYMENT(WORKING DAYS)
Packaging Details :
PP Bag & Carton Box
MATERIAL :
SEAMLESS STEEL TUBE
COLOR :
SILVER
QUALITY :
OEM
CONDITION :
100% NEW
FLEXIBILITY :
FLEXIBLE AND EASY INSTALL
APPLICATION :
HITACHI EXCAVATOR
DURABILITY :
LONG-LASTING AND RELIABLE
COMPATIBILITY :
ISUZU 4BD1
Description

PRODUCT DESCRIPTION

PRODUCT NAME: HITACHI EX100 EX120 EX150 5-15411042-0 ISUZU 4BD1 ENGINE NOZZLE LEAK OFF PIPE
PART NO: 5-15411042-0
BRAND NAME: KBZE NOZZLE LEAK OFF PIPE
APPLICABLE MACHINE:

ISUZU 4BD1 DIESEL ENGINE
SIZE: STANDARD SIZE
MOQ: ONE PCS
PLACE OF ORIGIN: MADE IN CHINA
CONDITION: 100% NEW GENUINE
CUSTOMIZED: OEM & ODM
DELIVERY METHOD: AIR, SEA, FEDEX, DHL, UPS, EMS
PORT NANSHA PORT
SUITABLE MODEL:

HITACHI EXCAVATOR
BX70, BX70D, EX100, EX100M, EX120, EX150, EX90, LX70, RX1200

WE CAN SUPPLY OTHER FUEL PIPE

6745-71-5110 6745-71-5120 6754-71-9910 6754-71-9920
32R62-04100 32R62-04200 05379-23025 5302024
C3973800 C3979403 C3973804 C3973805
6745-71-5230 6745-71-5240 6745-61-8140 3976337
6745-61-8130 3976335 4928864 4928863
3966131 5338661 6745-71-5690 454-0831

Pos. Part No Qty Parts name Comments
1 8944707121 [1] PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
15 8943359000 [1] COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.
16 8944636740 [1] PIPE; INJ NO 1
17 8944636750 [1] PIPE; INJ NO 2
18 8944636760 [1] PIPE; INJ NO 3
19 8944636770 [1] PIPE; INJ NO 4
31 5153001032 [4] NOZZLE ASM; INJ
32(A). 1153300941 [4] HOLDER ASM; NOZZLE
33 5153110190 [4] NOZZLE; INJ
34 1153390090 [4] BOLT; EYE,NOZZLE HOLDER
35 1153320170 [4] NUT; NOZZLE RET,NOZZLE HOLDER
36 1096300820 [8] GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
37 5153320100 [4] NUT; CAP,NOZZLE HOLDER
38 9153390570 [4] GASKET; CAP NUT,NOZZLE HOLDER
39 5153450010 [4] SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER
41 5153510010 [4] CONNECTOR; FUEL INL,NOZZLE HOLDER
42 5513390030 [4] GASKET; INL CONNECTOR,NOZZLE HOLDER
44 9153430130 [4] SPRING; NOZZLE,NOZZLE HOLDER
45 5153410010 [4] ROD; PUSH,NOZZLE HOLDER
46 9153470030 [8] PIN; NOZZLE SET,NOZZLE HOLDER
54 9153390510 [4] COVER; DUST,NOZZLE HOLDER
60 9091505080 [8] WASHER; LK,NOZZLE HOLDER
62 9091104080 [8] NUT; NOZZLE HOLDER
63(A). 5154110420 [1] PIPE; FUEL,NOZZLE LEAK OFF
66 5153150030 [4] GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
75 9091605100 [1] WASHER; PL,BRKT TO INJ PUMP
80(A). 5197510150 [1] BRACKET; PUMP
82 9091505100 [1] WASHER; LK,BRKT TO C/BL
84 9091105100 [1] NUT; BRKT TO BRKT
87 500410200 [2] BOLT; PUMP M10X20 W/LK WASHER
87 280810200 [2] BOLT; PUMP M10X20 FLANGE
98(A). 9154196130 [3] CLIP; "A",INJ PIPE
113 5154190131 [3] CLIP; INJ PIPE
115(B). 9154196140 [3] CLIP; "B",INJ PIPE
133(A). 5154118150 [1] PIPE; INJ NOZZLE LEAK OFF
139 9153390570 [4] WASHER; NOZZLE SPRING,NOZZLE HOLDER
