Tinned Copper 1000ft Outdoor Coaxial Cable , 1 Core 50ohm High Power Coaxial Cable
Tinned Copper 1000ft Outdoor Coaxial Cable , 1 Core 50ohm High Power Coaxial Cable
Tinned Copper 1000ft Outdoor Coaxial Cable , 1 Core 50ohm High Power Coaxial Cable
Tinned Copper 1000ft Outdoor Coaxial Cable , 1 Core 50ohm High Power Coaxial Cable
Tinned Copper 1000ft Outdoor Coaxial Cable , 1 Core 50ohm High Power Coaxial Cable
Tinned Copper 1000ft Outdoor Coaxial Cable , 1 Core 50ohm High Power Coaxial Cable
Tinned Copper 1000ft Outdoor Coaxial Cable , 1 Core 50ohm High Power Coaxial Cable
Tinned Copper 1000ft Outdoor Coaxial Cable , 1 Core 50ohm High Power Coaxial Cable
Specifications
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
China
MOQ :
200 meters
Price :
Negotiation
Payment Terms :
T/T, L/C, D/P, West Union, Paypal, Secure Payments
Supply Ability :
50000meters per week
Delivery Time :
15-20 working days or Negotiation
Packaging Details :
Standard export package
Application :
CCTV,Telecommunication,Instrumentation,CCTV CAMERA,Radio Frequency
Type :
Coaxial Cable
Conductor material :
Copper Core,Tinned copper
Insulation :
PE
Shield Material :
Tinned copper wire/aluminium foil
Jacket :
PVC
Jacket Color :
Black/White/OEM
ft :
1000
Description

Tinned Copper 1 Core 1000ft Coaxial Power Cables For Public Antennas

Production Description:

1. Production Application

High quality RG Type Coaxial cables, 50 or 75 Ohm is suitable for many applications, including low power video, video signal, and broadband signals. A broad selection available in Duct Grade or LSZH versions.

2. Use range

Suitable for analog signals below 1 GHz and high-speed digital signal transmission, suitable for closed-circuit television, public antennas, monitoring system signals, and other high-frequency instrument transmission systems.

3. Features

Characteristic impedance: 50±3Ω,75±3Ω

Frequency range: 1-1000MHz

  • High purity oxygen free copper
  • Ultra low dielectric constant solid PE insulation
  • High shielding performance, anti-interference
  • Flame retardant, environmentally friendly, corrosion resistant, oil resistant PVC sheath
  • Precision jet printer with precise length

4. Use environment

  • Rated temperature: -10 ° C ~ 70 ° C can be used normally
  • Rated voltage: 30V

5. Executive Standard: Q/HW 14-2016

6. Tabular data

Construction

Tinned Copper 1000ft Outdoor Coaxial Cable , 1 Core 50ohm High Power Coaxial Cable 1. Conductor material: Copper Core,Tinned copper
2. Jacket Material PVC
3. Insulation PE
4. Jacket color Black/White/OEM
5. Core 1

Other

Voltage Rating

Temperatyre Rating

 Packaging Details

30V

 -20ºC to 75ºC 100M/Roll,200M/Roll

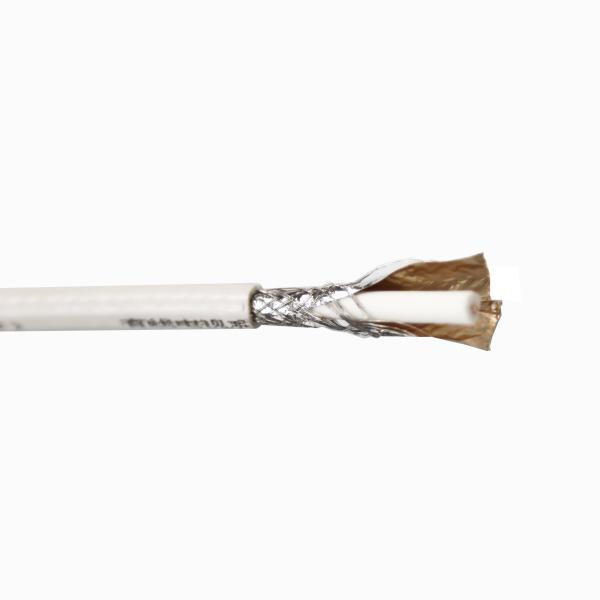

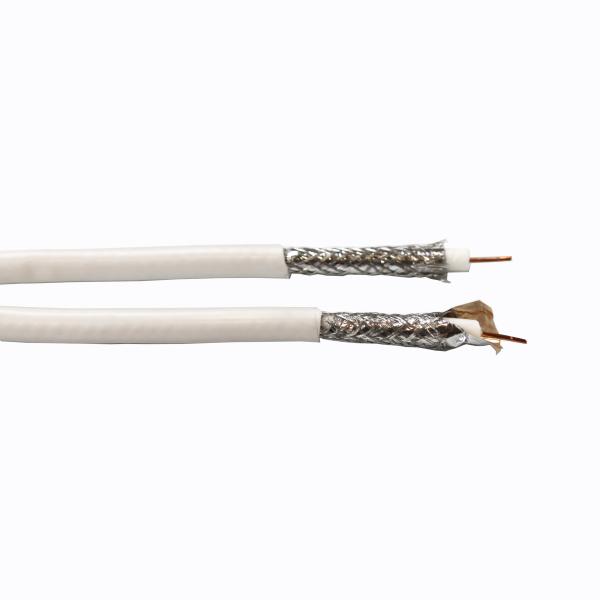

7. Product Image

Tinned Copper 1000ft Outdoor Coaxial Cable , 1 Core 50ohm High Power Coaxial Cable
