RoHS Flexible 18 Core 300V Armoured Electrical Cable , 500V Armoured XLPE Cable
RoHS Flexible 18 Core 300V Armoured Electrical Cable , 500V Armoured XLPE Cable
RoHS Flexible 18 Core 300V Armoured Electrical Cable , 500V Armoured XLPE Cable
RoHS Flexible 18 Core 300V Armoured Electrical Cable , 500V Armoured XLPE Cable
RoHS Flexible 18 Core 300V Armoured Electrical Cable , 500V Armoured XLPE Cable
RoHS Flexible 18 Core 300V Armoured Electrical Cable , 500V Armoured XLPE Cable
RoHS Flexible 18 Core 300V Armoured Electrical Cable , 500V Armoured XLPE Cable
RoHS Flexible 18 Core 300V Armoured Electrical Cable , 500V Armoured XLPE Cable
RoHS Flexible 18 Core 300V Armoured Electrical Cable , 500V Armoured XLPE Cable
RoHS Flexible 18 Core 300V Armoured Electrical Cable , 500V Armoured XLPE Cable
RoHS Flexible 18 Core 300V Armoured Electrical Cable , 500V Armoured XLPE Cable
RoHS Flexible 18 Core 300V Armoured Electrical Cable , 500V Armoured XLPE Cable
Specifications
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
China
MOQ :
200 meters
Packaging Details :
Standard export package
Price :
Negotiation
Delivery Time :
15-20 working days or Negotiation
Payment Terms :
T/T, L/C, D/P, West Union, Paypal, Secure Payments
Supply Ability :
50000meters per week
Conductor :
Class 5 flexible copper conductor
Insulation :
PVC
Sheath :
PVC
Voltage Rating :
300/500V
Core :
18
NOMINAL CROSS SECTIONAL AREA :
1.5mm2
Description

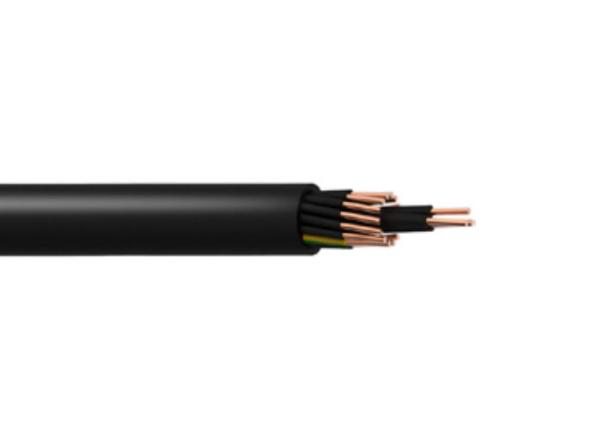

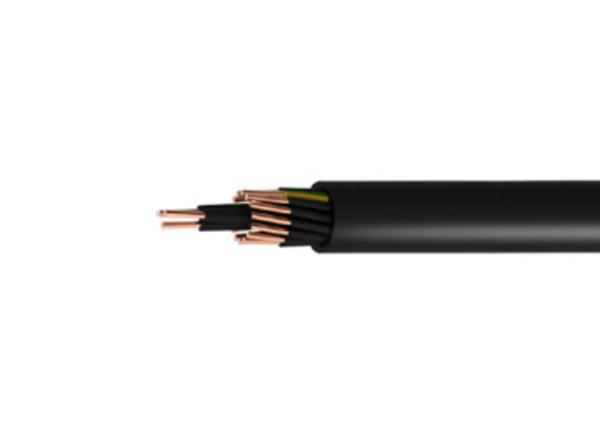

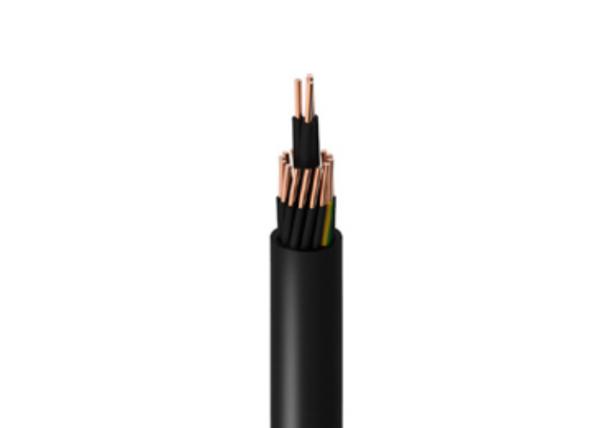

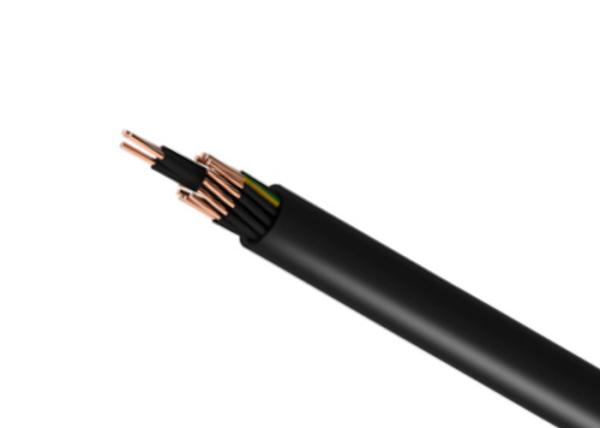

18 Core 1.5mm2 Flexible Copper Conductor Armoured Power Cables

APPLICATION

The cable is a highly flexible multicore cable for use in the connection of lighting technology and dimmer racks. The cable may be used in dry, damp and wet interiors under medium mechanical stress and for external use with UV protection. It is suitable for flexible and fixed applications.

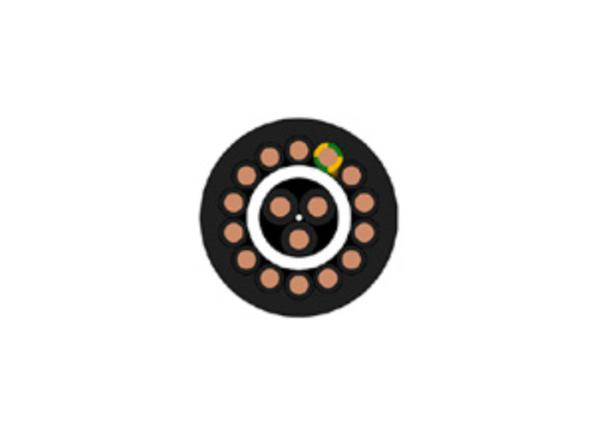

CONSTRUCTION
Conductor
Class 5 flexible copper conductor
Insulation
PVC (Polyvinyl Chloride) Type TI1
Sheath
PVC (Polyvinyl Chloride) Type TM2

CHARACTERISTICS
Voltage Rating (Uo/U)
300/500V
Test Voltage
3kV
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -5°C to +70°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 15 x overall diameter
Core Identifcation
Black numbered cores
Sheath Colour
Black

DIMENSIONS

NO. OF
CORES		 NOMINAL CROSS
SECTIONAL AREA
mm²		 NOMINAL OVERALL DIAMETER
mm		 NOMINAL WEIGHT
kg/km
18
18		 1.5
2.5		 14.5
17.9		 432
692

CONDUCTORS
Class 5 Flexible Conductor

NOMINAL CROSS
SECTIONAL AREA
mm²		 MAXIMUM DIAMETER OF WIRES
IN CONDUCTOR
mm		 MAXIMUM DC RESISTANCE
OF CONDUCTOR AT 20°C
ohms/km
1.5
2.5		 0.26
0.26		 13.3
7.98

Our Services

  1. Product consultation, analysis, design, production
  2. Provide industry information, Product Training, Assist Product Marketing
  3. Provide project support such as tender assistant, cooperate visit customers, FAT support.
  4. Complete quality system and docs available, faster lead time, good quality, Strong technical support, free samples.
  5. OEM service
  6. Other service customized by clients
