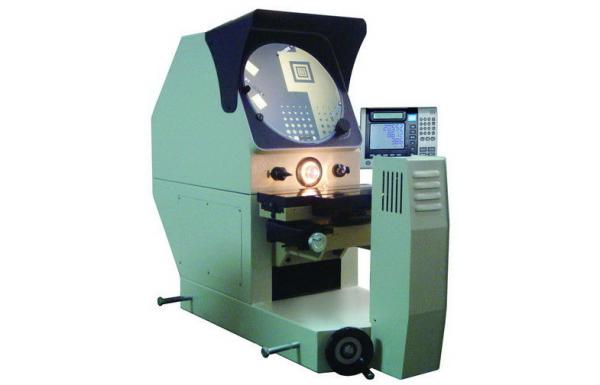

Ø300mm Digital Horizontal Profile Projector HB12-2010 with Digital Readout DP100
Ø300mm Digital Horizontal Profile Projector HB12-2010 with Digital Readout DP100
Specifications
Brand Name :
Keasson
Model Number :
HB12-2010
Certification :
CE
Place of Origin :
Dongguan/China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Travel X-Z :
200 x 100mm
Travel Y :
75mm (for focusing)
Sway Range :
±15°
Accuracy :
≤3+L/200(um)
Screen :
Effective Range ≥ Ø300
Printing :
Built-in Mini-printer
Description

Multifunctional DP100 Digital Horizontal Profile Projector with Contour and Surface illumination

Application:

The main axis of horizontal profile projector is perpendicular to the plane of the projection screen. They are mainly medium and large, and suitable for shaft parts or heavy work-pieces with large volume.

Product Features:

► 300mm diameter screen with digital protractor;

► 200X100mm precision movement work-stage;

► Work-stage sway range between +/- 15°;

► Halogen profile and fiber surface illumination adjustable;

► Geometric multifunctional data processing system available upgrade to DRO DP300;

► Built-in Mini-printer;

► Available 10x, 20x, 50x, 100x objective, over-chart and foot-switch edge detector etc.

Standard Delivery:

Digital Readout DP100 10x Objective Screen Clamp Device
Built-in Mini-printer Power Cable Operation Manual

Technical Specifications:

Reverse Image HB12-2010
Obverse Image HB12-2010Z
Metal Stage Size 408x126mm
Stage Travel: X and Z-axis 200x100mm
Stage Travel:Y-axis 75mm (for focusing)
X and Z Linear Resolution 0.0005mm
Sway Range ±15°
Accuracy ≤3+L/200(um)
Screen Diameter :Ø330mm,Effective Range ≥ Ø300(with “* ” Reticle)
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°
Digital Readout DP100 Multifunctional Data Processing System
Illumination Contour illumination:24v/150w (halogen Lamp )
Surface illumination:21v/150w (Optical Fiber)
Power Supply AC110V/60Hz; 220V/50Hz,650w
Dimension (D×W×H) 1160x600x960mm
Packing Dimension (L×W×H) 1300x880x1250mm
Instrument Gross/Net Weight 260/220kg

Optional accessories:

Measuring Software Working Cupboard ST 02 100X Objective
20x Objective 50X Objective Over-Chart ST 140
Holder Clamp V-shape Clamp Swivel Center Support
Rotary Vise SRV-01 Edge Detector SED-300 Foot-Switch ST 150
