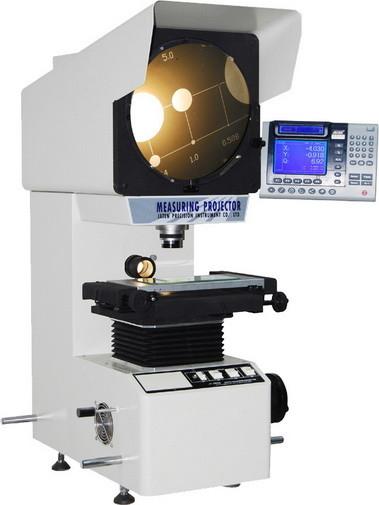

Ø300mm Digital Vertical Profile Projector VT12 Series with Digital Readout DP100
Ø300mm Digital Vertical Profile Projector VT12 Series with Digital Readout DP100
Specifications
Brand Name :
Keasson
Model Number :
VT12-1550
Certification :
CE
Place of Origin :
Dongguan/China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Travel X-Y :
150 x 50mm
Processor :
Digital Readout DP100
Travel Z :
100mm (for focusing)
Accuracy :
≤3+L/200(um)
Cooling :
Forced Cooling (3-axis-fans)
Resolution :
0.0005mm
Description

Adjustable Illumination Built-in Mini Printer 300mm Digital Vertical Profile Projector with DP100

Brief Introduction:

Profile projector is widely used for complex shape stampings, gears, cams, threads and comparing the measured contour model. It’s easy to use and highly efficient.


It is a commonly used measurement of optical instruments. Thus, profile projector is widely used in major machinery manufacturing including aviation, aerospace industry, watches and clocks, electronics, instrumentation industry, research institutes and detection metering stations at all levels and etc.

Product Features:

1, 300mm diameter screen with digital protractor;

2, Double steel guide for stage lifting focus system;

3, Halogen profile and surface illumination adjustable;

4, Geometric multifunctional data processing system upgrade to DRO DP300;

5, Built-in Mini-printer;

6, Available 10x, 20x, 50x, 100x objective, rotary table, edge detector, etc.

Main Standard Delivery:

Digital Readout DP100 VX12-10x Objective Screen Clamp Device
Built-in Mini-printer Transmitted lens Operation Manual

Optional accessories:

Measuring Software Rotary Table RT1 Rotary Table RT2 Printer Paper
VX12-20x Objective VX12-50X Objective VX12-100X Objective Edge Detector SED-300
Holder Clamp V-shape Clamp Swivel Center Support Standard Block ST120
Working Cupboard ST 02 Over-Chart ST 140 Foot-Switch ST 150

Technical specifications:

Reverse Image VT12-1550 VT12-1010 VT12-1510 VT12-2010
Obverse Image VT12-1550Z VT12-1010Z VT12-1510Z VT12-2010Z
Metal Stage Size 340x152mm 230x170mm 340x170mm 350x170mm
Glass Stage Size 196x96mm 145x120mm 196x120mm 246x120mm
Stage Travel:X and Y-axis 150x50mm 100x100mm 150x100mm 200x100mm
Stage Travel:Z-axis 100mm (for focusing) 100mm (for focusing) 100mm (for focusing) 100mm (for focusing)
Accuracy ≤3+L/200(um) ≤3+L/200(um) ≤3+L/200(um) ≤3+L/200(um)
Resolution of X and Y-scale 0.0005mm 0.0005mm 0.0005mm 0.0005mm
Screen Diameter :Ø312mm,Effective Range ≥ Ø300(with “* ” Reticle)
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°
Digital Readout DP 100 Multifunctional Data Processing System
Illumination Surface and Contour Illumination:24v/150w halogen lamp (adjustable);
Cooling System Forced Cooling (3-axis-fans)
Power Supply AC110V/60Hz; 220V/50Hz,650w
Dimension (L×W×H) 780x530x1150mm 780x530x1150mm 780x530x1150mm 780x530x1150mm
Packing Dimension 990x765x1340mm 990x765x1340mm 990x765x1340mm 990x765x1340mm
Gross/Net weight 200/150kg 210/155kg 225/165kg 220/170kg
