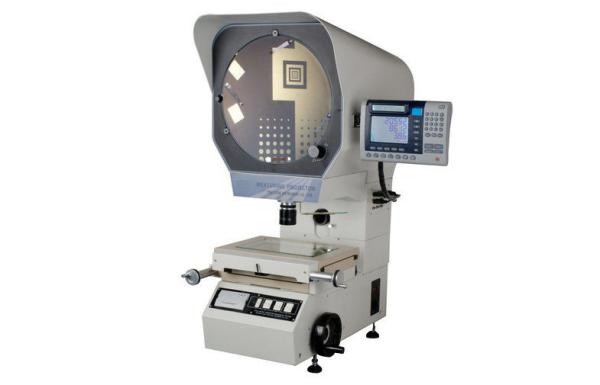

Ø400mm Digital Vertical Profile Projector VB16 Series with Digital Readout DP300
Ø400mm Digital Vertical Profile Projector VB16 Series with Digital Readout DP300
Specifications
Brand Name :
Keasson
Model Number :
VB16-2515
Certification :
CE
Place of Origin :
Dongguan/China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Focus :
Projector Body Lifting
Travel X-Y :
250 x 150mm
Accuracy :
≤3+L/200(um)
Printer :
with Built-in Printer
Digital Readout :
DP300
Illumination :
24v/150w halogen lamp
Description

Ø400mm Digital Vertical Profile Projector VB16 Series with Digital Readout DP300

Product Features:

1, 400mm diameter screen with digital protractor;

2, Projector body lifting system to focus;

3, 250x150mm precision movement work-stage, 300x200mm optional;

4, Halogen profile and surface illumination adjustable;

5, Geometric multifunctional data processing system upgrade to DRO DP300;

6, Built-in Mini-printer;

7, Available 10x,20x,50x objective, rotary table, foot-switch, edge detector, etc.

Technical Specifications :

Reverse Image VB16-2515 VB16-3020
Obverse Image VB16-2515Z VB16-3020Z
Metal Stage Size 408x308mm 408x308mm
Glass Stage Size 306x196mm 306x196mm
Stage Travel: X and Y-axis 250x150mm 250x150mm
Stage Travel: Z-axis 100mm (for focusing) 100mm (for focusing)
Accuracy ≤3+L/200(um) ≤3+L/200(um)
Resolution of X and Y-scale 0.0005mm 0.0005mm
Screen Diameter :Ø435mm,Effective Range ≥ Ø400(with “* ” Reticle)
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°
Digital Readout DP300 Multifunctional Data Processing System
Illumination Surface and Contour Illumination:24v/150w halogen lamp (adjustable);
Cooling System Forced Cooling (3-axis-fans)
Power Supply AC110V/60Hz; 220V/50Hz,650w
Dimension (D×W×H) 760x530x1100mm 760x530x1100mm
Packing Dimension (L×W×H) 1540x790x1500mm 1540x790x1500mm
Instrument Gross/Net Weight 260/220kg 260/220kg

Standard Delivery:

Digital Readout DP300 10x Objective Screen Clamp Device
Built-in Mini-printer Transmitted lens Operation Manual

Optional accessories:

Measuring Software Rotary Table RT2 Rotary Table RT3
20x Objective 50X Objective Printer Paper
Holder Clamp V-shape Clamp Swivel Center Support
Working Cupboard ST 02 Foot-switch ST150 Standard Block ST120
