17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks
17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks
17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks
17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks
17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks
17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks
17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks
17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks
Specifications
Brand Name :
KeeTouch
Certification :
FCC, CE, CB, RoHS,UL,BIS
Place of Origin :
Shenzhen, China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
Carton
Display Type :
5:4 Ratio 17" TFT-LCD
Hardness :
6H
Resolution :
1280×1024 @ 60Hz
Light Transmittance :
≥83%
Support System :
XP,WIN7,WIN8,WIN10,Linux,Android
Contrast Ratio (Typ.) :
1000:1
Operating Temp. :
0～50°C
Operating RH :
20%～80%
Storage Temp. :
-20～60°C
Storage RH :
10%～90%
Description

17 Inch PCAP Touch Monitor 1280x1024 Resolution for Kiosks

Description of PCAP Touch Monitor

This PCAP touch monitor delivers below main features: 1280*1024 resolution, 1000:1 contrast ratio, IP65 front frame waterproof, anti-vandal and dust-proof with wide viewing angle. The PCAP touch monitor comes with VGA and DVI interfaces for your use, USB for touch. Also, with professional R&D department, OEM and ODM services are available. And other sizes can be offered (7’’- 43’’).

Specification of PCAP Touch Monitor

Complete Machine
Model No. KOT-170P-010(KOT-0170U-CA4P)
Series OT
Display Type 5:4 Ratio 17" TFT-LCD
Active Area 337.9*270.3(mm)

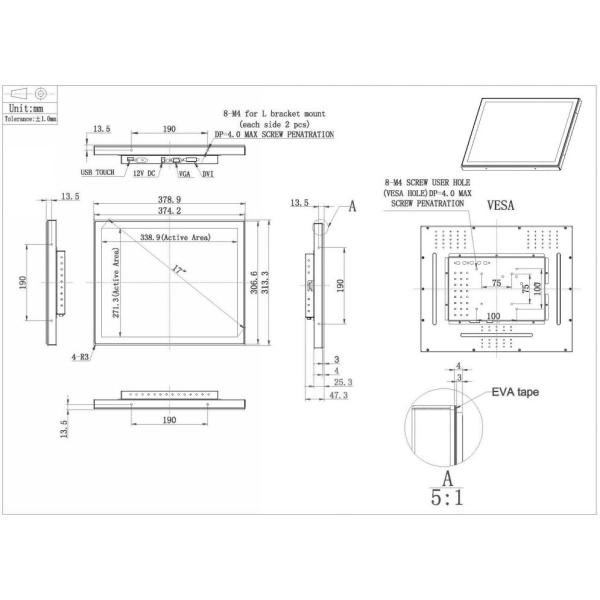

Monitor Dimensions (W*H*D)
378.9*313.3*47.3(mm)
Suggested Resolution 1280*1024 @ 60Hz
Support Colors 16.7M
Brightness (Typ.) Pure LCD Panel 250cd/m2
With Touch Monitor 212cd/m2
Response Time (Typ.) 5ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 85°/85°
Vertical(up/down) 80°/80°
Contrast Ratio (Typ.) 1000:1
Video Input VGA/DVI
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. 0～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF ≥30,000 Hours
LED Back Light Life (Typ.) ≥30,000 Hours
Weight(N.W/G.W)
4.1Kg(1pcs)/9.85Kg(2pcs in one package)
Package dimensions 466*185*403(mm)(2 pcs in one package)
Power Consumption Standby Power: ≤0.82W / Operating Power: ≤7.3W
Mount Interface

1.VESA 75mm

2.Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, UL, FCC, CE, CB, RoHS
Regular Warranty 1 year

Touch Screen
Touch Type 17" Capacitive touch screens
Touch input USB
Response Time ≤10ms
Hardness 6H
Light Transmittance ≥83%
Support System XP,WIN7,WIN8,WIN10,Linux,Android
Active Area 340.92*273.34(mm)
Thickness 3.9±0.3(mm)
Touch Test ≥50,000,000 次
Input Voltage DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

Peep-proof protection film
Type Peep-proof protection film
Guard against peep angle Horizontal(left/right) 40°±5°
Thickness 570±50(um)
Light Transmittance ≥60%±5%

17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks

Applications

  • Retail
  • Gaming
  • Kiosk
  • self-service
  • Finance
  • Transit
  • Conference
  • Education
  • Healthcare
  • public service
  • e-commerce
  • Hotels
  • restaurants

17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks

Advantages of PCAP Touch Monitor

1. High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.

2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.

3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.

4. Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.

5. Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.

FAQ:

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
