16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor
16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor
16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor
16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor
16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor
16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor
16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor
16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-320P-025(KOT-0320U-CA4PH)
Certification :
CCC, UL, FCC, CE, CB, RoHS
Place of Origin :
Shenzhen，China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
carton
Series :
OT
Display Type :
16:9 Ratio 32" TFT-LCD
Suggested Resolution :
1920x1080 @ 60Hz
Agency approvals :
CCC, ETL, FCC, CE, CB, RoHS
Response Time :
≤10ms
Support System :
XP,WIN7,WIN8,WIN10,Linux,Android
Light Transmittance :
≥83%
Power Consumption :
≤150W/190W/240W
Description

32 Inch High Brightness Touch Monitor 16:9 Ratio Anti-vandal Anti-glare

Description of High Brightness Touch Monitor

This 32 inch high brightness interface touch screen delivers high durability, accuracy and multi-touch support, which can be used normally in very harsh environments. The high brightness touch monitor is a type of display that is designed to produce brighter and clearer images compared to traditional displays. It is an anti-glare, dust-proof, vandal-proof and IP65 front frame waterproof high brightness touch monitor. Also, full sizes (7’’-43’’) can be offered.

High Brightness Touch Monitor Specifications

Complete Machine
Model No. KOT-0320U-CA4PH (P/N:KOT-320P-025)
Series OT
Display Type 16:9 Ratio 32" TFT-LCD
Active Area 698.4*392.85 (mm)
Monitor Dimensions (W*H*D) 780*474*84.2(mm)
Suggested Resolution 1920x1080 @ 60Hz
Support Colors 16.7M
Brightness (Typ.) Pure LCD Panel 1000cd/m2 , 1500cd/m2 , 2000cd/m2
With Touch Monitor 850cd/m2 , 1250cd/m2 , 1650cd/m2
Response Time (Typ.) 6.5ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 89°/89°
Vertical(up/down) 89°/89°
Contrast Ratio (Typ.) 4000:1(Typ.)/3000:1(Min.)
Video Input VGADVIHDMI
Frequency (H/V) 60～73KHz / 47～63Hz
Power Supply

Type: External brick

Display voltage: DC 24V/ 10A

Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. 0～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF 30,000 Hours
LED Back Light Life (Typ.) 30,000 Hours
Power Consumption ≤150W/190W/240W
Mount Interface Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Regular Warranty 1 year

Touch Screen
Touch Type 32" Capacitive touch screens
Touch input USB
Response Time ≤10ms
Hardness ≥6H
Light Transmittance ≥83%
Touch Test ≥50,000,000 times
Input Voltage DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

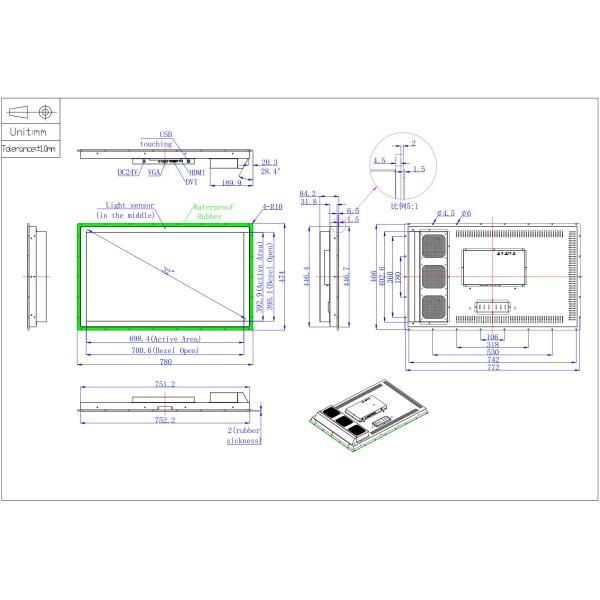

High Brightness Touch Monitor lcd touchscreen Mechanical Dimensions

16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor

Products Applications

High Brightness 10 point multi touch screen are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor

Why choose us?

1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.

2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.

3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.

4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.

FAQ:

1. What package do you provide for the display touch screen?

Our package usually is carton.

2. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.

3. What are the shipping ways?

We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.

4. Do you give any discount for the high brightness touch monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
