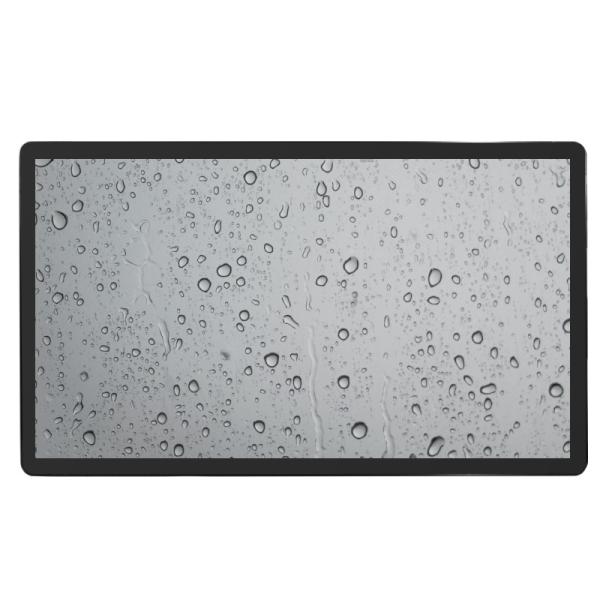

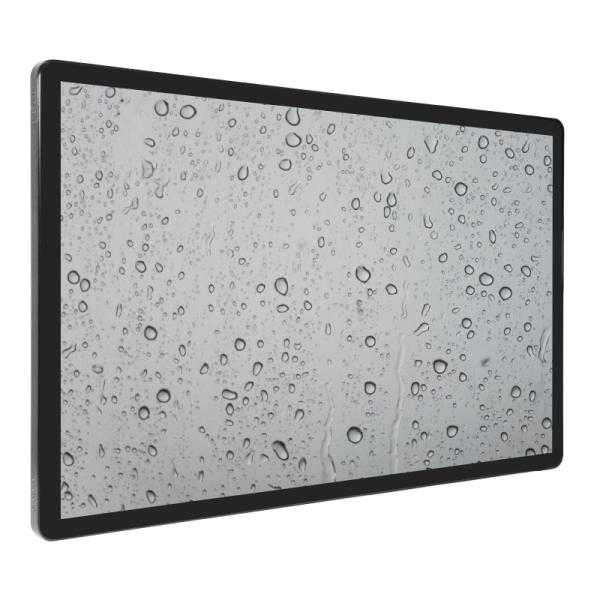

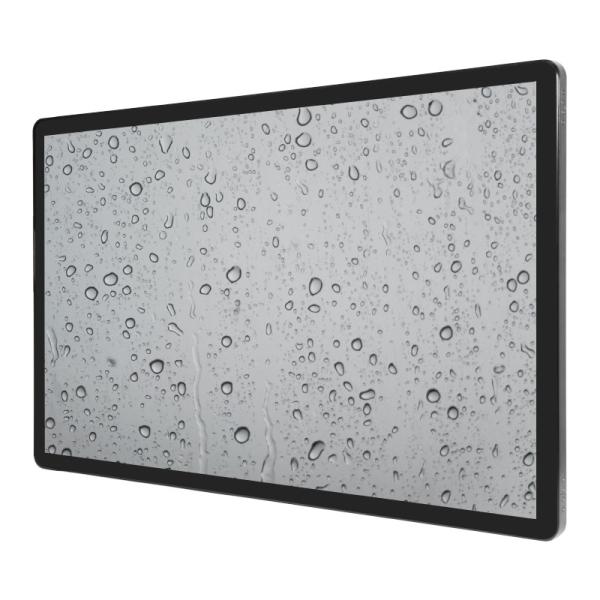

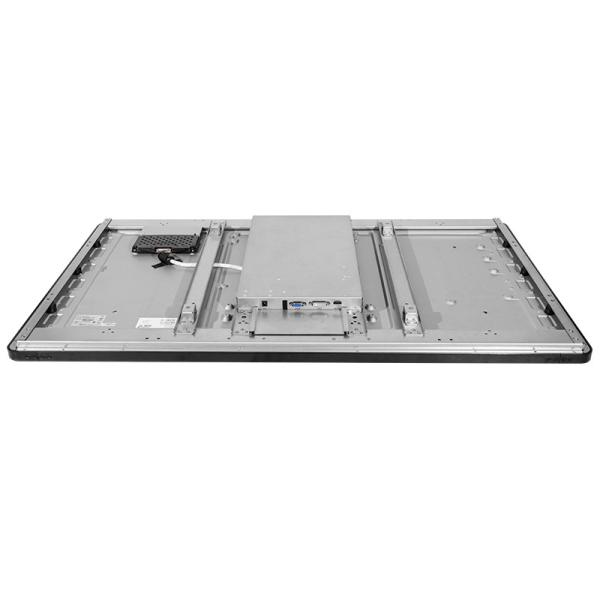

43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display
43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display
43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display
43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display
43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display
43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display
43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display
43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-0430U-CA4P(P/N:KOT-430P-004)
Certification :
FCC, CE, CB, RoHS,UL,BIS
Place of Origin :
Shenzhen, China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
Carton
Response Time (Typ.) :
6.5ms
Display Type :
16:9 Ratio 43" TFT-LCD
Support Colors :
16.7M
Video Input :
VGA DVI HDMI
Contrast Ratio (Typ.) :
3000:1
Active Area :
942.9*531.25 (mm)
Pure LCD Panel :
380cd/m2
Frequency (H/V) :
30～80KHz / 60～75Hz
Product name :
PCAP Touch Monitor
Description

43 Inch multi touch capacitive screen IP65 Waterproof Open Frame Touch Display

Description of multi touch capacitive screen

This 43 inch PCAP touch monitor adopts KeeTouch Projected Capacitive touch technology with high resolution and ideal touch experience. With PCAP multi touch, high sensitive and fast response. This PCAP touch monitor is industrial grade, with high quality image, durable and fashionable with dust-proof, vandal-proof and IP65 waterproof functions. Moreover, other sizes (7’’ - 43’’ ) can be offered for your option.

Specification of multi touch capacitive screen

Complete Machine
Model No. KOT-0430U-CA4P(P/N:KOT-430P-004)
Series OT
Display Type 16:9 Ratio 43" TFT-LCD
Active Area 942.9*531.25 (mm)
Monitor Dimensions (W*H*D) 1004*592*64.6 (mm)
Suggested Resolution 1920x1080 @ 60Hz
Support Colors 16.7M

Brightness (Typ.)

 Pure LCD Panel 380cd/m2
With Touch Monitor 320cd/m2
Response Time (Typ.) 6.5 ms

Viewing Angle(Typ.at CR＞10))

 Horizontal(left/right) 89°/89°
Vertical(up/down) 89°/89°
Contrast Ratio (Typ.) 3000:1
Video Input VGA DVI HDMI
Frequency (H/V) 30～80KHz / 60～75Hz

Power Supply

Type: External brick

Display voltage: DC 24V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

Environment

 Operating Temp. -10～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF 50,000 Hours
LED Back Light Life (Typ.) 50,000 Hours

OSD Control

 Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, ETL, FCC, CE, CB, RoHS
Touch Type 43" Capacitive touch screens, antiglare and tempered type
Touch input USB
Support System XP,WIN7,WIN8,WIN10,Linux,Android
Regular Warranty 1 year

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

PCAP Touch Monitor Mechanical Dimensions

Why choose us?

1. We are a leading provider of industrial grade touch products and touch solutions for over 17 years.

2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.

3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.

4. Professional after-sales team at any time to provide services to customers.

Applications

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display

FAQ

1.Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.

2. What is your payment method?

We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )

3. What is your delivery time for the PCAP touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
